Technogym CROSS FORMA - 4 Accessories; Cardio Theater Connection; Pc Link for Programming

CROSS FORMA: Service & Maintenance Manual - rev. 2.1
Page 4.1

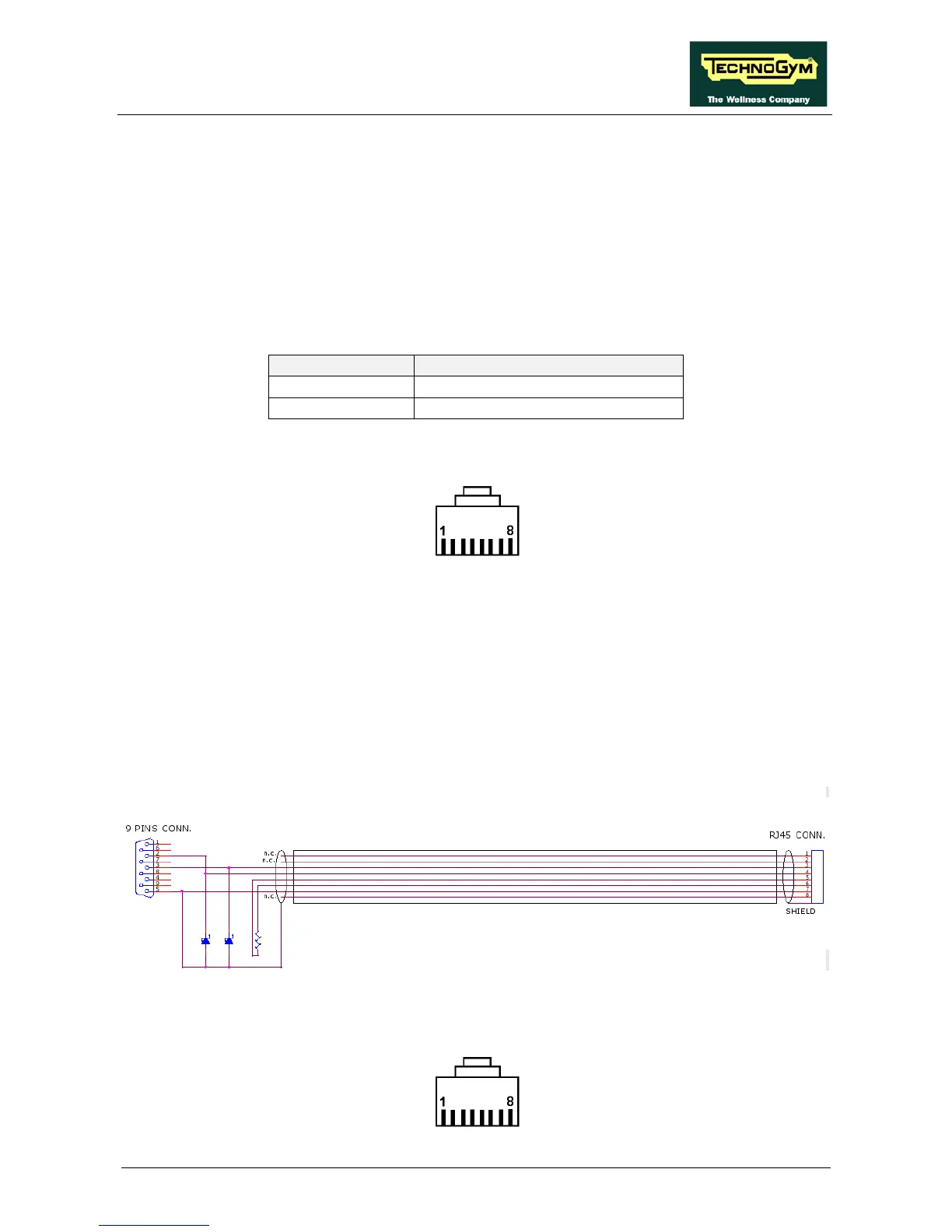

4. ACCESSORIES
4.1. CARDIO THEATER CONNECTION
The machine can be connected to the CardioTheater by means of the RJ45 connector on the CSafe
board. The CardioTheater unit must be provided with a power cable having the following pin-out:
RJ45 Connector
Signal
5
+5 Vdc
7
Ground
On the RJ45 connector, which is illustrated below, pin 1 is the one farthest left when the locking tab
is facing upward.
The remaining pins are not connected.
4.2. PC LINK FOR PROGRAMMING
The machine can be connected to a PC for programming by means of the RJ45 connector on the
CSafe board.
The cable to use (code 0WC00434AB) must be wired as follows:
On the RJ45 connector, which is illustrated below, pin 1 is the one farthest left when the locking tab
is facing upward.
