CROSS FORMA: Service & Maintenance Manual - rev. 2.1
Page 7.8

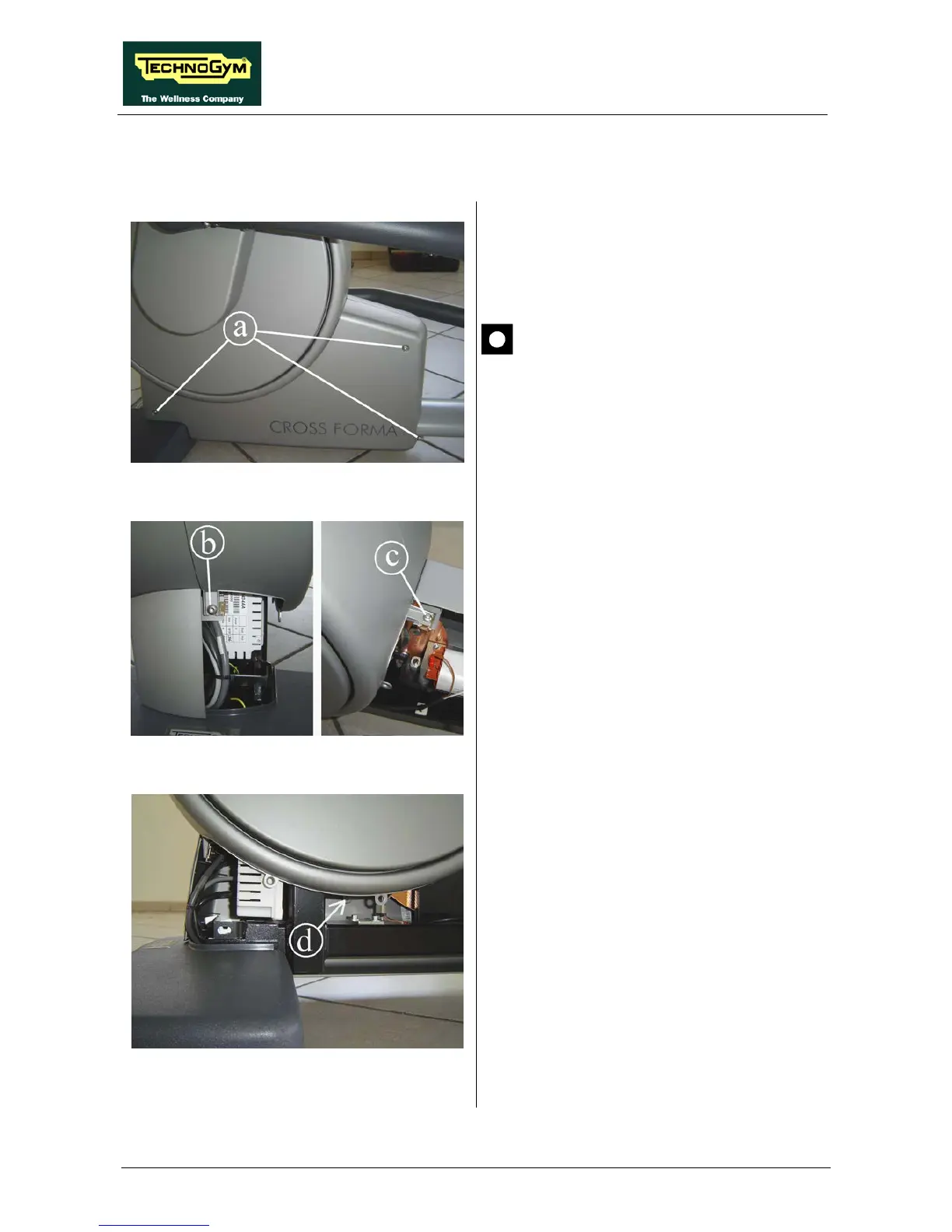

7.6. DISASSEMBLING THE GUARDS
Figure 7.6-1
1. On the right side of the machine , back of the
3 screws a using a 4-mm hex wrench.
During reassembly, lock down the
screws “a” using a torque wrench set for
2 Nm.
2. Remove the lower right guards.
Figure 7.6-2
3. Back off the screws b and c using a 4-mm
hex wrench
, respectively in the rear and front
side of the lower left guard.
Figure 7.6-3
4. Back off the screw d using a medium Phillips
screwdriver.
5. Remove the lower left guard.
Continued on following page →
