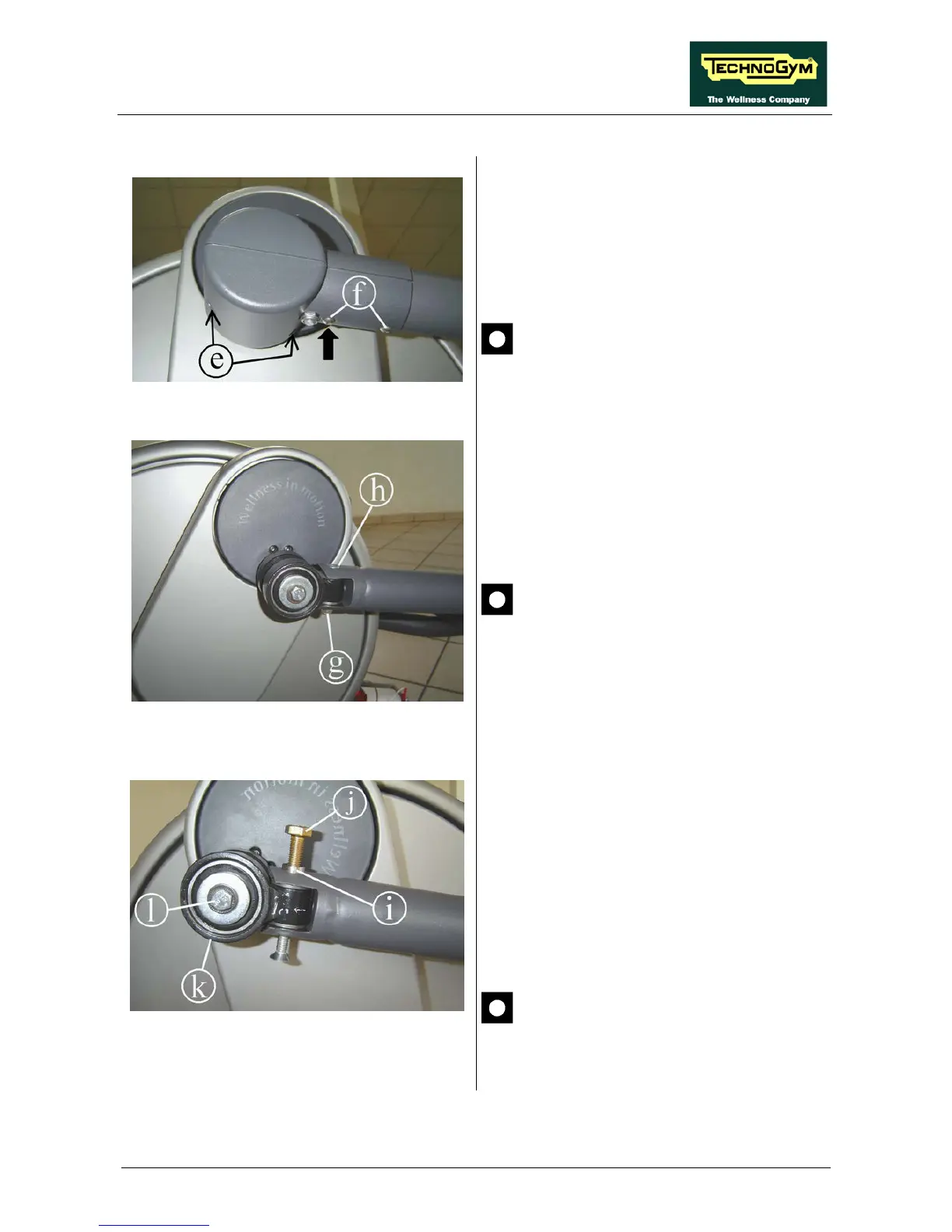

Figure 7.6-4
On both sides of the machine:
6. Back off the screws e
using a medium
Phillips screwdriver and remove th
e upper
casing.
7. Back off the 2 screws f using a 3-
mm hex
wrench.
During reassembly, lock down the
screws “f” using a torque wrench set for
3 Nm and place the shorter screw where
indicated by the arrow.
Figure 7.6-5
8. Back off the nut g using a 13-mm wrench.
9. Back off the screw h using a 6-
mm hex
wrench.
During reassembly, lock down the screw
“h” using a torque wrench set for 31
Nm.
Figure 7.6-6
10. Pull out the threaded pin i using the screw j,
supplied with in the tool set of the machine:
• Screw the bolt j in the top side of the pin;
• Lock down the screw h
backed off
previously into the lower part of pin i until
it comes into contact with screw j,
pushing the pin out of its seat.
11. Remove the lever from the joint.
12. Back off the screw l using a 13-mm wrench.
13. Remove the joint k.
During reassembly, lock down the screw
“l” using a torque wrench set for 30 Nm.
Continued on following page →
