Technogym CROSS FORMA - Disassembling the Tidy Rack

CROSS FORMA: Service & Maintenance Manual - rev. 2.1
Page 7.7
7.5. DISASSEMBLING THE TIDY RACK

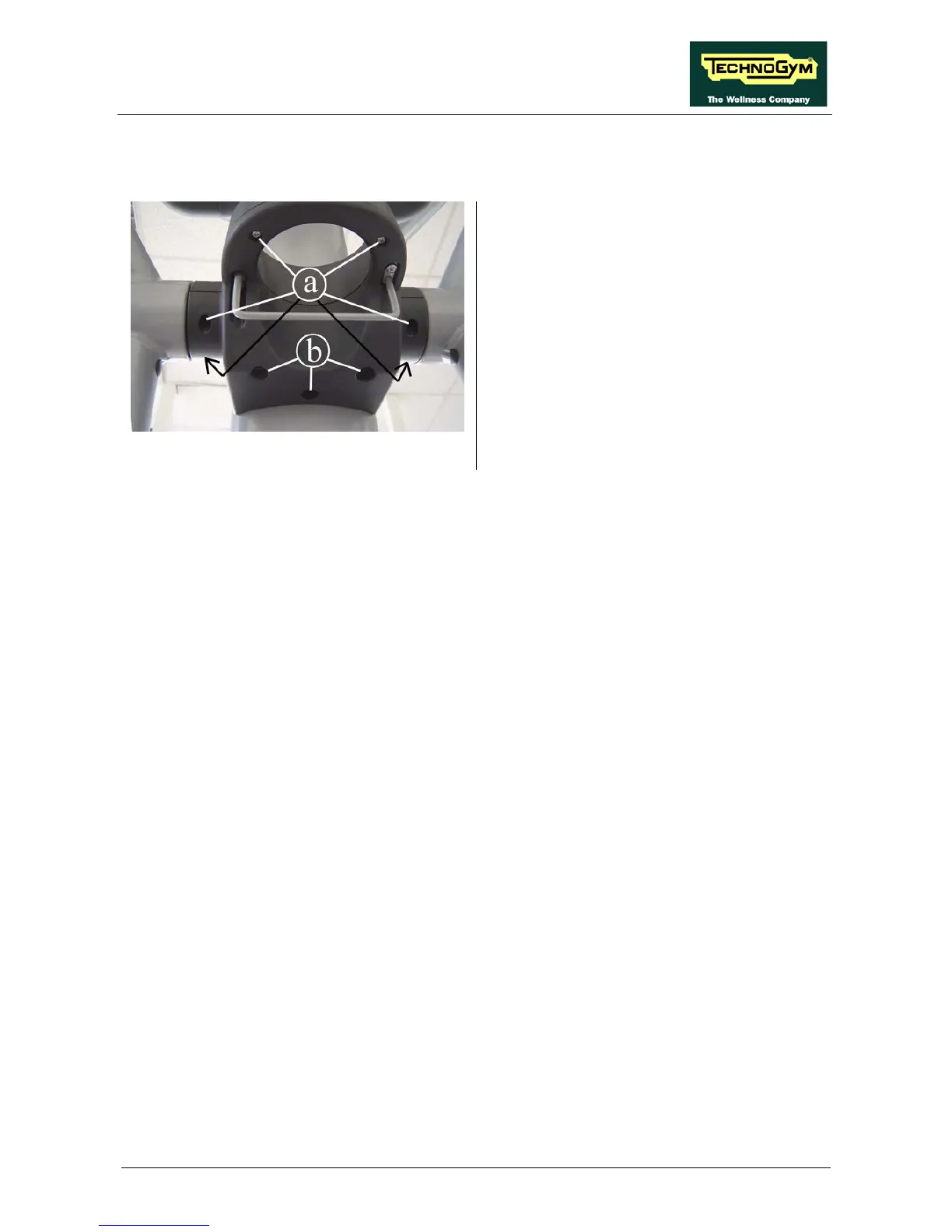

Figure 7.5-1
1. Back off the 5 screws a
using a medium
Phillips screwdriver.
2. Remove the upper casing of the tidy rack.
3. Back off the 3 screws b using a 3-
mm Allen
wrench.
4. Remove the lower casing.
To assemble the tidy rack, carry out the above
steps in reverse order.
