Technogym CROSS FORMA - Disassembling the Belt

CROSS FORMA: Service & Maintenance Manual - rev. 2.1
Page 7.18
7.10. DISASSEMBLING THE BELT

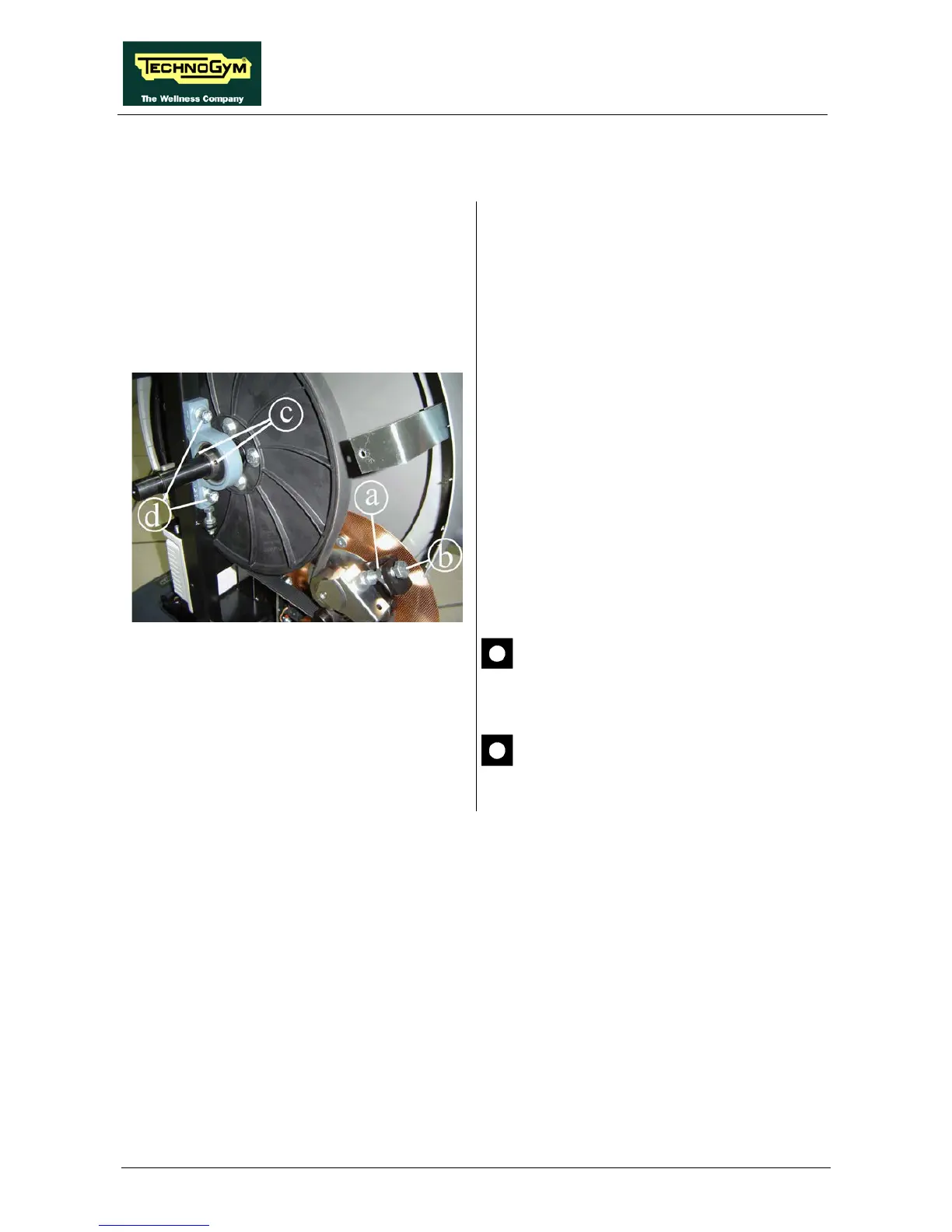

Figure 7.10-1
Carry out the procedure described in paragraph
7.6. “Disassembling the guards
” only
disassembling the right casing, 1. 7.7.
“Disassembling the levers” and 7.8.
“Disassembling the crank belt”.
1. Back off the counternut a using a 17-mm
wrench.
2. Back off the screw b using a 17-
mm wrench,
to loose the tension of the belt.
3. Back off the 2 grub screws c using a 3-mm
hex wrench.
4. Back off the 2 screws d using an 8-
mm hex
wrench, lock down the nuts on the opposite
side using a 17-mm wrench.
5. Remove the bearing from the shaft.
6. Remove the belt from the 2 pulleys.
To reassemble the belt, follow the disassembly
instructions in reverse order.
During reassembly, lock down the
screws “d” using a torque wrench set for
44 Nm.
After completing this operation, adjust
the belt tension as described in
paragraph 8.1. “Belt tension”.
