Technogym CROSS FORMA - Display Circuit Board Removal

CROSS FORMA: Service & Maintenance Manual - rev. 2.1
Page 7.3
7.2. DISASSEMBLING THE CIRCUIT BOARDS ON THE
DISPLAY

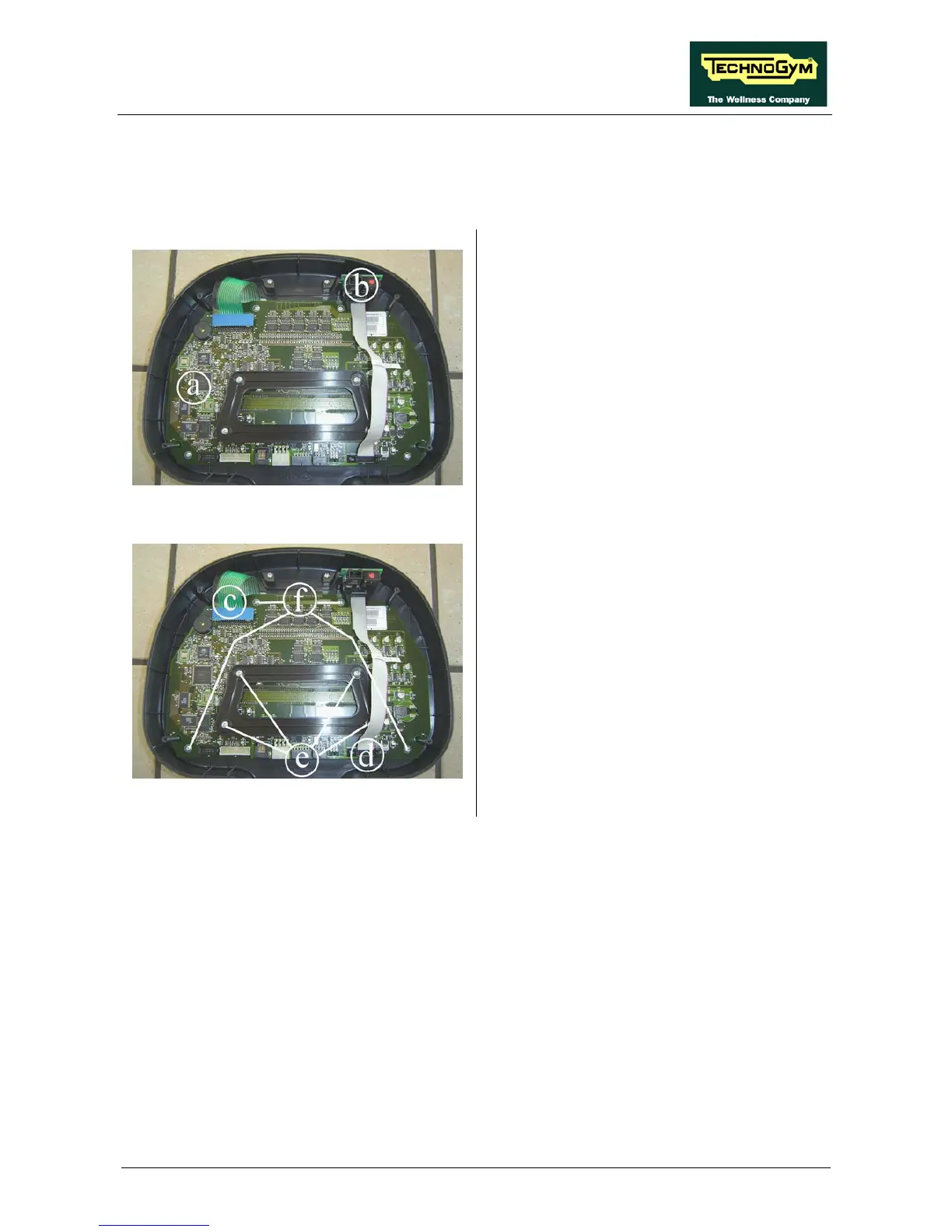

Figure 7.2-1
Carry out the procedure
described in paragraph
7.1. “Disassembling the display”.
Then place the display on a work bench. It is
now possible to disassemble its five circuit
boards:
• The DISPLAY board a;
• The CSafe board b.
Figure 7.2-2
DISPLAY board a:
1. Unplug the connectors c and d.
2. Back off the 4 screws e
, using a medium
Phillips screwdriver.
3. Back off the 4 screws f
, using a small
Phillips screwdriver.
4. Remove the circuit board.
CSafe board b:
1. Unplug the connector d.
2. Remove the circuit board.
