7.17. DISASSEMBLING THE REAR PLATFORM

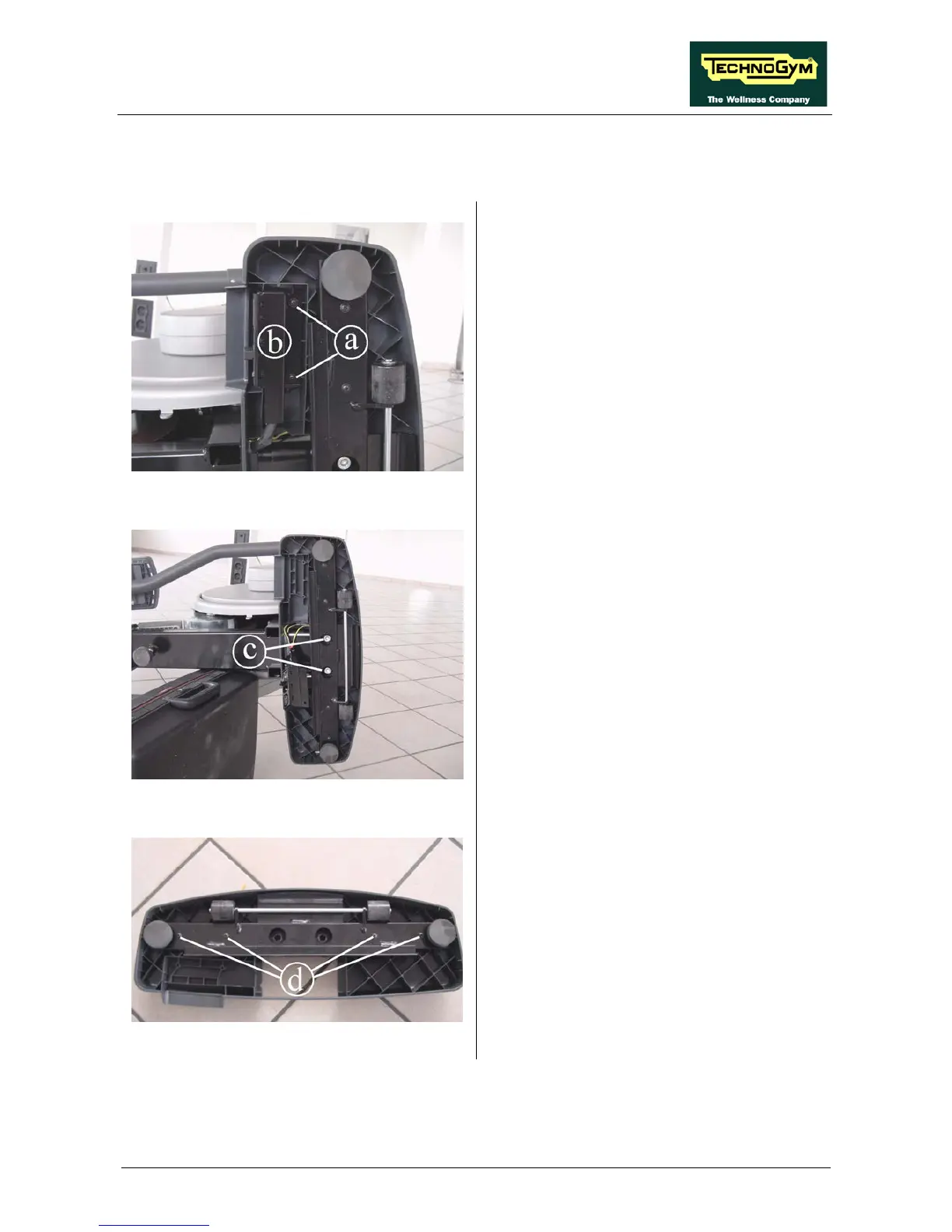

Figure 7.17-1
Disassembling the platforms (this procedure
applies for both platforms):
1. Back off the 2 screws a
using a medium
Phillips screwdriver, to disconnect the power
entry module plug b from the platform.
Figure 7.17-2
2. Back off the 2 screws c using an 8-
mm hex
wrench.
Figure 7.17-3
3. Back off the 4 screws d
using a medium
Phillips screwdriver
To reassemble the rear platform, carry out the
above steps in reverse order.
