6.7. THE SPEED SIGNAL IS INCORRECT
The speed signal is not correct if:
1. The disk of the Electromagnetic Brake is incorrectly mounted on the flywheel;
2. The special speed measurement screws are missing or badly assembled (only for
Crossover)
3. The Speed Sensor (for the mains-powered boards) and the Generator (for the self-powered
boards) is defective or badly assembled;
4. the Brake Board was not programmed correctly with the sequence of:
a. Firmware (FW),
b. Brake Table;
c. Standard Settings.
5. The Brake Board is faulty.
YES
YES
YES
Does the speed sensor send
the correct signal to the
Brake Board?
3
Reassembly in the
right way
NO
Replace the
Brake Board

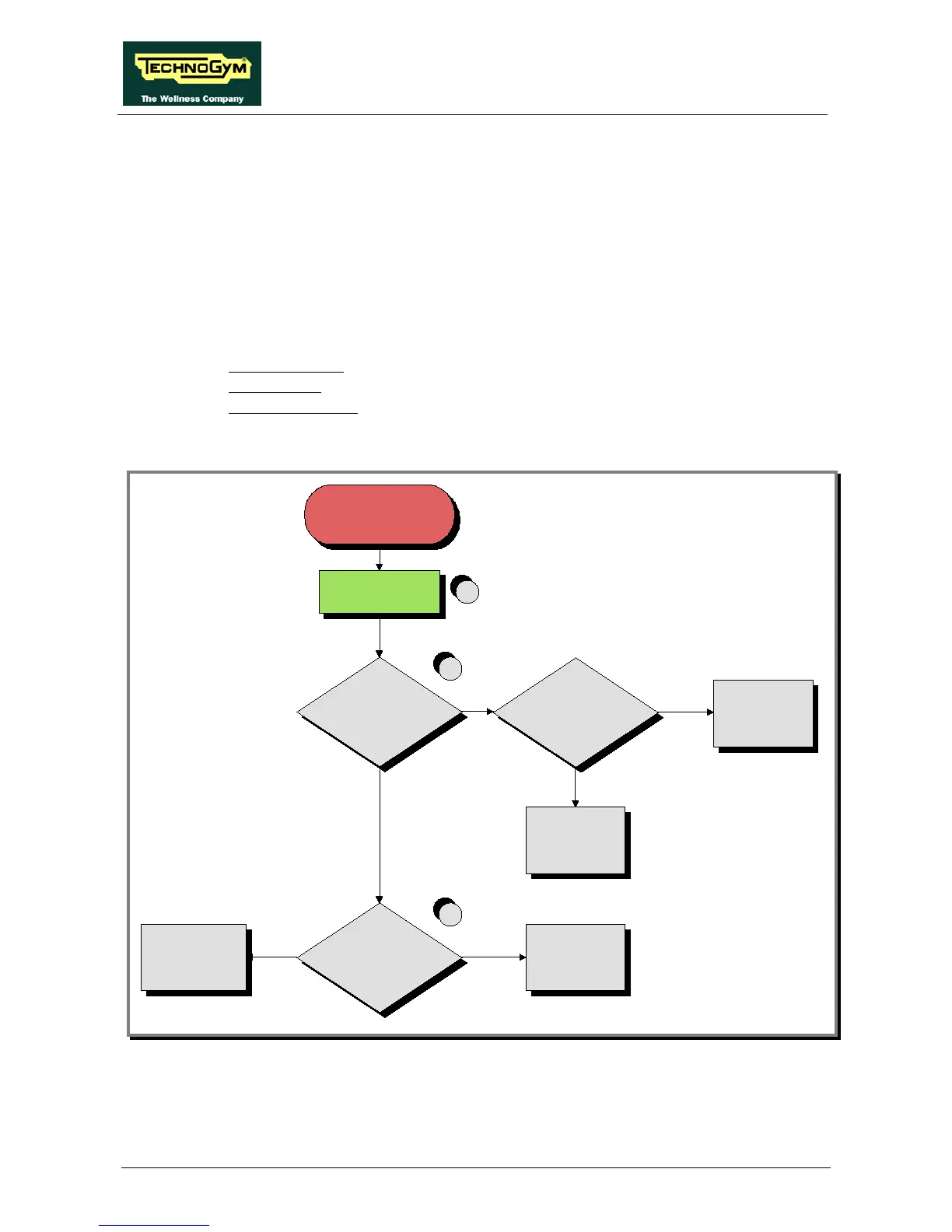

THE SPEED SIGNAL
IS INCORRECT
1
Update the Low Kit SW.
Is the speed signal correct?
Instal the latest version of
Firmware (FW), Brake
Table and carry out the
Standard Setting
NO
Carry out the
Standard Setting procedure
2
Are the detection screws
present and/or assembled in
the right way?
Replace the
speed sensor
(generator on SP models)
NO
YES
