8. ADJUSTMENTS
8.1. BELT TENSION

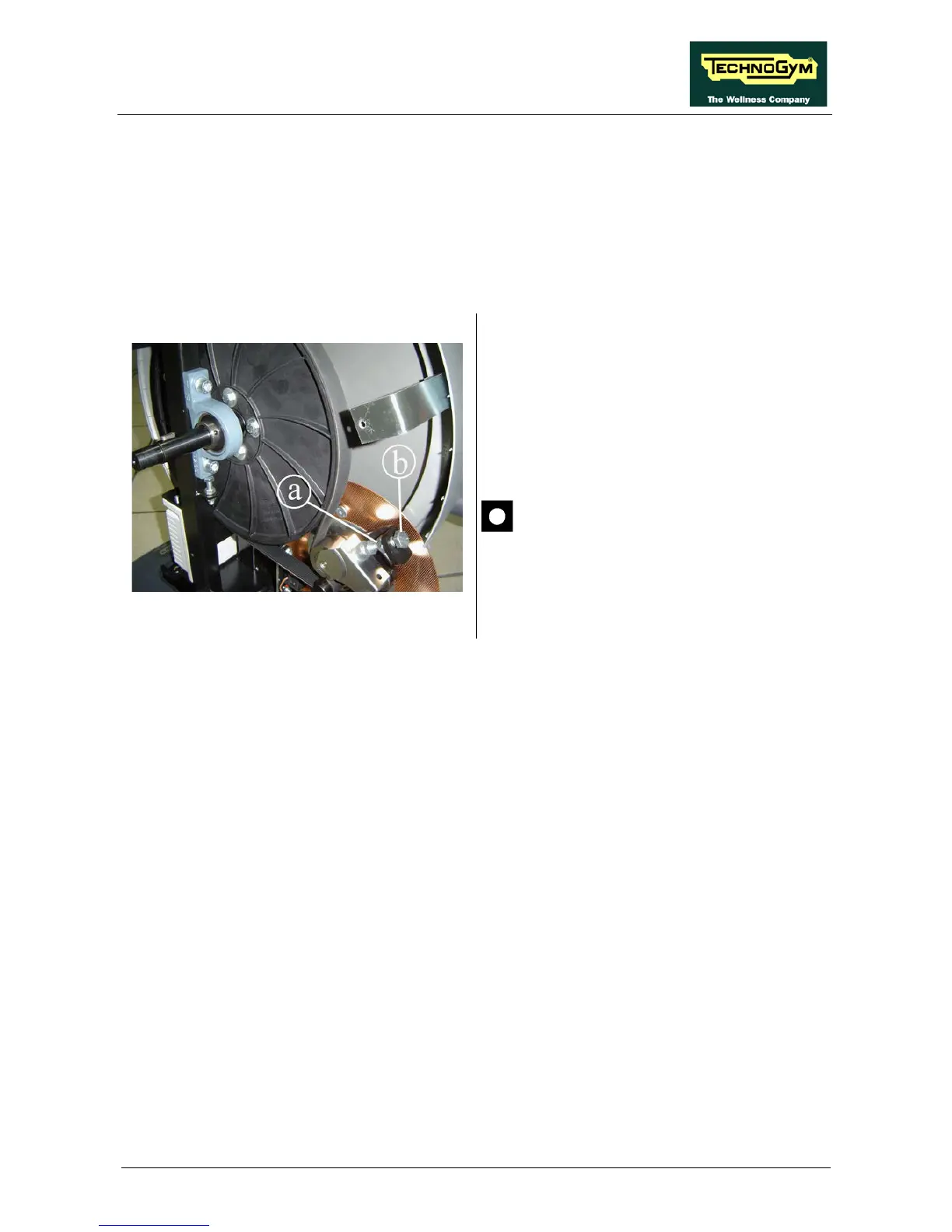

Figure 8.1-1
Carry out the procedure described in paragraph
7.6. “Disassembling the guards
” disassembling
only the right guards.
1. Back off the counter nut a.
2. Act on the screw b
to adjust the tension of
the belt.
3. Lock down the counter nut again.
The correct belt tension is 220±5 Hz.
If there is no instrument available for
measuring the voltage frequency in Hz,
che
ck that the belt does not slip during
maximum braking at the highest effort
level.
