4.3. PROGRAMMING PLUG FOR CSAFE BOARD
When programming the machine using the 0WC00434AA connecting cable described above, it is
necessary to fit plug (code 0WC00638AA) into the free RJ-45 port on one side of the front
platform, to avoid any type of interference during the operation.

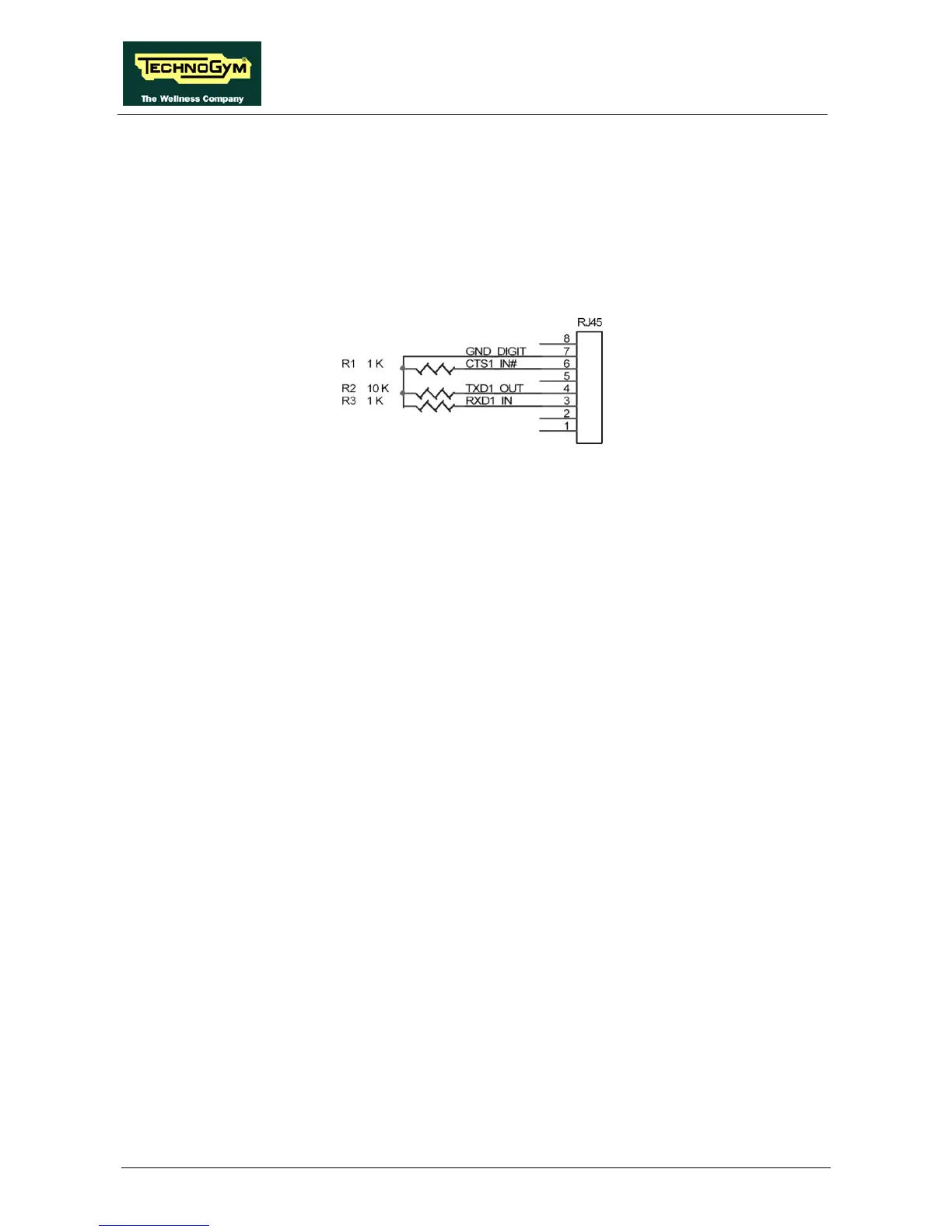

The wiring diagram of the RJ-45 plug is as follows:
