7.9. DISASSEMBLING THE BRAKE BOARD

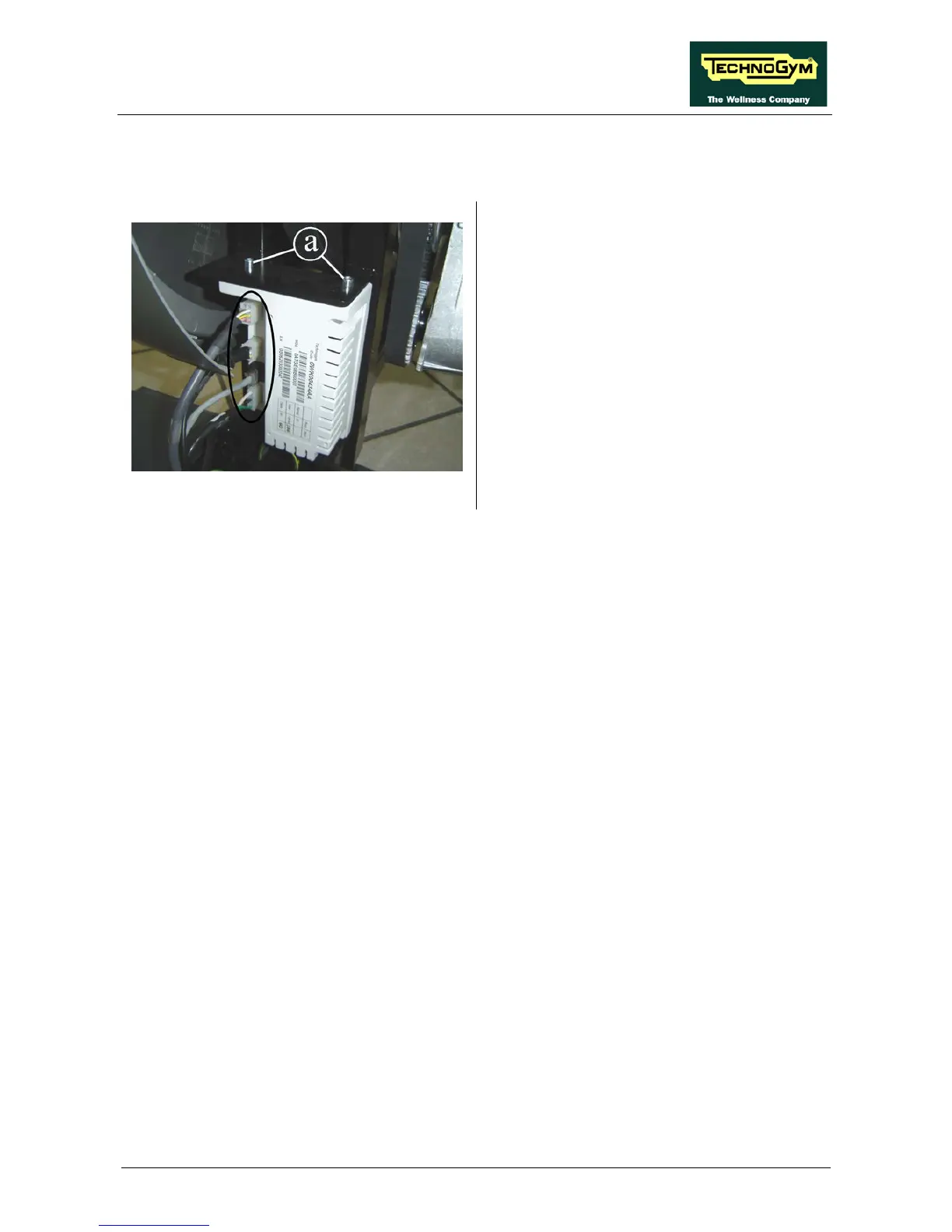

Figure 7.9-1
Carry out the procedure described in paragraph
7.6. “Disassembling the guards
” only
disassembling the right casing.
1.
Unplug the connectors indicated in the figure
to side.
2. Back off the two screws a using a 4-mm
Allen wrench.
3. Remove the brake board.
To reassemble the brake board, carry out the
above steps in reverse order.
