Technogym CROSS FORMA - Setting Speed Sensor Position

CROSS FORMA: Service & Maintenance Manual - rev. 2.1
Page 8.2
8.2. SPEED SENSOR POSITION

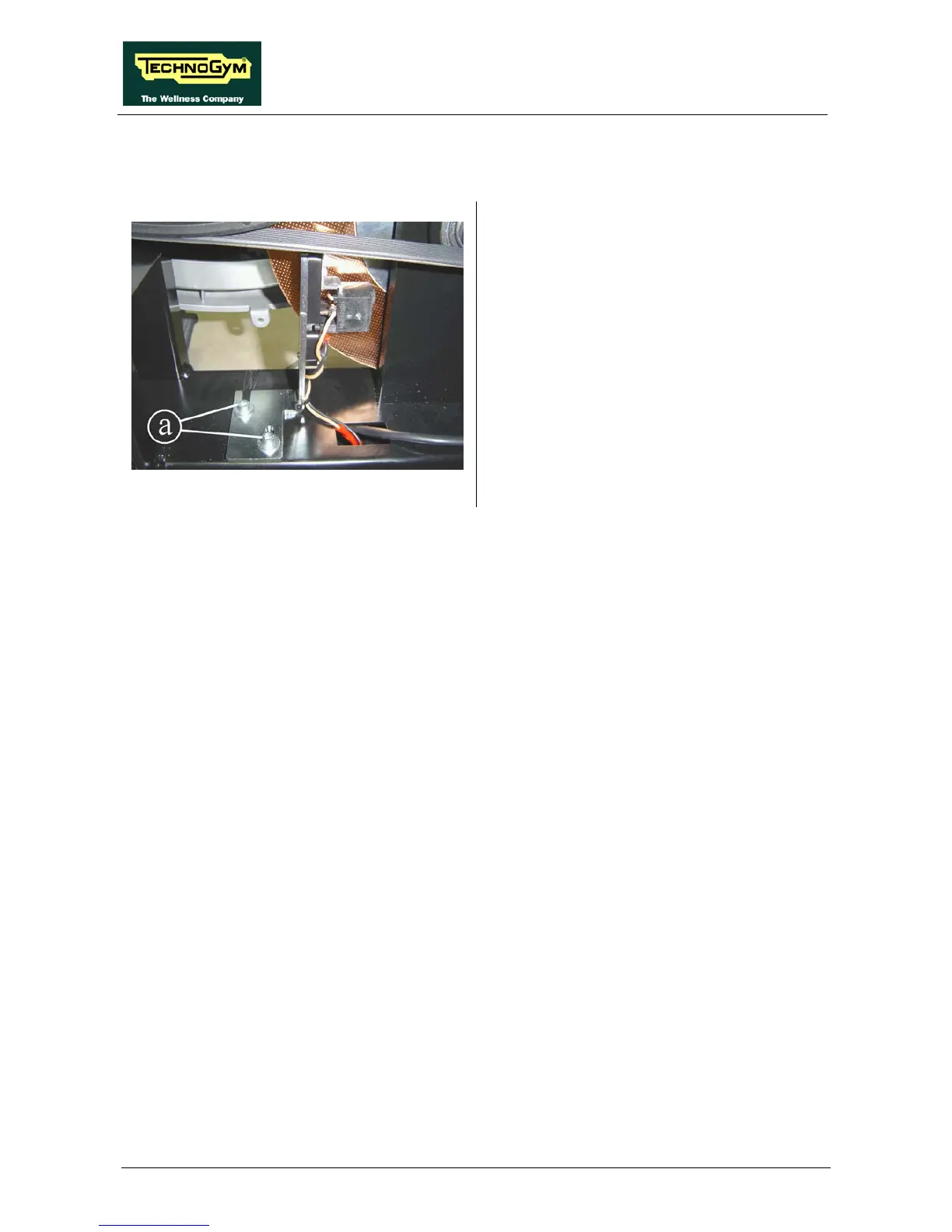

Figure 8.2-1
Carry out the procedure described in paragraph
7.6. “Disassembling the guards
” disassembling
only the right guards.
1. Back off the 2 screws a
and shift the speed
sensor support to the side, so that it is 0.7
mm from the screws on the copper disk.
2. Lock the screws back down.
