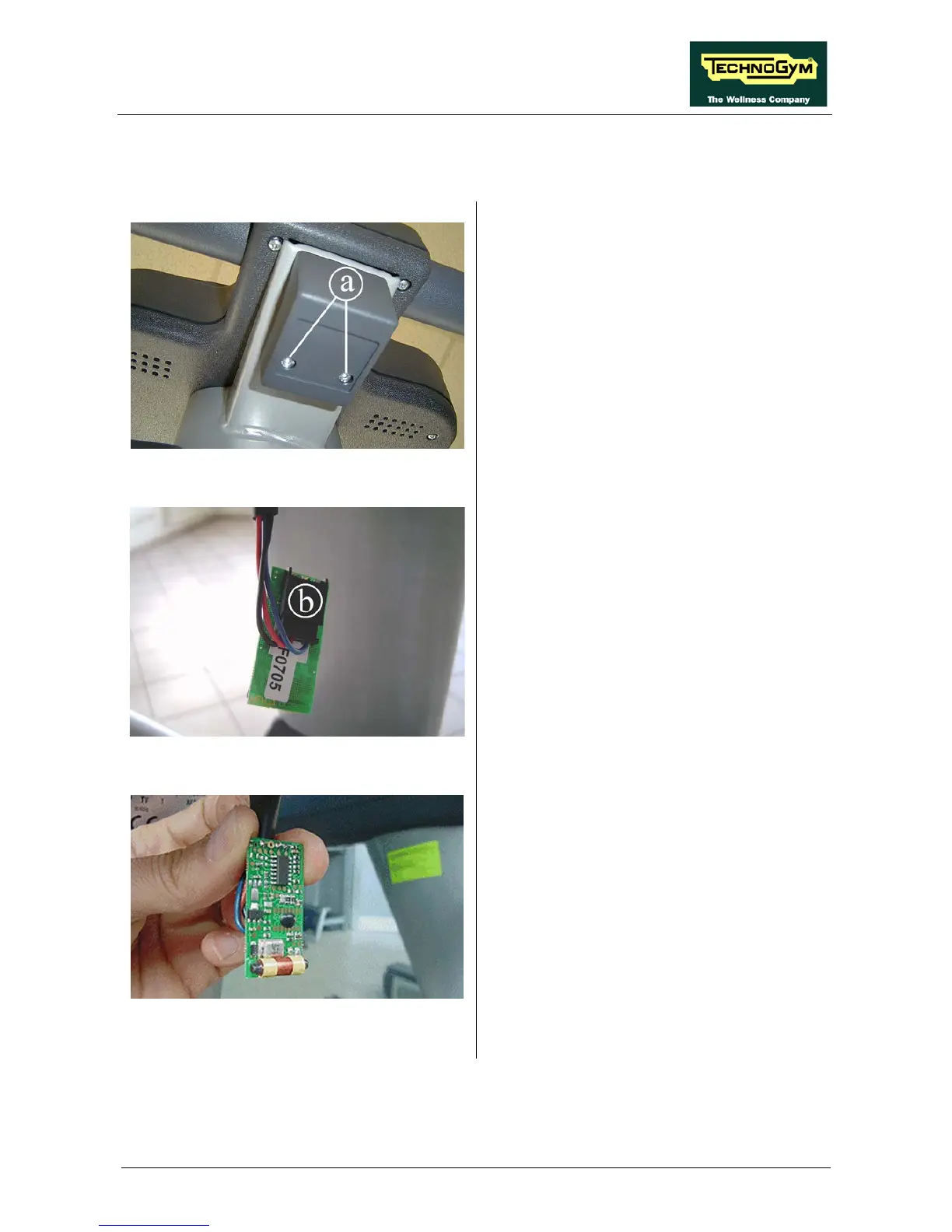

7.4. DISASSEMBLING THE CARDIO RECEIVER
Figure 7.4-1
1. Back off the 2 screws a using a 3-
mm Allen
wrench.
Figure 7.4-2
2. Unplug the connector b.
3. Remove the receiver.
Figure 7.4-3
To assemble the new receiver:
1. Connect the cable to the cardio r
eceiver and
bend the cable on a side of the connector.
Continued on following page →
