CROSS FORMA: Service & Maintenance Manual - rev. 2.1
Page 7.10

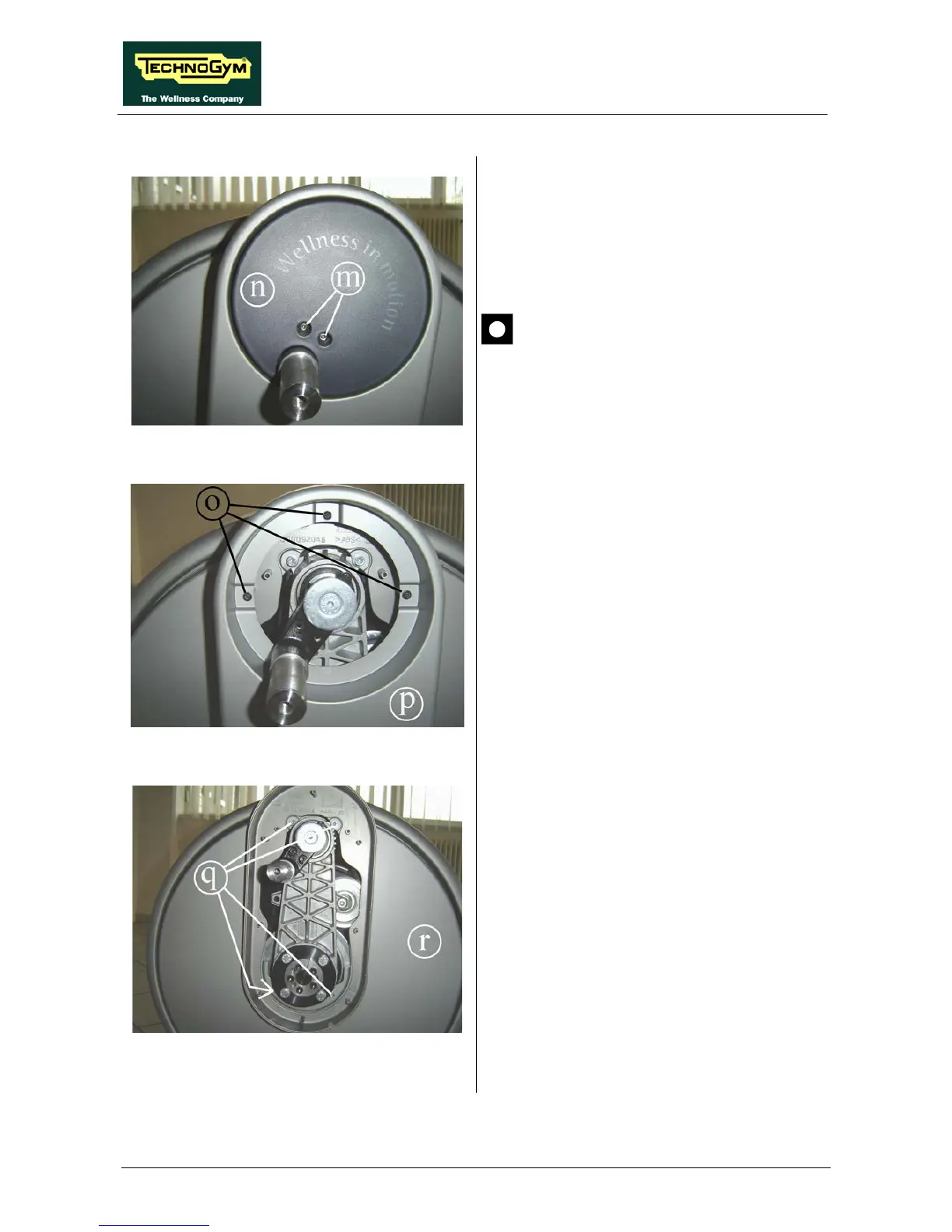

Figure 7.6-7
14. Back off the 2 screws m using a 3-
mm hex
wrench.
15. Remove the guard n from the machine.
During reassembly, lock down the
screws “m” using a torque wrench set
for 1 Nm.
Figure 7.6-8
16. Back off the 3 screws o
using a medium
Phillips screwdriver.
17. Remove the guard p from the machine.
Figure 7.6-9
18. Back off the 4 screws p using a 3-
mm hex
wrench.
19. Remove the guard r from the machine.
Continued on following page →
