CROSS FORMA: Service & Maintenance Manual - rev. 2.1
Page 7.11

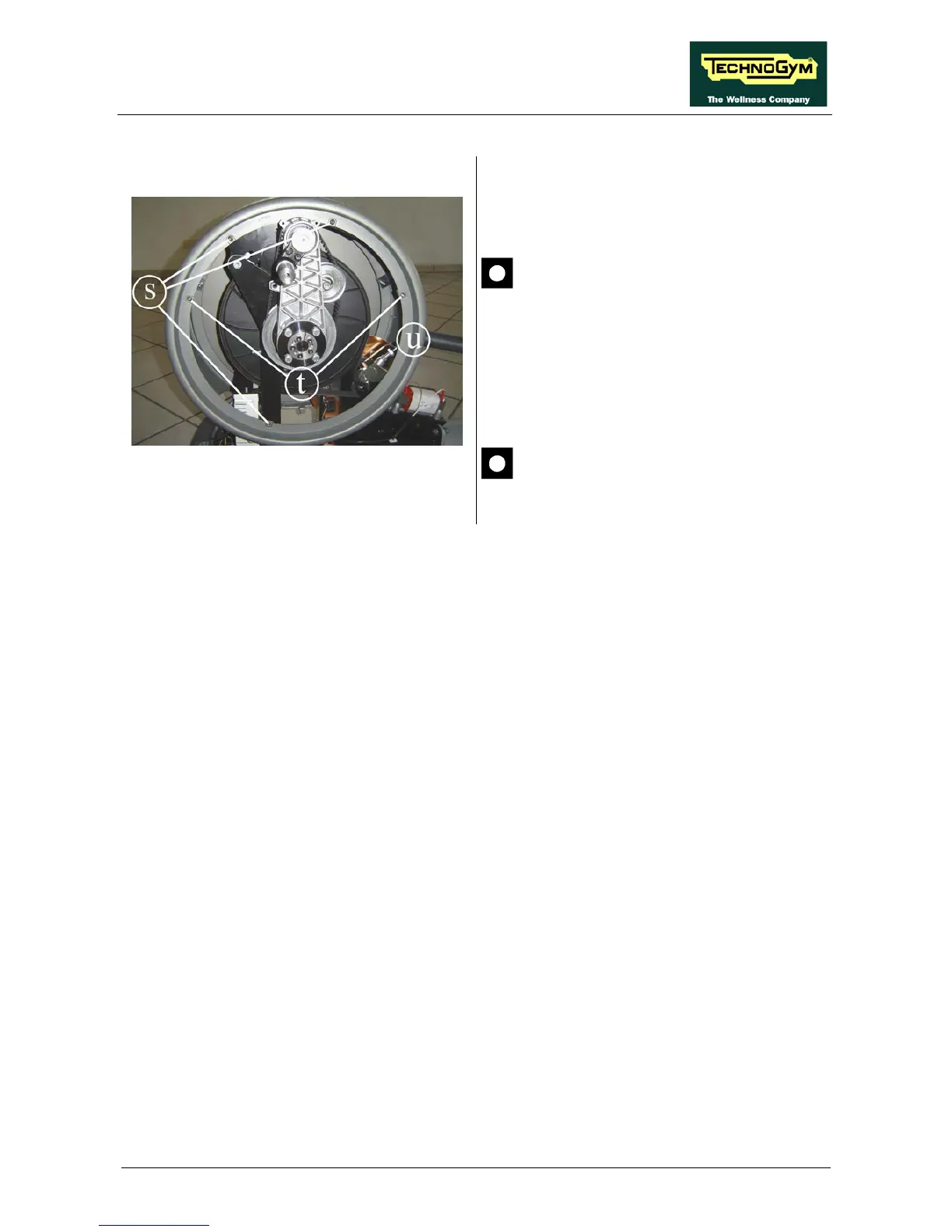

Figure 7.6-10
20. Back off the 3 screws s using a 4-mm hex
wrench.
21. Back off the 2 screws t using a 4-
mm hex
wrench.
Do not back off the screws “t” on the
opposite side of the machine, because
they hold on the two spacer brackets.
22. Remove the guard u.
To assemble the guards, carry out the above steps
in reverse order.
During reassembly, lock down the
screws “s” using a torque wrench set for
2 Nm.
