Technogym PURESTRENGTH - Troubleshooting: Misaligned Carriage Bars

PURESTRENGTH & BENCHES: Guida all'Assistenza Tecnica - rev. 4.1
Page 6.4
6.4. THE CARRIAGE SLIDING BARS ARE MISALIGNED

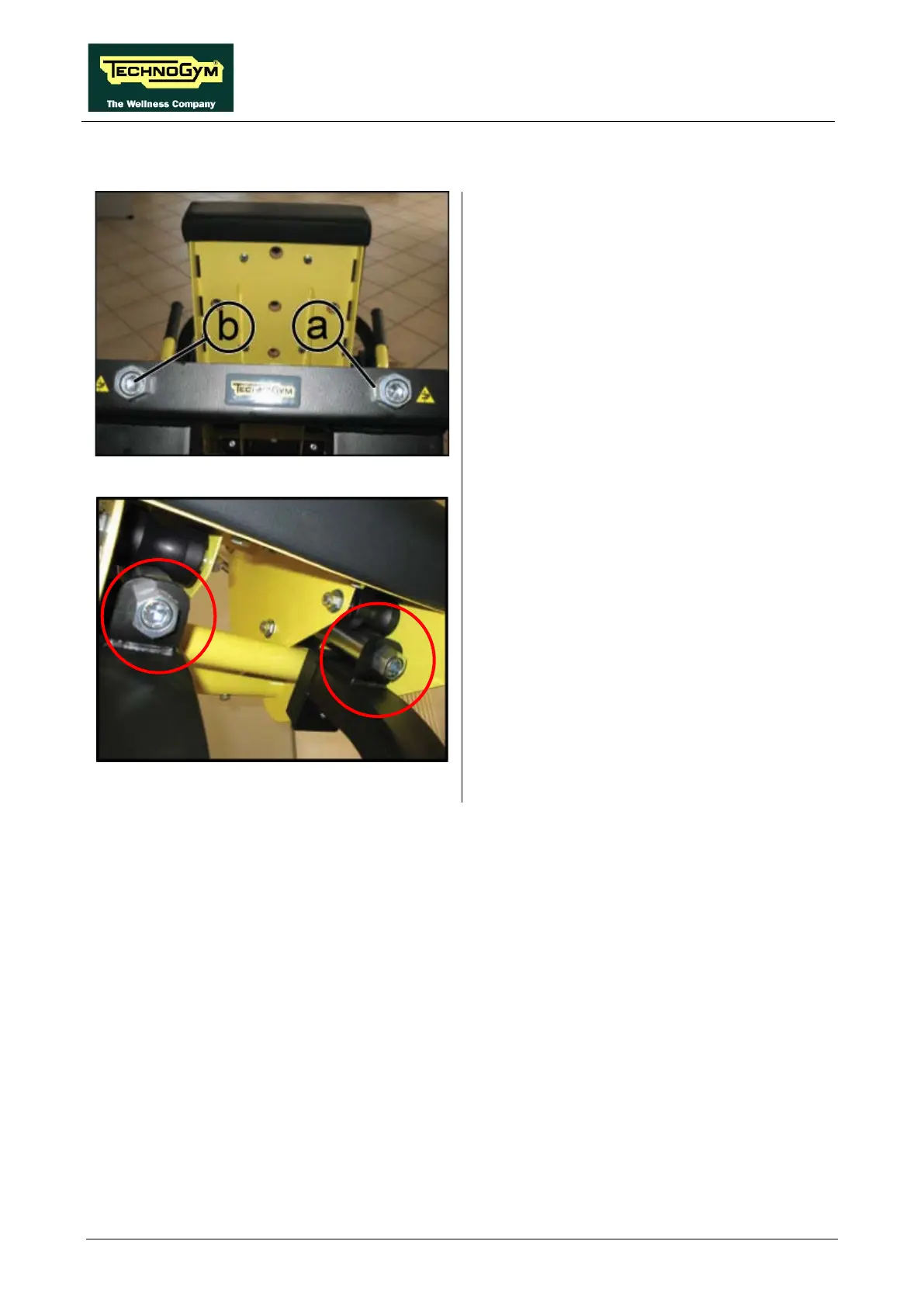

Figure 6.4-1
1. Loosen the 2 screws (b) and regulate the
brake cams (a) so that the bars are parallel.
2. Tighten again the 2 screws (b).
Figure 6.4-2
3. Also adjust the lower cams of the bars if
necessary.
