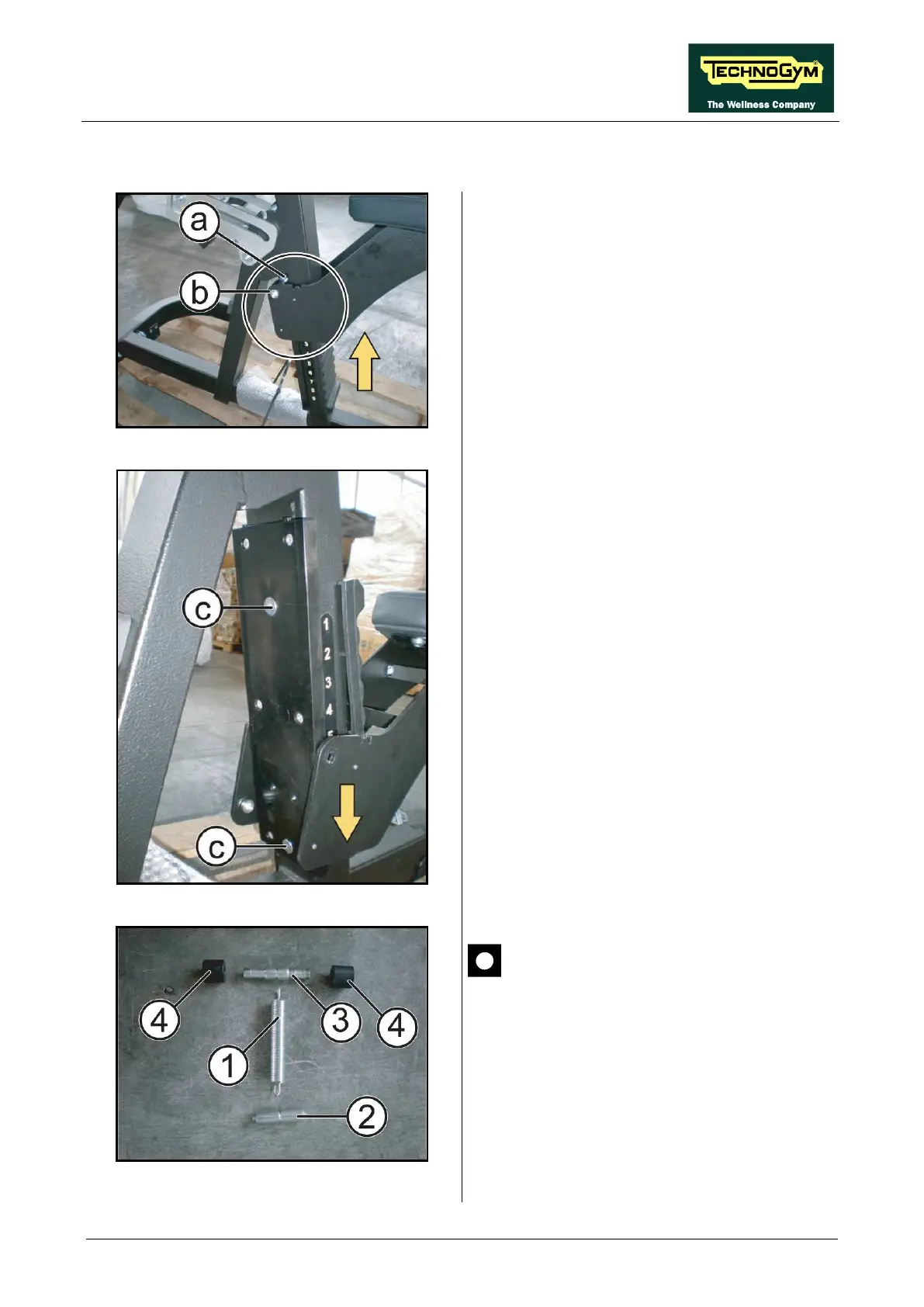

5.6. DISASSEMBLING SEAT GROUP (PG06 – SCOTT BENCH)
Figure 5.6-1
1. Raise the seat completely up and unhook the
spring group (a).
2.
Lower the seat completely down and unscrew
the screw (b) using a 6mm hexagonal key.
Figure 5.6-2
3. Unscrew the 2 screws (c), using a 5mm
hexagonal key to remove the seat selector.
Figure 5.6-3
CAUTION: During the reassembly refer
to the sequence indicated in the figure at
the side.
To reassemble the removed parts, carry out the
disassembling steps in reverse order.
