Technogym PURESTRENGTH - Platform (PG07) Disassembly

PURESTRENGTH & BENCHES: Guida all'Assistenza Tecnica - rev. 4.1
Page 5.28
5.7. DISASSEMBLING THE PLATFORM (PG07 – OLYMPIC
FLAT BENCH)

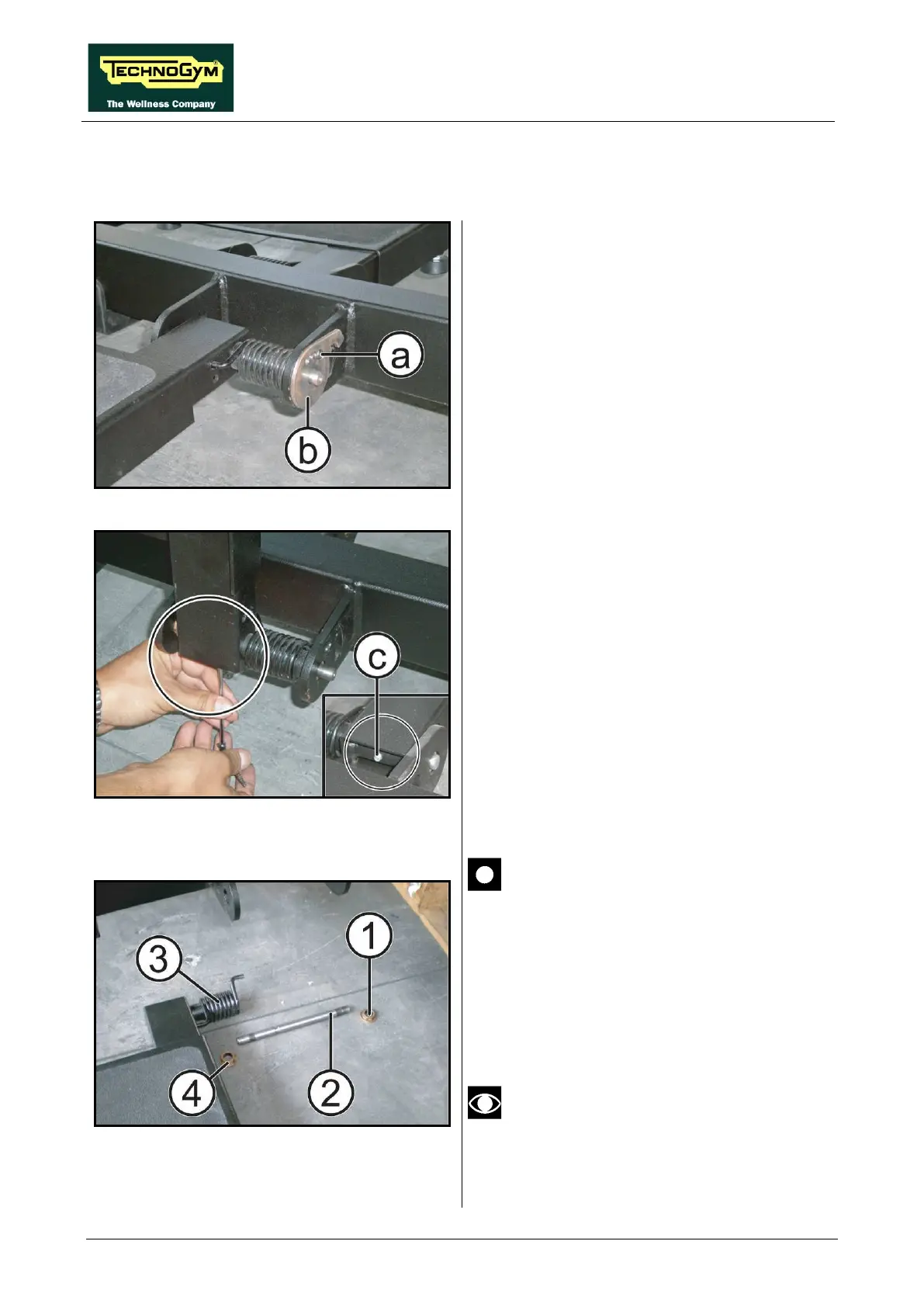

Figure 5.7-1
1. Lower the platform.
2. Unscrew the screw (a)
using a 4mm
hexagonal key and remove the selector (b).
Figure 5.7-2
3. Unscrew the grub screw (c), that locks the
internal shaft using a 3mm hexagonal key, as
shown in the figure.
4. Remove the bushes and the internal shaft.
Figure 5.7-3
CAUTION: During the reassembly refer
to the sequence indicated in the figure at
the side.
To reassemble the removed parts, carry out the
disassembling steps in reverse order.
After reassembling carry out the
procedure at paragraph: 6.7. “Bench
platform adjustment (PG07 – Olympic
Flat Bench”.
