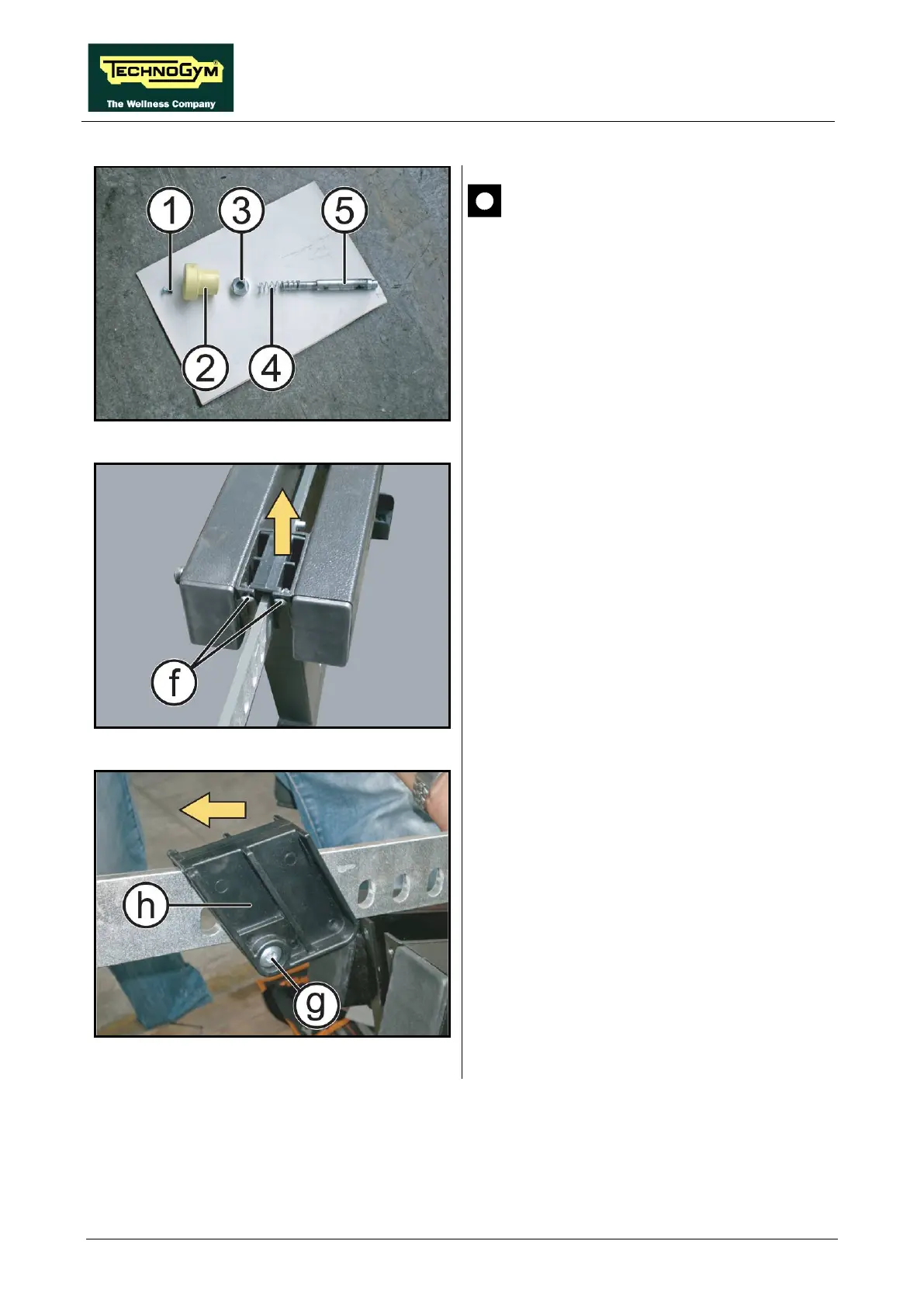

Figure 5.8-4
CAUTION: During the reassembly refer
to the sequence indicated in the figure at
the side.
Figure 5.8-5
7. Unscrew the 2 screws (f) using a medium
Phillips screwdriver and lift up the guide
group from the frame.
Figure 5.8-6
8. Unscrew the screw (g) using a 6mm wrench
and remove the plastic support (h).
To reassemble the removed parts, carry out the
disassembling steps in reverse order.
