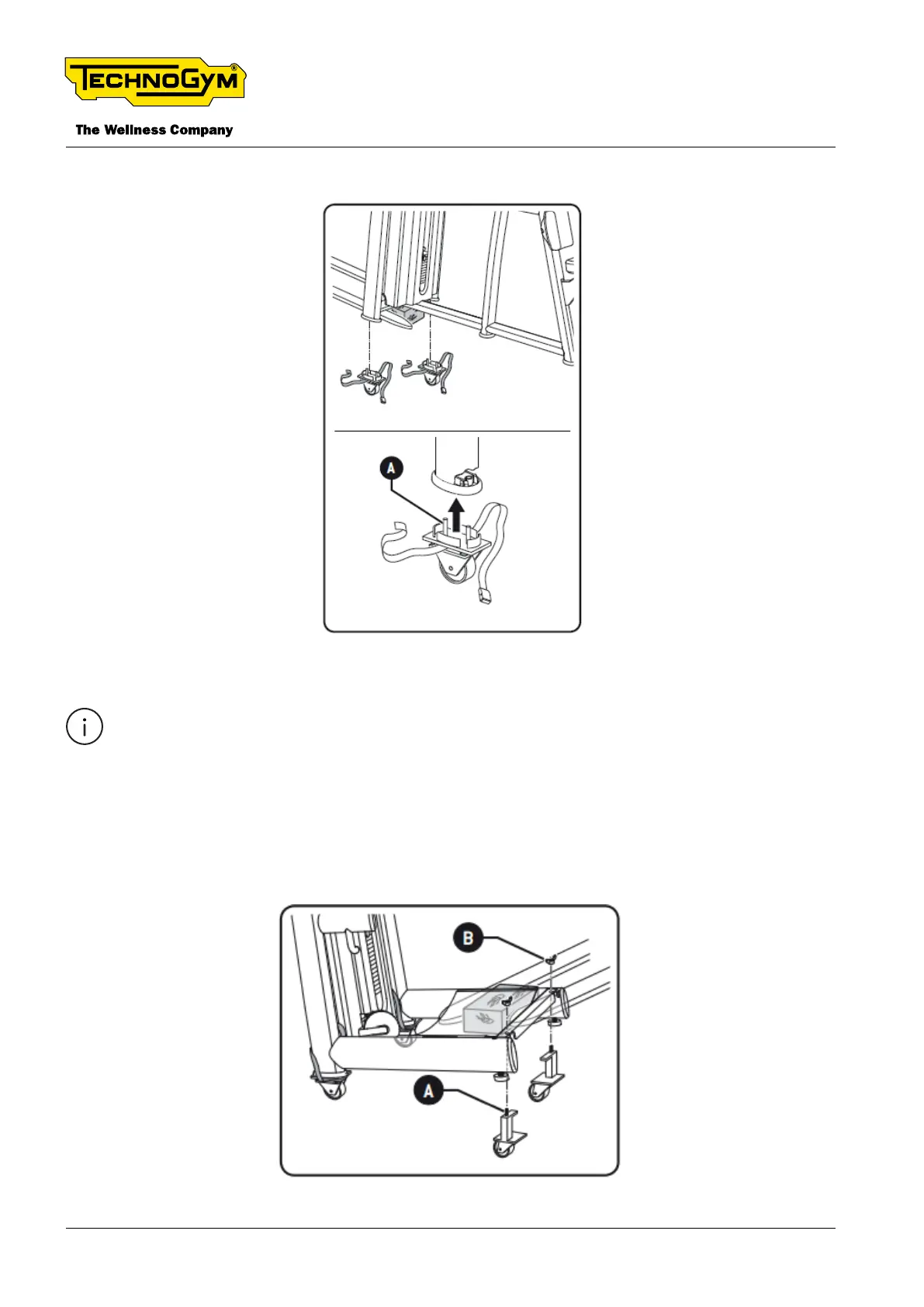

For example, see the following gure:
Fig. 71
The following operation applies only to MNDC machine.
Proceeding in the same way, lift the equipment on platform side and insert the castors as below:
▪ insert the threaded stems (A) in the special holes on the crosspiece,
▪ tighten the wing nuts (B)
Lastly, lift the equipment again, remove the safety wedges and place the wheels on the oor.
Fig. 72
