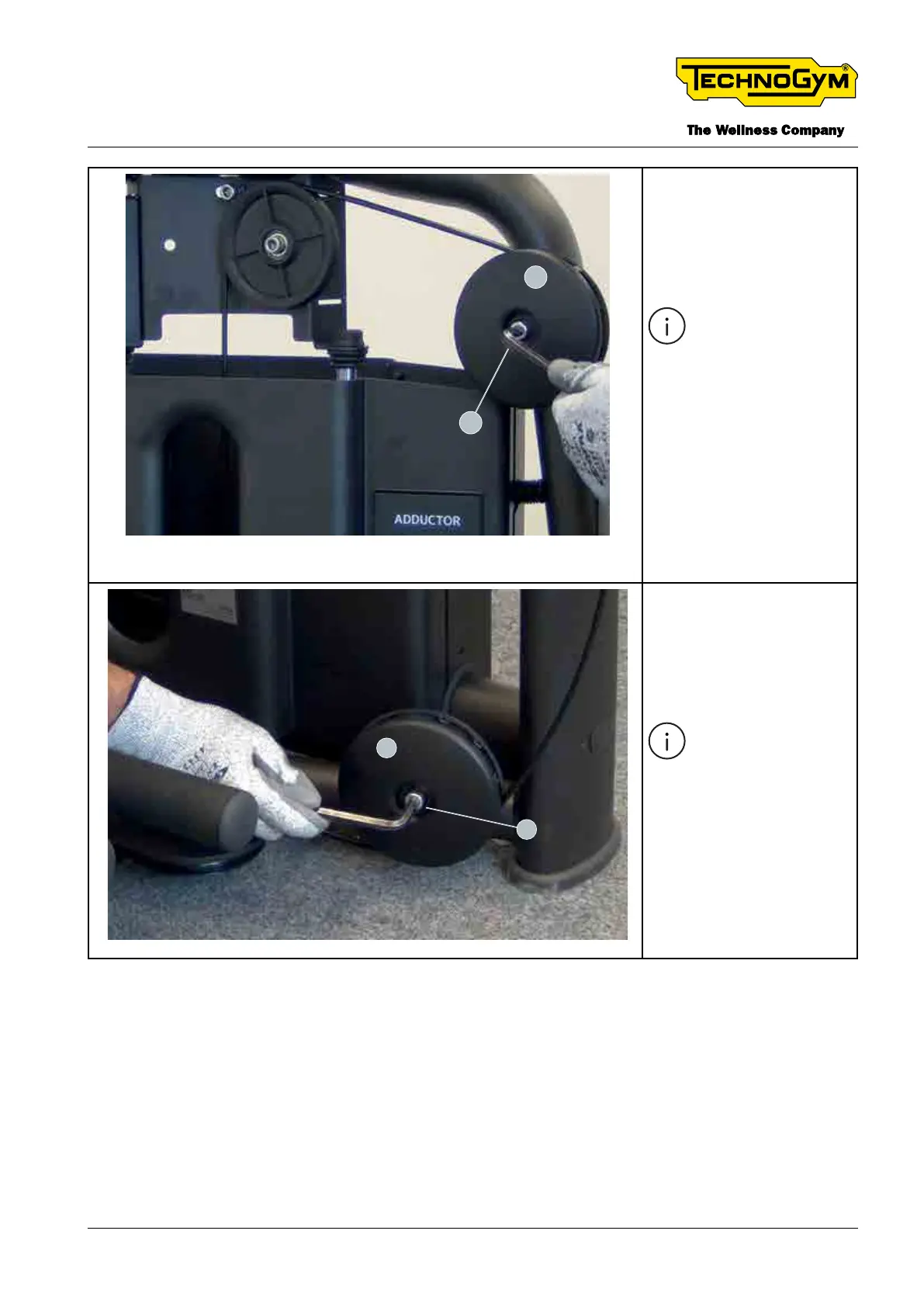

7. Remove the screw
[5a] to disassem-
ble the pulley [A].
(TOOL: 8 mm hexa-
gon key wrench).
During the reas-
sembly, tighten
the screw [5a].
(TOOL: torque
wrench- tightening
torques: 50 Nm
[36.9 lbf-ft]).
5b
B
8. Remove the screw
[5b] to disassem-
ble the pulley [B].
(TOOL: 8 mm hexa-
gon key wrench).
During the reas-
sembly, tighten
the screw [5b].
(TOOL: torque
wrench- tightening
torques: 50 Nm
[36.9 lbf-ft]).
