C LEAR P ATH -EC U SER M ANUAL REV 1.11 13
C LEAR P ATH Q UICK S ETUP
R EQUIRED I TEMS
x Windows PC (Win 10, 11) with ClearView 3.0
x ClearPath-EC motor
x DC Bus Motor Power Supply (with cables) 24-75 VDC
x Power distribution board (POWER4-HUB-S or POWER4-
STRIP-S)
x Logic Power Backup Supply (12-75VDC). Required only if
using Power4-HUB-S.
x USB-IR Converter (Teknic PN CPMS-USB-IR)
x USB A-C data cable, Teknic PN: CPM-CABLE-USB-118AC
R ECOMMENDED I TEMS
x M12 Adapter, P/N M12-ENET-CON
x Network & I/O cables
S ECURE Y OUR M OTOR
Injury Warning: Your motor may buck and jump during tuning and
operation. To prevent injuries and property damage, please secure
your ClearPath motor to a stable work surface before operating it.

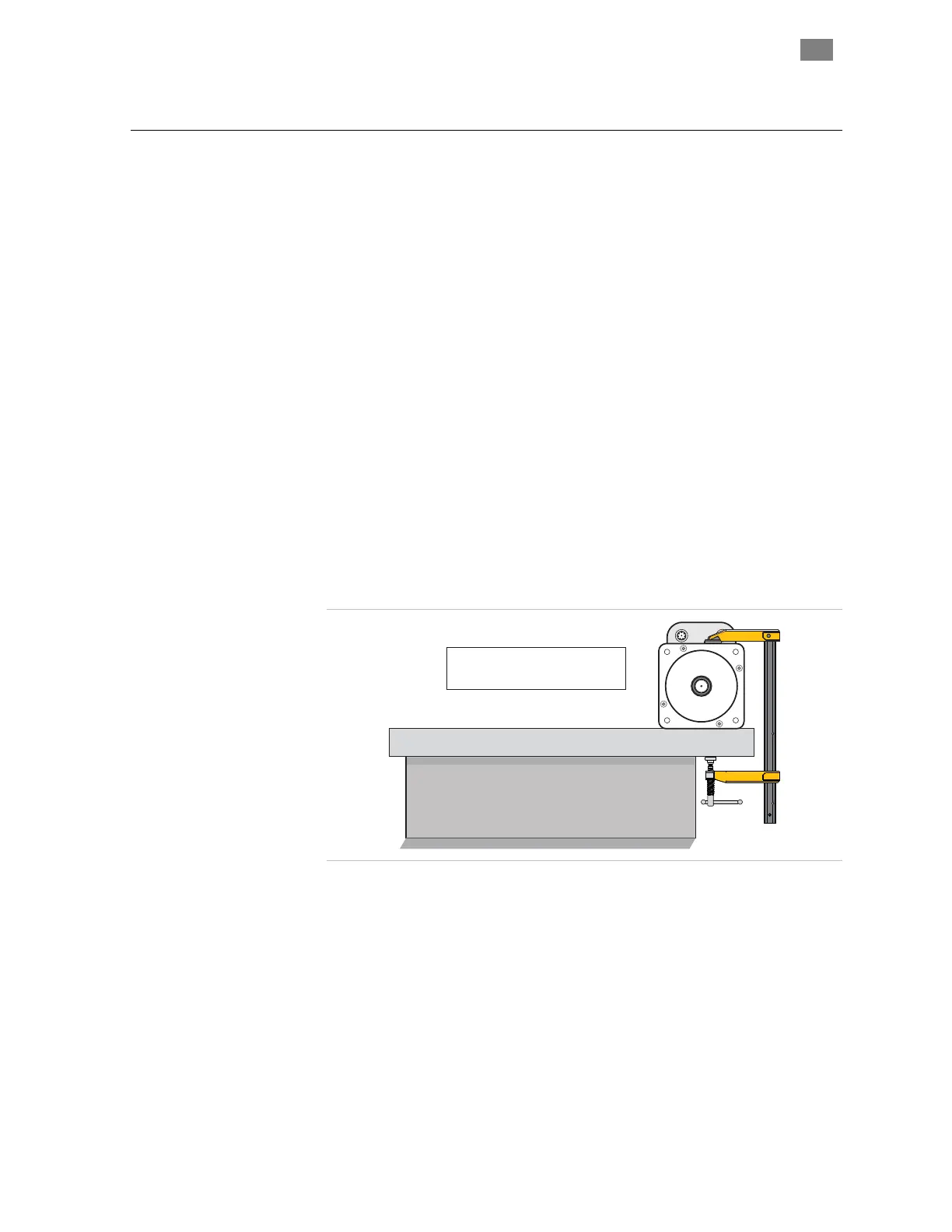

CLAMP MOTOR
to a stable work surface.
Clamp it!
