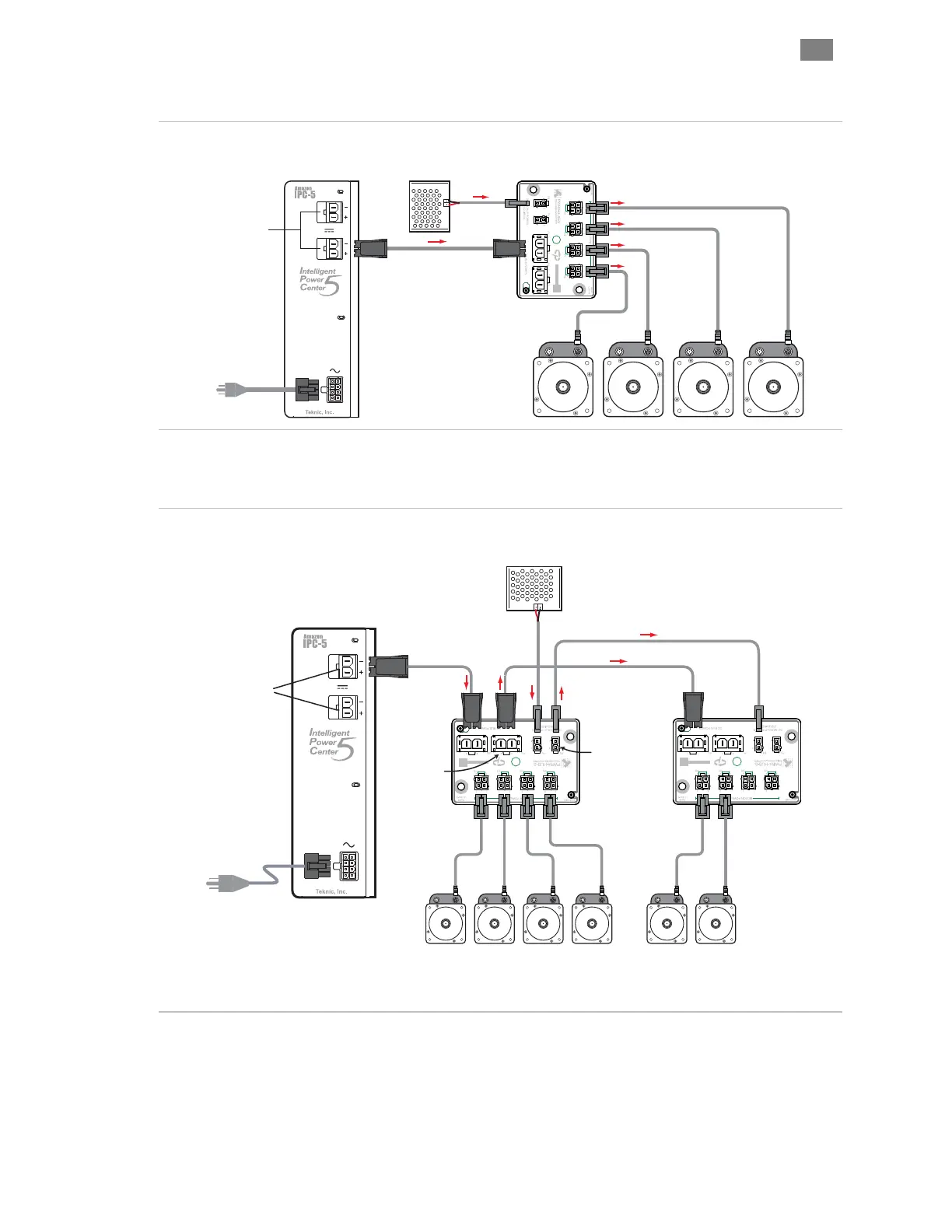

POWER4-HUB-S S YSTEM D IAGRAM
POWER4-HUB-S
Power Distribution Board
With Logic Power Backup
DC Bus Power Supply
(IPC-5 shown)
110/220 VAC in
75VDC out
Logic Power
Backup Supply
(12-75VDC)
A POWER4-HUB-S in a ClearPath system
POWER4-HUB-S E XPANDED S YSTEM D IAGRAM
DC Bus Power Supply
IPC-5 75VDC
AC Source
110/220VAC
75VDC
Bus Out
Logic Power
Backup Supply
(12-75VDC)
Logic Supply
passthrough
DC Bus
passthrough
NOTE: The actual number of motors that can be powered by
a single DC bus power supply is application and power
supply dependent.
Two POWER4-HUB-S boards powering several ClearPath motors
