C
LEAR
P
ATH
-EC
U
SER
M
ANUAL REV
1.11
10

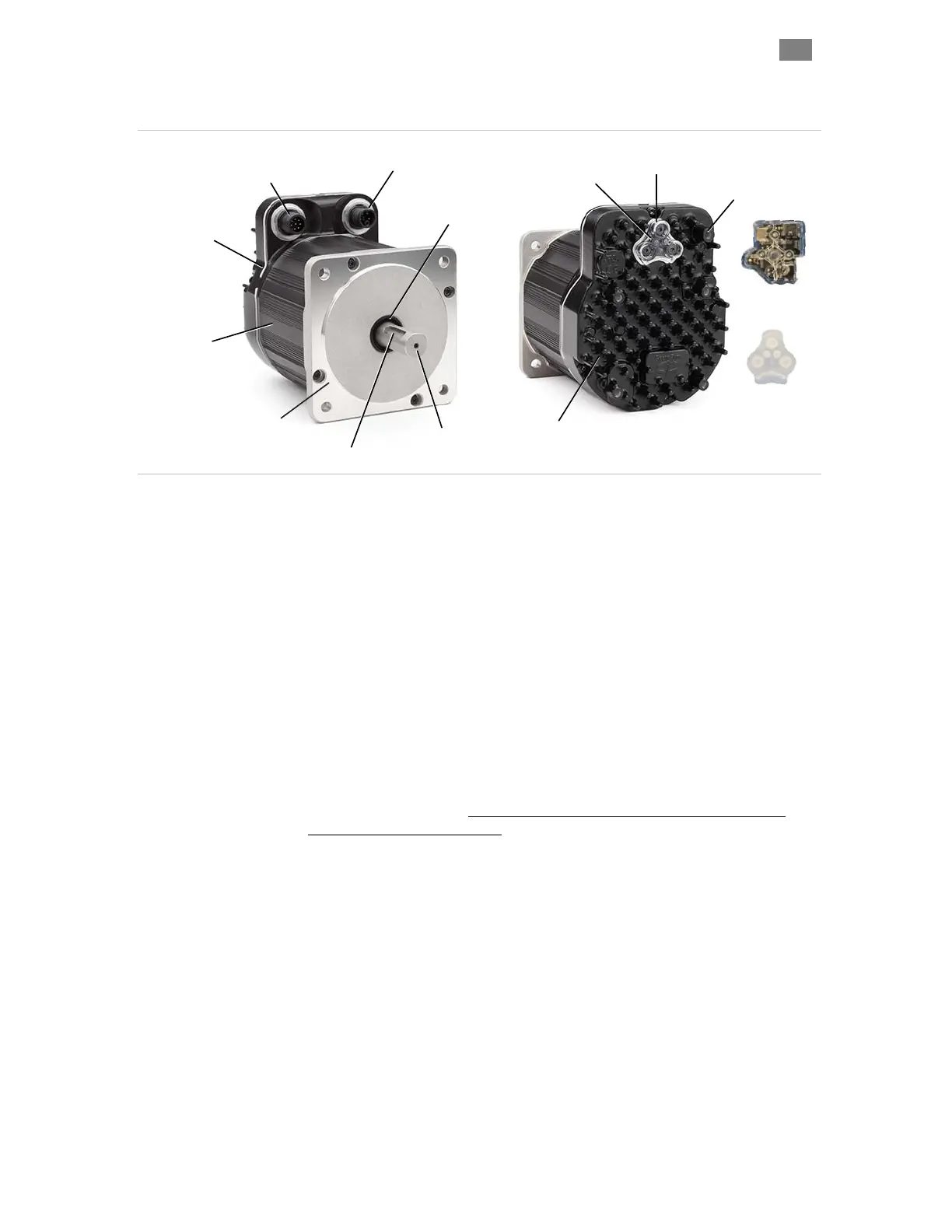

P
ARTS OF A
C
LEAR
P
ATH
-EC
M
OTOR
Auxilliary PE
(Protective Earth)
Connection Point
DC Bus Power Connector
M12, 5-position, K-coded
Network and
I/O Connector
M12, 12-position, A-coded
Stainless
Steel Shaft
NEMA
Mounting
Flange
Die Cast
Heatsink
Sealing
Gasket
Housing
nodized Aluminum
Keyway
USB-IR Port
Status LED
USB-IR Port Cover
Part# CPM-COVER-USB-5PC
(Note: Item sold in packs of 5.)
USB-IR Converter
Part# CPMS-USB-IR
Shaft Seal
Optional
ClearPath-EC Motor
DC Power Connector - This M12, 5-position, K-coded connector takes
in DC Bus Motor Power (24-75VDC) and Logic Power (12-75 VDC).
Network & I/O Connector - This M12, 12-position, A-coded connector
provides access to the EtherCAT in and out ports and the two I/O circuits.
USB-IR Port - This is a watertight IR (infrared) communication port. It
is used in conjunction with the USB-IR Converter to connect ClearPath to
a Windows PC running ClearView 3.0.
USB-IR Converter - (Teknic part# CPMS-USB-IR) This device
translates USB signals to and from high speed infrared light pulses
facilitating communication between a ClearPath motor and a PC running
ClearView 3.0 software. This device attaches magnetically to the ClearPath
motor's USB-IR Port.
USB-IR Port Cover - (Teknic part# CPM-COVER-USB-5PC) Prevents
accumulation of dirt and/or particulate on the USB-IR port when not in
use. Sold in packs of 5. Note: The USB-IR Port is waterproof with or
without this cover installed.
Status LED - Tri-color LED indicates the operational status of ClearPath
device. See Appendix A for ClearPath LED codes.
Auxiliary PE (Protective Earth) Connection Point - Use is
optional. Provides an alternative means of connecting the ClearPath
motor to the machine's Protective Earth Terminal if the motor mounting
bracket and/or plate is not properly bonded to PE. To use, connect a wire
between this screw boss and a part of the machine frame/chassis that is
bonded to machine PE.
T
EKNIC
,
I
NC
. T
EL
.
(585)
784-7454
