C LEAR P ATH -EC U SER M ANUAL REV 1.11 24
C ONNECTING TO AN E THER CAT N ETWORK
This section discusses how ClearPath-EC motors can be integrated into
your EtherCAT machine topology.
The ClearPath-EC system:
x Features the same compact motor size as other ClearPath models
x Works with standard, off-the-shelf network patch cables (CAT 5
or higher)
x Uses a single, low cost motor-to-M12 Adapter cable (one per
motor) available from Teknic in 39", 144" and 315" lengths
C LEAR P ATH -EC C ONNECTIONS O VERVIEW
ClearPath-EC components easily connect to EtherCAT compliant systems.
EtherCAT
Master
Other EtherCAT Devices
ClearPath-EC Motors
Motor Bus Powe
r
and Logic Power
Axis-Specific I/O Axis-Specific I/O Axis-Specific I/O
8-position
Molex Min-Fit Jr.
I/O Connector
M12
Adapter
M12
Adapter
M12
Adapter
M12 Adapter
P/N: M12-ENET-CON
Standard Network
Patch Cables
Controller Cable
P/N: CPMS-CABLE-NET-AA039
-AA120
-AA315

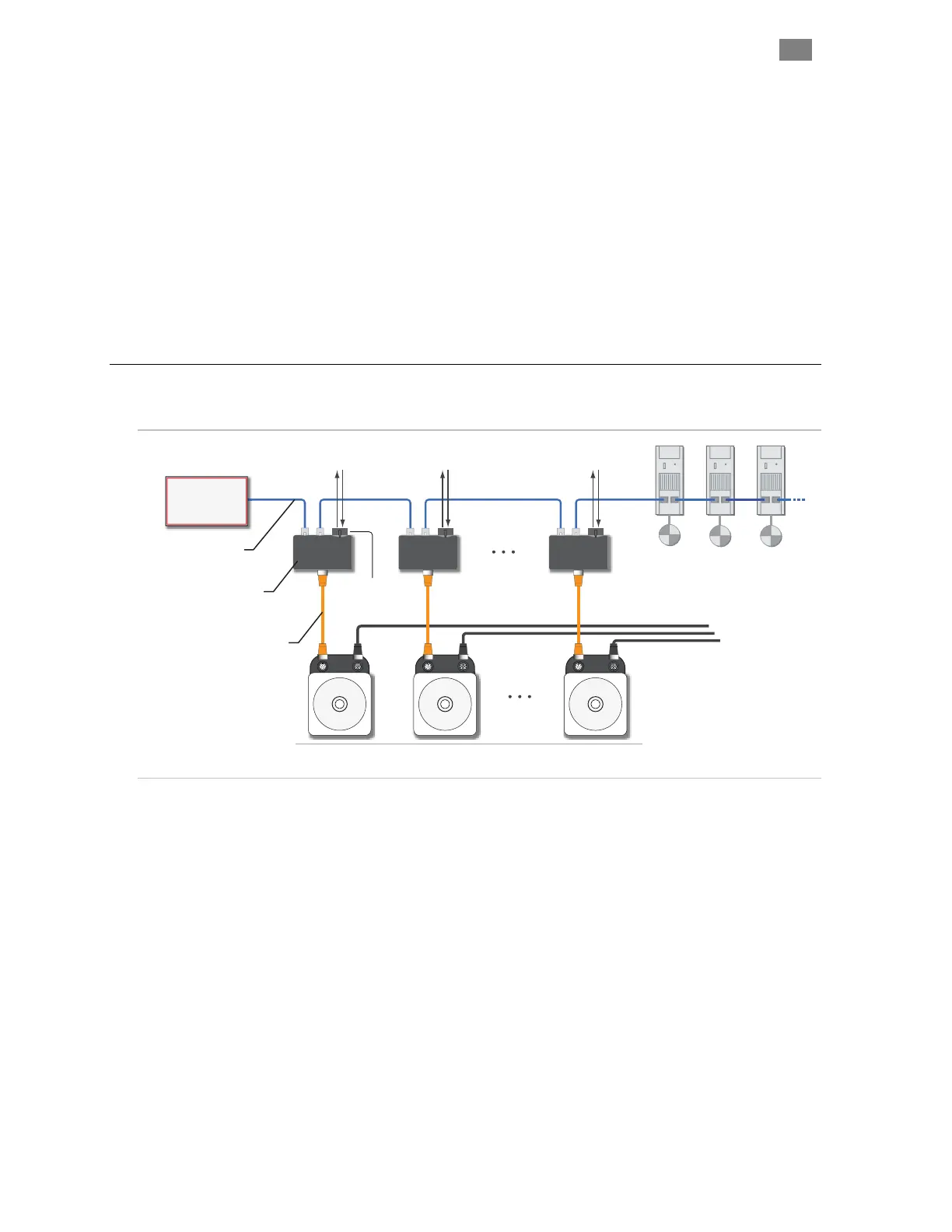

ClearPath-EC EtherCAT system overview
E THER CAT M ASTER
All EtherCAT Masters that support the CiA 402 device profiles should be
compatible with ClearPath-EC motors.
IMPORTANT: It is the user's responsibility to ensure that the Network
Interface Card (NIC) in their Master uses an EtherCAT compatible
chipset.
T
