W IRING A N A XIS B RAKE (O UTPUT B ONLY )
The Network Adapter includes a built-in protected circuit designed to
drive an axis brake directly. Brakes are commonly used on vertical axes,
sprung axes, or axes that must be locked in position during a safety
shutdown or other disabling event.
I/O-B (configured as an output) can be wired for brake control as shown
in the diagram below:
24VDC
+24V
Brake Control
Jumper
Brake M
7
Brake P 1
5
24V Ret. 6
2
3
I/O-B2
Jumper
I/O-B1
Brake
5
1
6
2
7
3
8
4
I/O-B2
(24VDC)
I/O-B1
I/O-A2
I/O-A1
Jumper
24V Ret.
Brake M
Brake P
M12 Adapter
M12 Adapter
(P/N: M12-ENET-CON)
External
Components
Brake
Control
Circuits*
* For circuit schematics see Appendix G
To ClearPath Motor
Network and I/O
connector

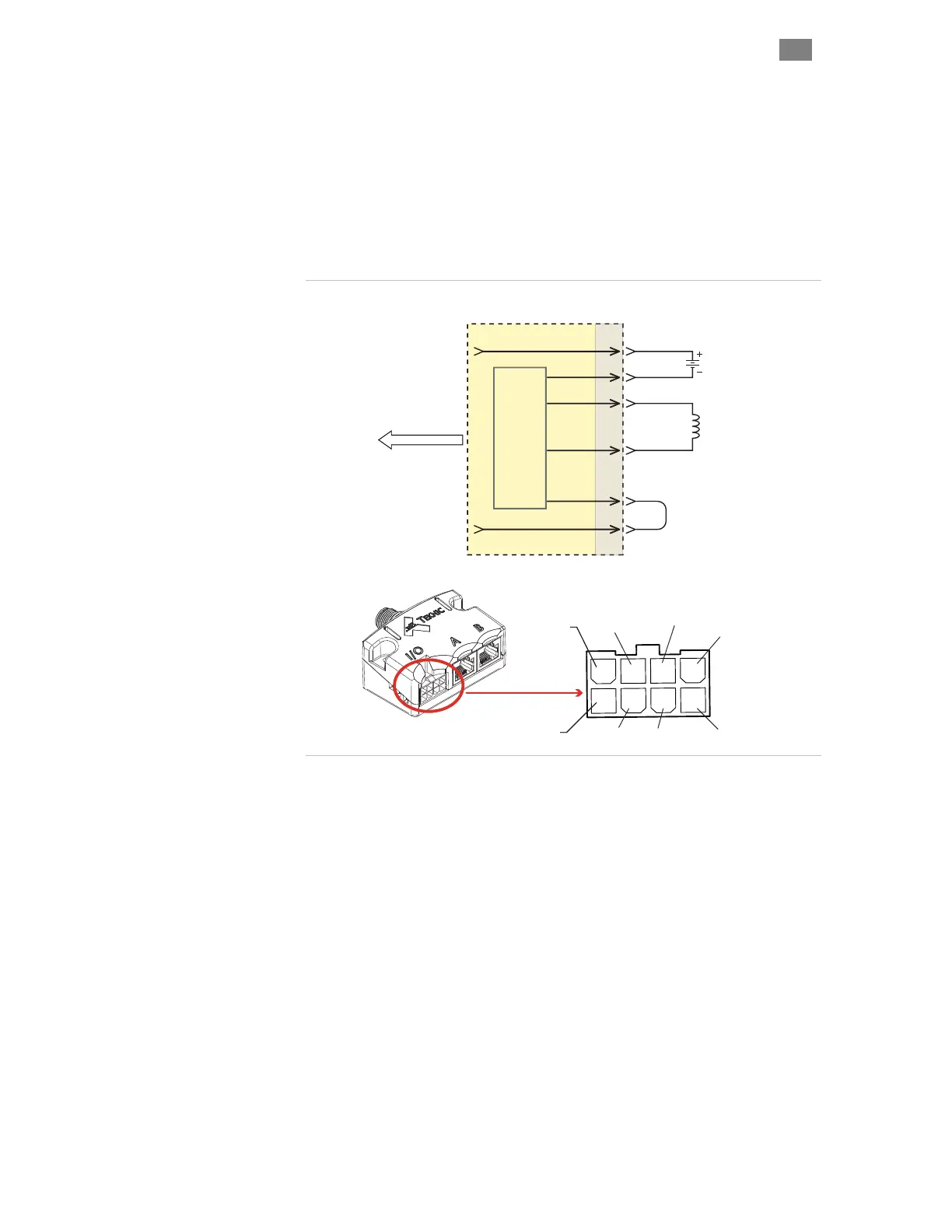

Brake control wiring diagram. (Applies to I/O-B only.)
