F AN M OUNTING (O PTIONAL
ClearPath motors include unthreaded mounting bosses on the rear casting
to accommodate a standard computer fan (60mm for NEMA 34 motors,
or 40mm for NEMA23 motors). To attach a fan to these bosses use
thread-cutting #6 or M3.5 screws.
Note: Accessory fans are optional and available through electronics
suppliers including Digikey and Mouser. External power is required
(12VDC or 24VDC typical).
Note: As with all electronic products, cooler is better for longest
operating life. So even though ClearPath can reliably operate at elevated
temperatures (exceeding the ratings of most other motor drives) your
system should always be designed with motor thermal considerations in
mind.
Note: ClearPath will shut down to self-protect when the rear cover
temperature reaches 80 degrees C.

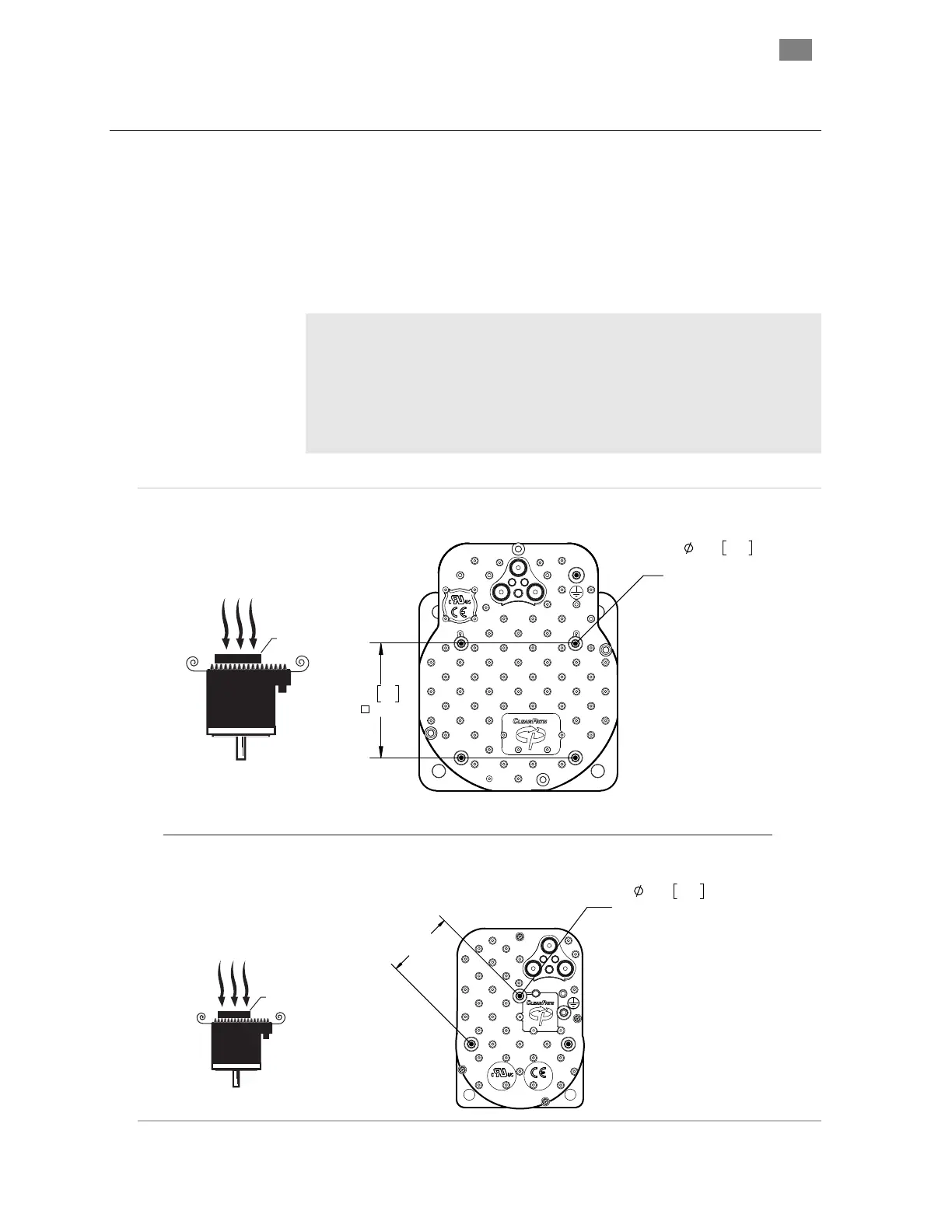

ClearPath NEMA 34
Designed for 60mm fans
ClearPath NEMA 23
Designed for 40mm fans
50
1.969
For #6 or M3.5
Thread-Cutters
For Mounting 40mm Fan
3X
.125
3.17
[32]
1.260
Max. penetration: 0.4”
For #6 or M3.5
Thread-Cutters For
mounting 60 mm Fan
4X .130
3.29
Max. penetration: 0.4”
Fan (40 mm)
Fan (60 mm)
air flow
air flow
