O UTPUT W IRING E XAMPLES
Any external circuit or device to be connected to the ClearPath output
should conform to the guidelines below. Proper circuit design/selection
greatly reduces the probability of electrically damaging the output,
particularly in the event of a common production mistake such as an
accidental short or reversed wiring.
S INKING O UTPUTS
Outputs can be used as a sinking output as shown below. This topology
provides ClearPath with a high level of immunity from damage if, for
example, the circuit is shorted to machine chassis. Such a short would
simply make the output appear like a closed circuit.
ClearPath Internal
ClearPath Internal
A1 (B1)
A2 (B2)
A1 (B1)
A2 (B2)
PLC Input
5-24VDC
(Supply)
5-24VDC
(Return)
IN +
IN -
Microcontoller
Digital Input
IN
GND
5-24VDC
(Supply)
Pull-up resistor
(1k - 20k typical)

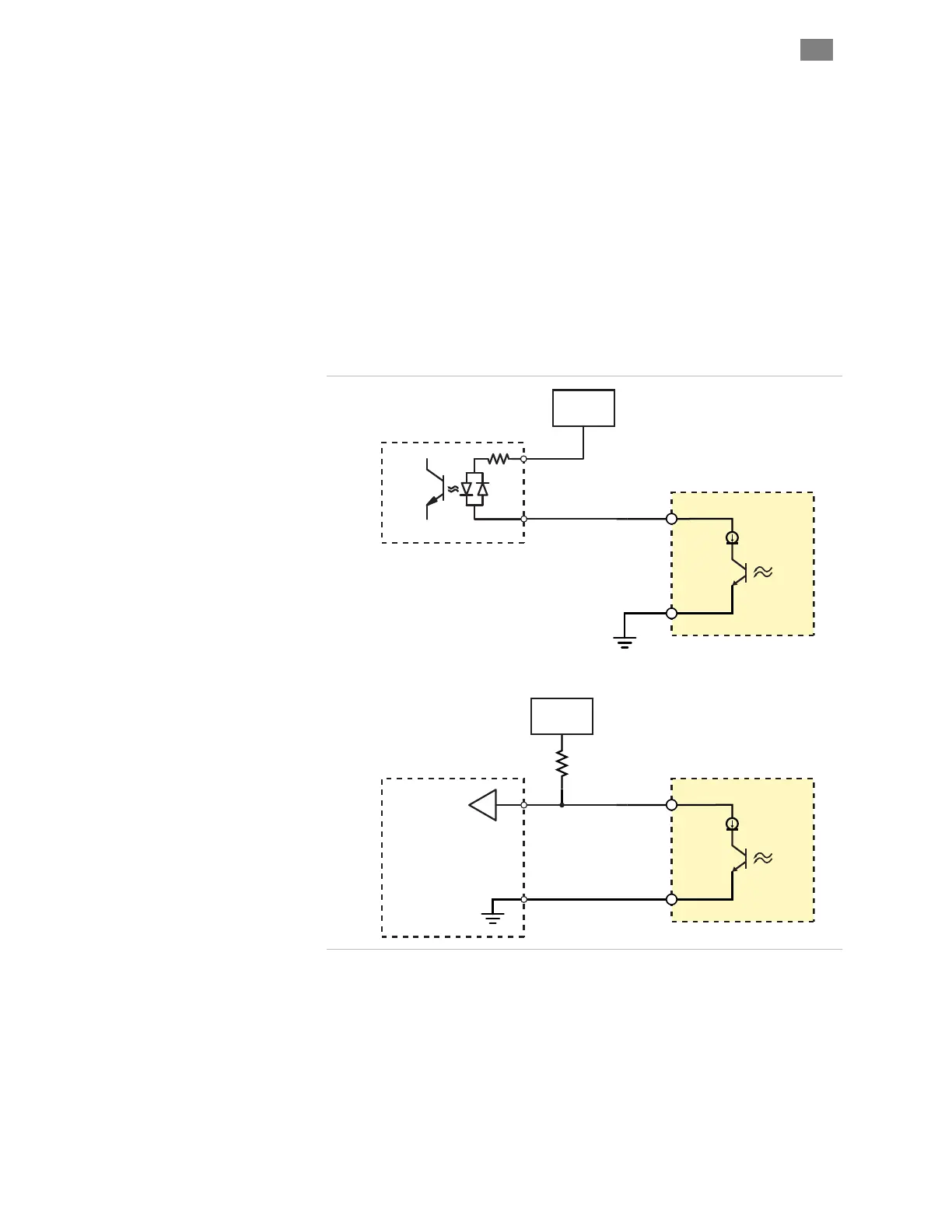

Sinking output examples
