C
LEAR
P
ATH
-EC
U
SER
M
ANUAL REV
1.11
68
A
PPENDIX
A:
T
ROUBLESHOOTING
LED
B
LINK
C
ODES

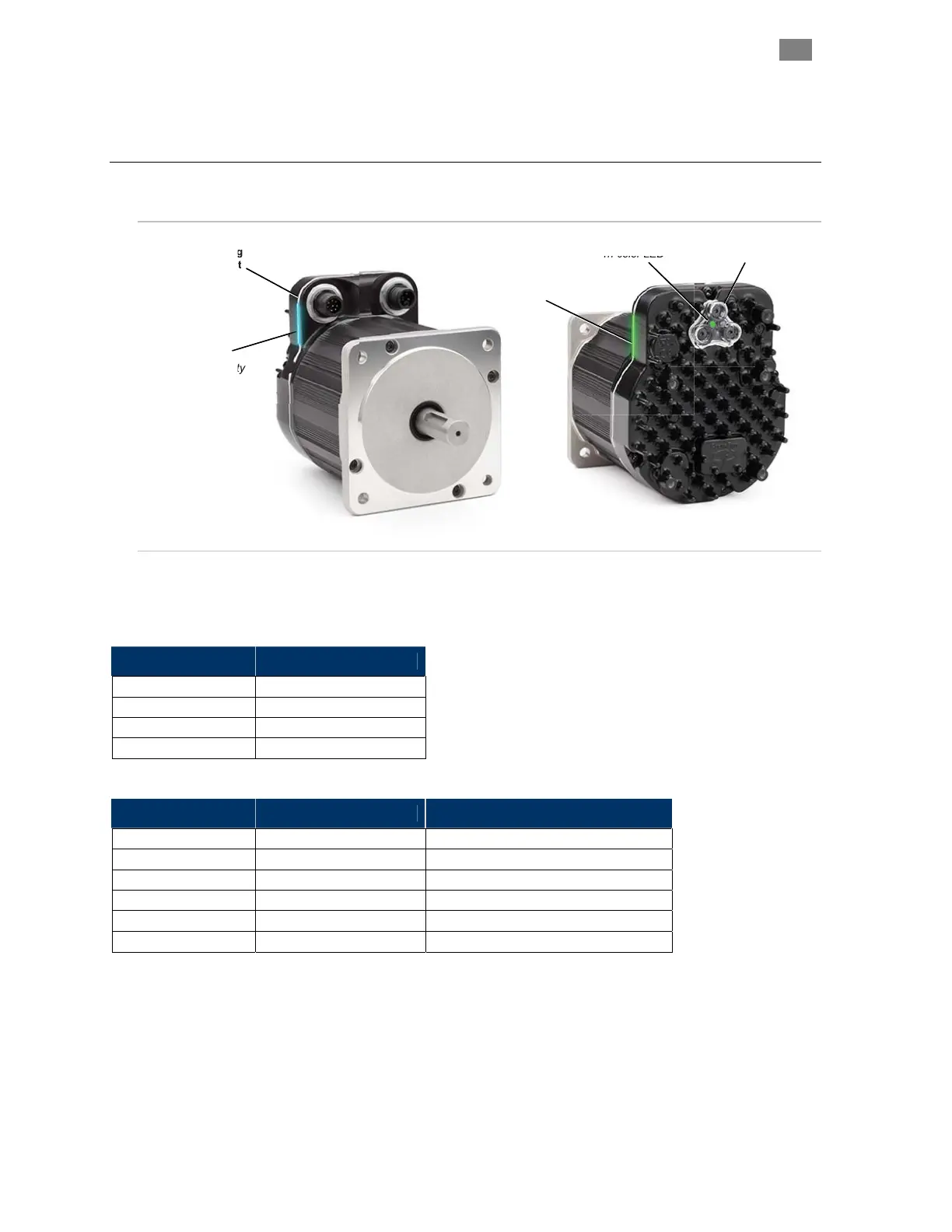

Sealing
Gasket
Blue LED*
Port 2 Link Activity
Green LED*
Port 1 Link Activity
USB-IR Port
Status LED
Tri-color LED
*Note: The blue and green Link Activity LEDs shine through the motor’s sealing gasket where indicated.
Link Activity and Status LEDs
Status LED Motor Status
Green flicker
Motor Enabled
Green solid
Motor Disabled
Yellow blink
Motor in Shutdown
Red blink
Hardware Error
Green LED Blue LED Link Activity Description
On solid x
Port 1 OPEN - NO activity present
Flickering/Breathing x
Port 1 OPEN - Activity present
Off x
Port 1 CLOSED
x On
Port 2 OPEN - NO activity present
x Flickering/Breathing
Port 2 OPEN - Activity present
x Off
Port 2 CLOSED
T
EKNIC
,
I
NC
. T
EL
.
(585)
784-7454
