P OWER U P Y OUR C LEAR P ATH -EC M OTOR
T HINGS YOU ' LL NEED
x DC Bus Motor Power Supply: Teknic/IPC-5, 75VDC Bus Motor
Power Supply or equivalent, cables as shown below.
x Power distribution board: POWER4-HUB-S or
POWER4-
STRIP-S. Note: for POWER4-HUB-S users, a separate Logic
Supply is required (12-75VDC). A separate Logic Supply is not
required when using a POWER4-STRIP-S.
x Cables as shown below.
Tightening M12 connectors. For a reliable seal, tighten the
communication and power cables between 0.8 Nm-1.4 Nm. Tip: When
M12 cable connectors are properly tightened there should be no more
than 1-2 threads visible on the motor connectors.
POWER4-HUB-S
Power Distribution Board
With Logic Power Backup
DC Bus Power Supply
(IPC-5 shown)
110/220 VAC in
75VDC out
Logic Power
Backup Supply
(12-75VDC)
PWR4-STRIP-S
Power Distribution Board
Bus Power Supply
(IPC-5 shown)
110/220 VAC in
75VDC out

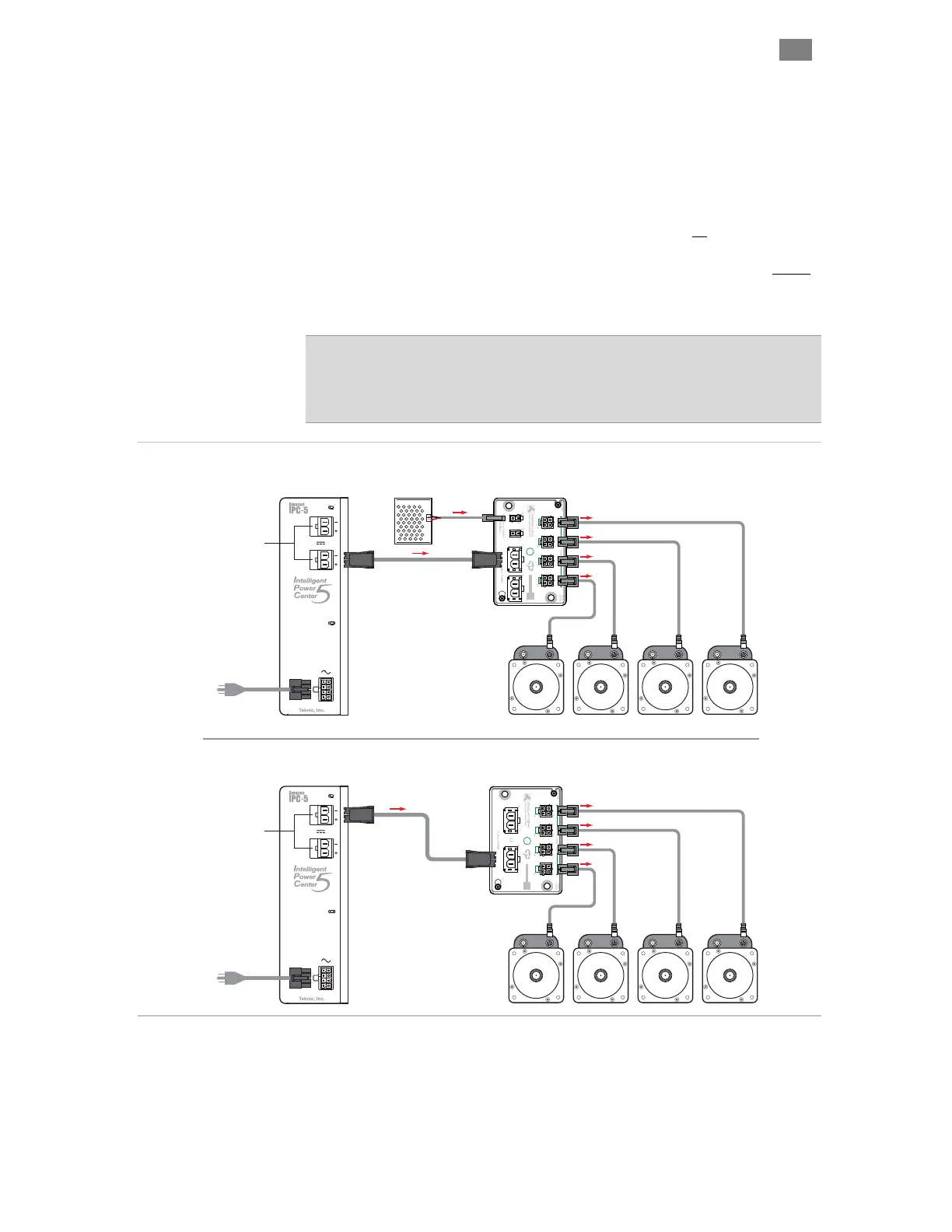

ClearPath-EC Power Connections using a POWER4-HUB-S or POWER4-STRIP-S
