Teknic CLEARPATH-EC - M12 Adapter (P;N: M12-ENET-CON)

C LEAR P ATH -EC U SER M ANUAL REV 1.11 78

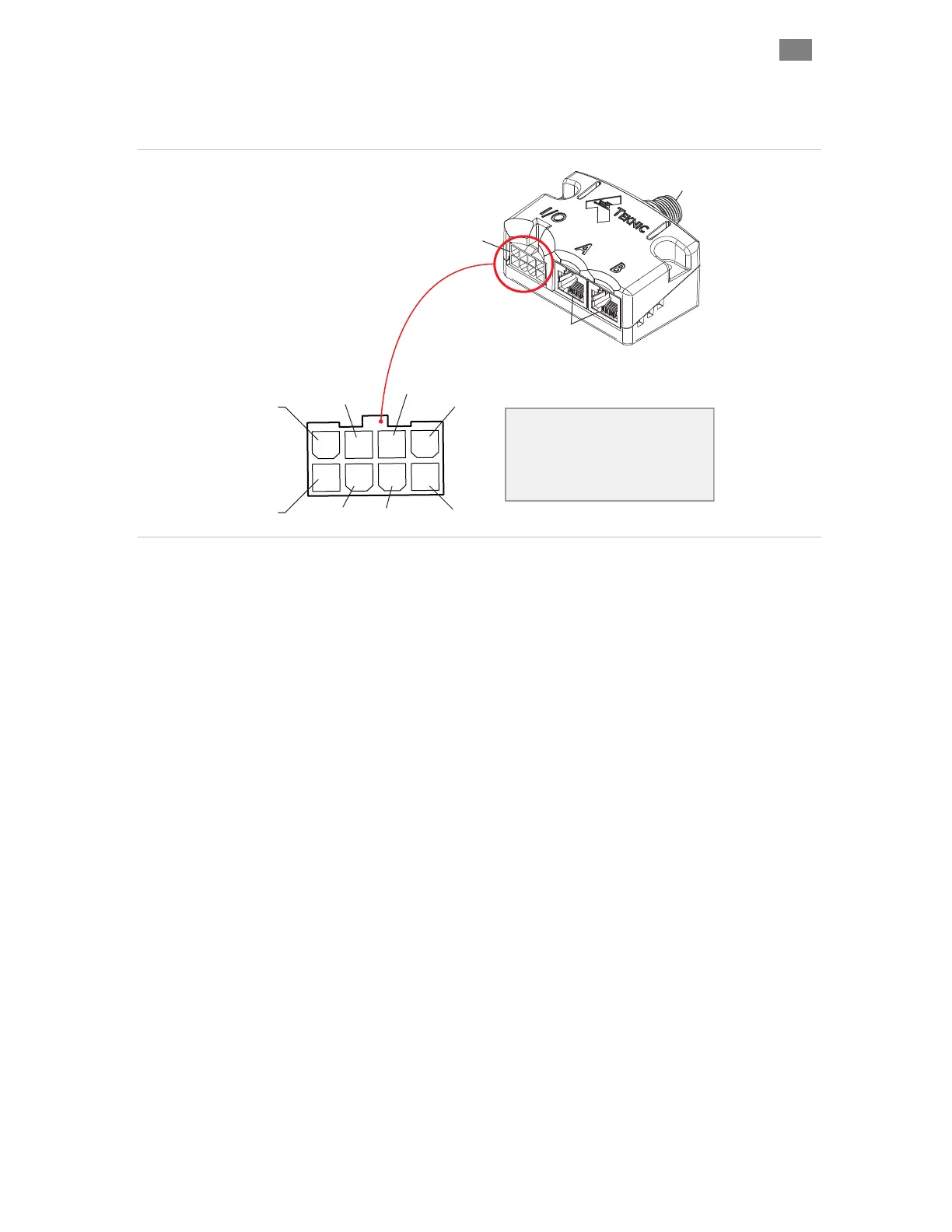

M12 A DAPTER (P/N: M12-ENET-CON)
Housing: Molex/39-01-2080
Terminals: Molex/39-00-0039
Crimp Tool: Molex/638190900
Cable:
18AWG, 300V, stranded
Extraction Tool: Molex/11-03-0044
5
1
6
2
7
3
8
4
I/O-B2
(and 24VDC)
I/O-B1
I/O-A2
I/O-A1
Jumper
24V Ret.
Brake M
Brake P
RJ-45 Connectors
M12, A-code
12-Pin
Molex Min-Fit Jr.
8-Position Header
Mating Connector Information
