POWER4-STRIP-S
The POWER4-STRIP-S Distributes DC Bus Motor Power to up to four
ClearPath motors. This board serves as a basic plug strip for your
ClearPath motors.
Note: The POWER4-STRIP-S board does not
take a separate Logic Power
Backup Supply.
DC Bus
passthrough
PWR4-STRIP-S
Power Distribution Board
PWR4-STRIP-S
PWR4-STRIP-S
Bus Power Supply
(IPC-5 shown)
Bus Power Supply
(IPC-5 shown)
75VDC out
75VDC out
AC Source
110/220VAC
AC Source
110/220VAC
NOTE: The actual number of motors that can be powered
by a single DC bus power supply is application and
power supply dependent.

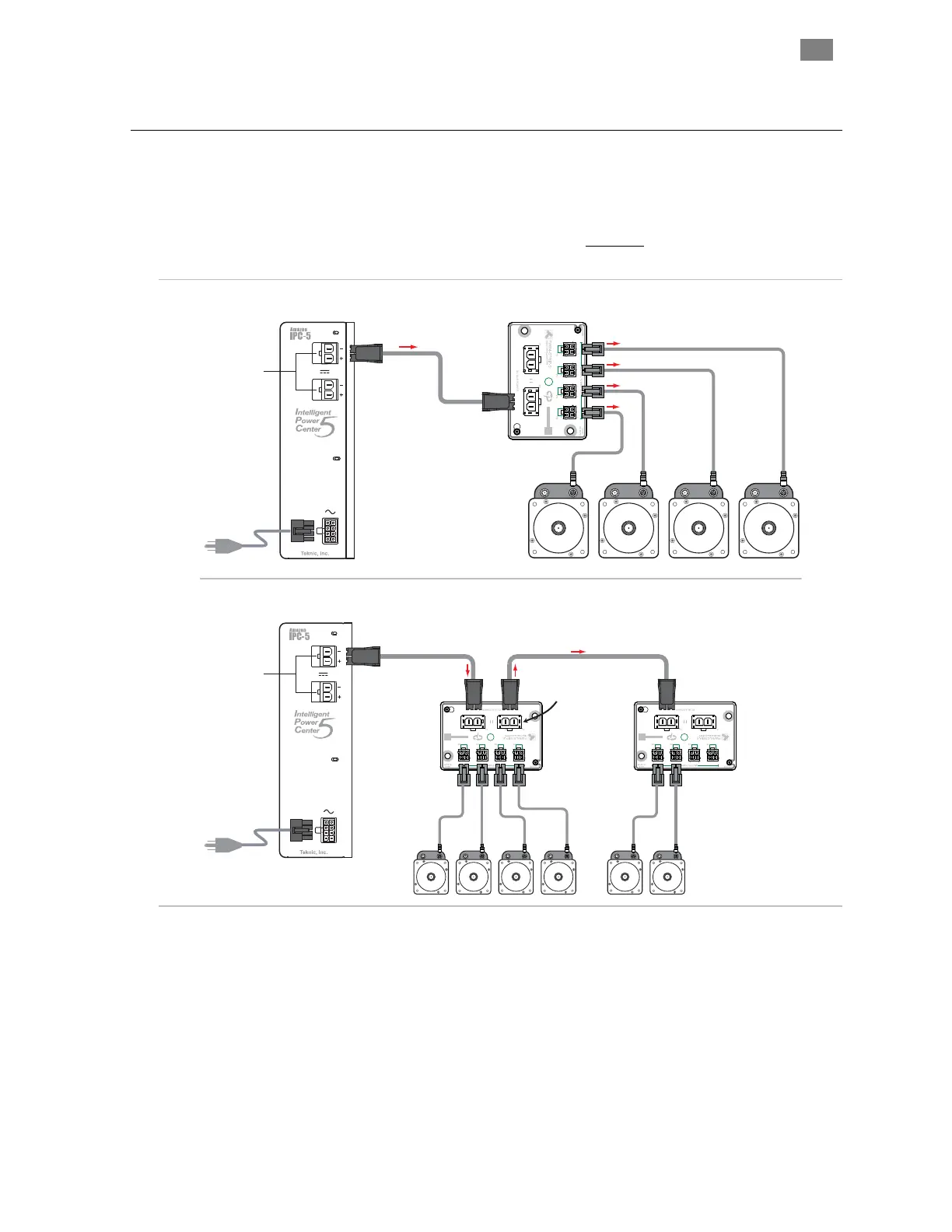

POWER4-STRIP-S boards powering ClearPath motors
POWER4-STRIP-S: T HINGS TO K NOW
x IMPORTANT: Never connect two IPC-3 or IPC-5 power supplies
to a single POWER4-HUB-S. The IPC series power supplies are
not designed to operate in parallel or series configurations.
x Do not "hot swap" DC power connectors. Turn off DC Bus
Motor Power Supply before connecting a motor to the POWER4-
STRIP-S. Connecting and disconnecting the motor from a live
T
