C LEAR P ATH -EC U SER M ANUAL REV 1.11 35
O UTPUT A PPLICATION E XAMPLES

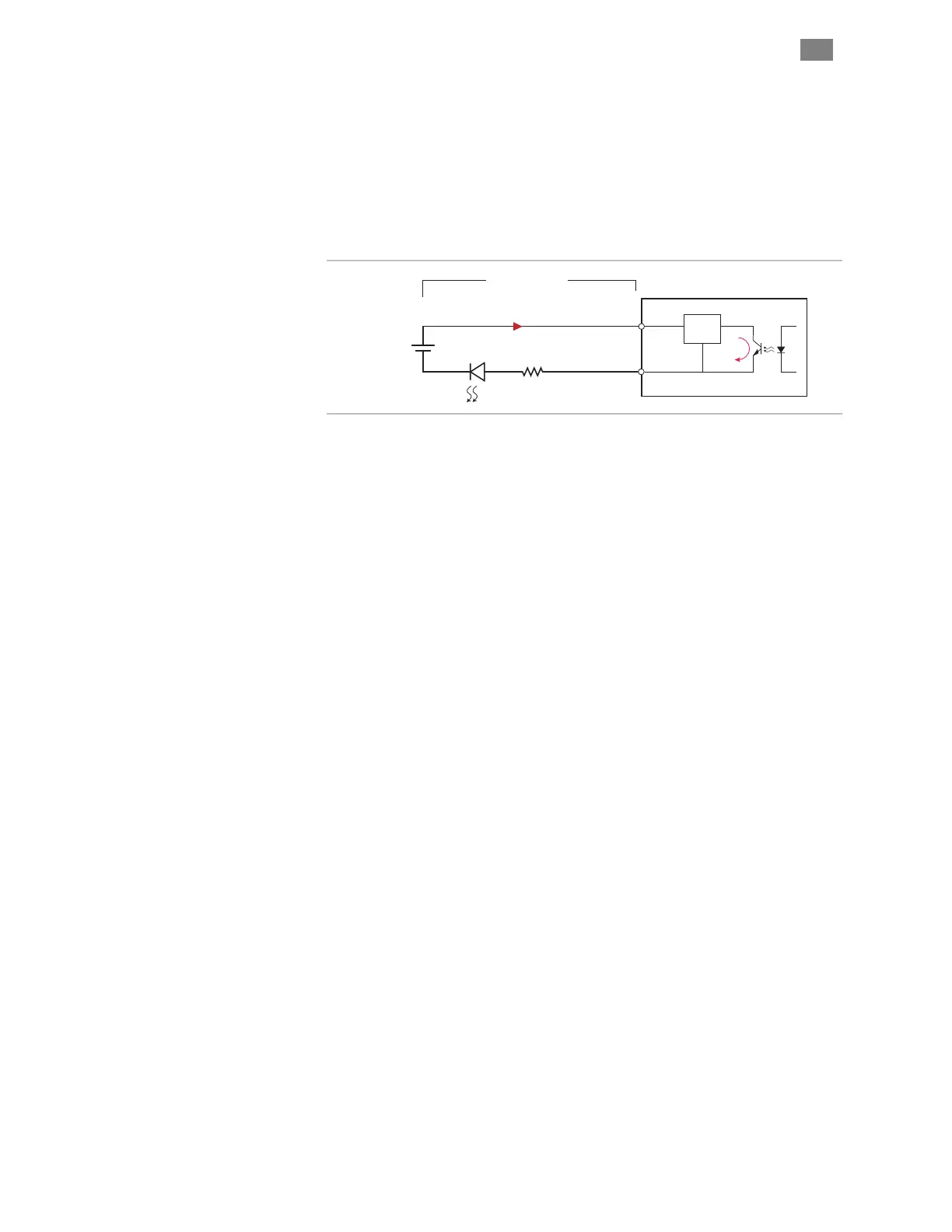

Driving an LED
The output circuits are not internally powered; they require an external 5–
24VDC power supply capable of supplying at least 10mA. In typical output
use, power is supplied by the PLC, control board, or an external supply.
See Appendix D for complete specifications.
User Circuit
A2 (B2)
A1 (B1)
ClearPath Internal
LED
+
-
5-24VDC
T
EKNIC , I NC . T EL . (585) 784-7454
