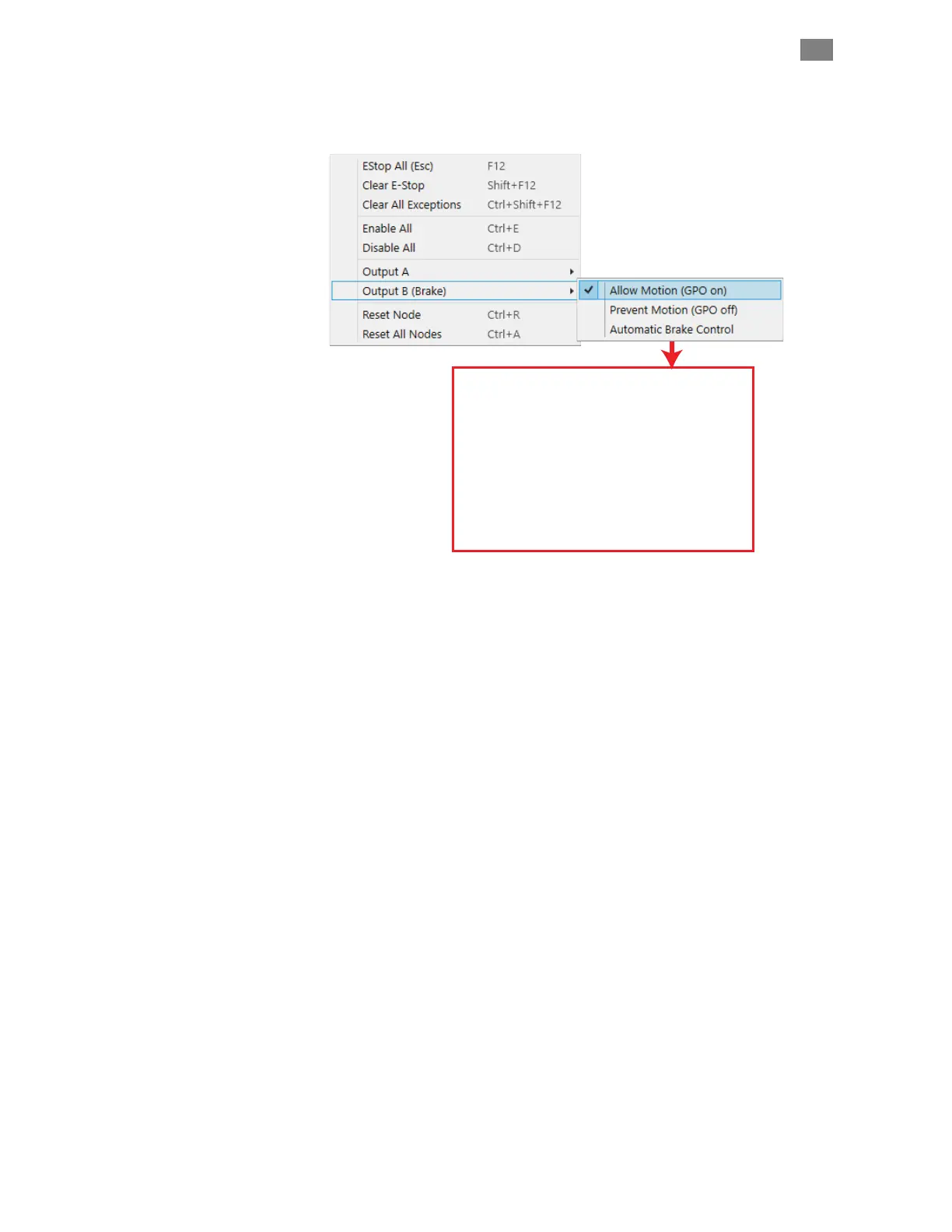

Output B (Brake). Lets the user manually control a brake (if Output B is
configured for brake control).
Allow Motion (GPO on)
Turns on the output. When selected, current flows in the brake
circuit causing a power-on type brake to release (allow motion).
External power required.
Prevent Motion (GPO off)
Turns the output off. When selected, current flow is inhibited in the
brake circuit. This would cause a power-on type brake to clamp
(disallow motion).
Automatic Brake Control
Automatically turns the output on (allows motion) when motor is
enabled, and turns the output off (prevents motion) when the
motor is disabled.
