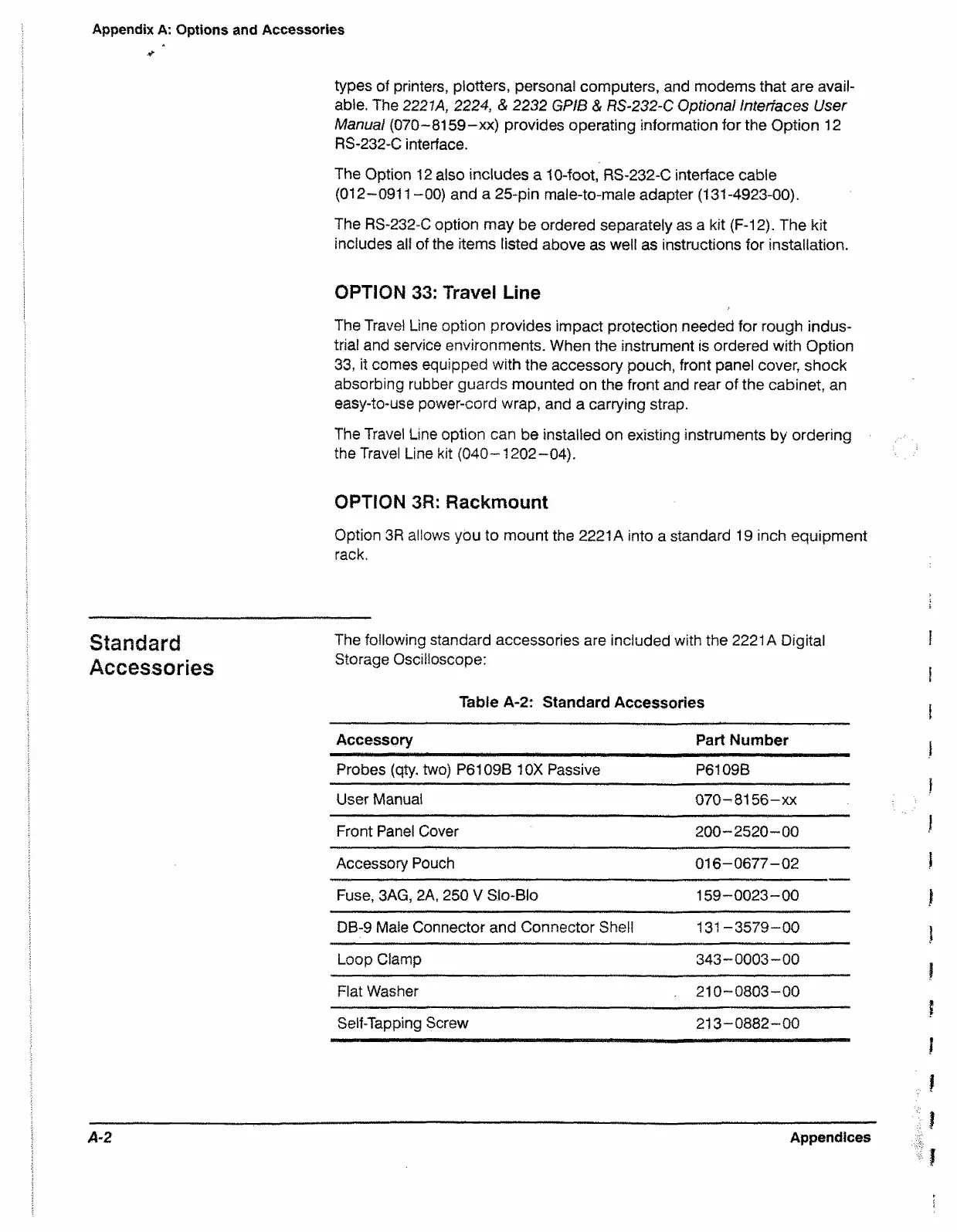

Appendix A: Options and Accessories
types of printers, plotters, personal computers, and modems that are avail
able. The 2221A, 2224, & 2232 GPtB & RS-232-C Optional Interfaces User
Manual (070-8159-xx) provides operating information for the Option 12
RS-232-C interface.
The Option 12 also includes a 10-foot, RS-232-C interface cable
(012-0911 -00) and a 25-pin male-to-male adapter (131-4923-00).
The RS-232-C option may be ordered separately as a kit (F-12). The kit
includes all of the items listed above as well as instructions for installation.
OPTION 33: Travel Line
The Travel Line option provides impact protection needed for rough indus
trial and service environments. When the instrument is ordered with Option
33, it comes equipped with the accessory pouch, front panel cover, shock
absorbing rubber guards mounted on the front and rear of the cabinet, an
easy-to-use power-cord wrap, and a carrying strap.
The Travel Line option can be installed on existing instruments by ordering
the Travel Line kit (040-1202-04).
OPTION 3R: Rackmount
Option 3R allows you to mount the 2221A into a standard 19 inch equipment
rack.
S ta n d a rd The ^oilowin9 Standard accessories are included with the 2221A Digital
Accessories storage 0scillosc°Pe:
Table A-2: Standard Accessories
Accessory
Part Number
Probes (qty. two) P6109B 10X Passive P6109B
User Manual
070-8156-xx
Front Panel Cover 200-2520-00
Accessory Pouch
016-0677-02
Fuse, 3AG, 2A, 250 V Slo-Blo 159-0023-00
DB-9 Male Connector and Connector Shell
131-3579-00
Loop Ciamp 343-0003-00
Flat Washer
, 210-0803-00
Self-Tapping Screw
213-0882-00
A-2
Appendices
