Front Panel

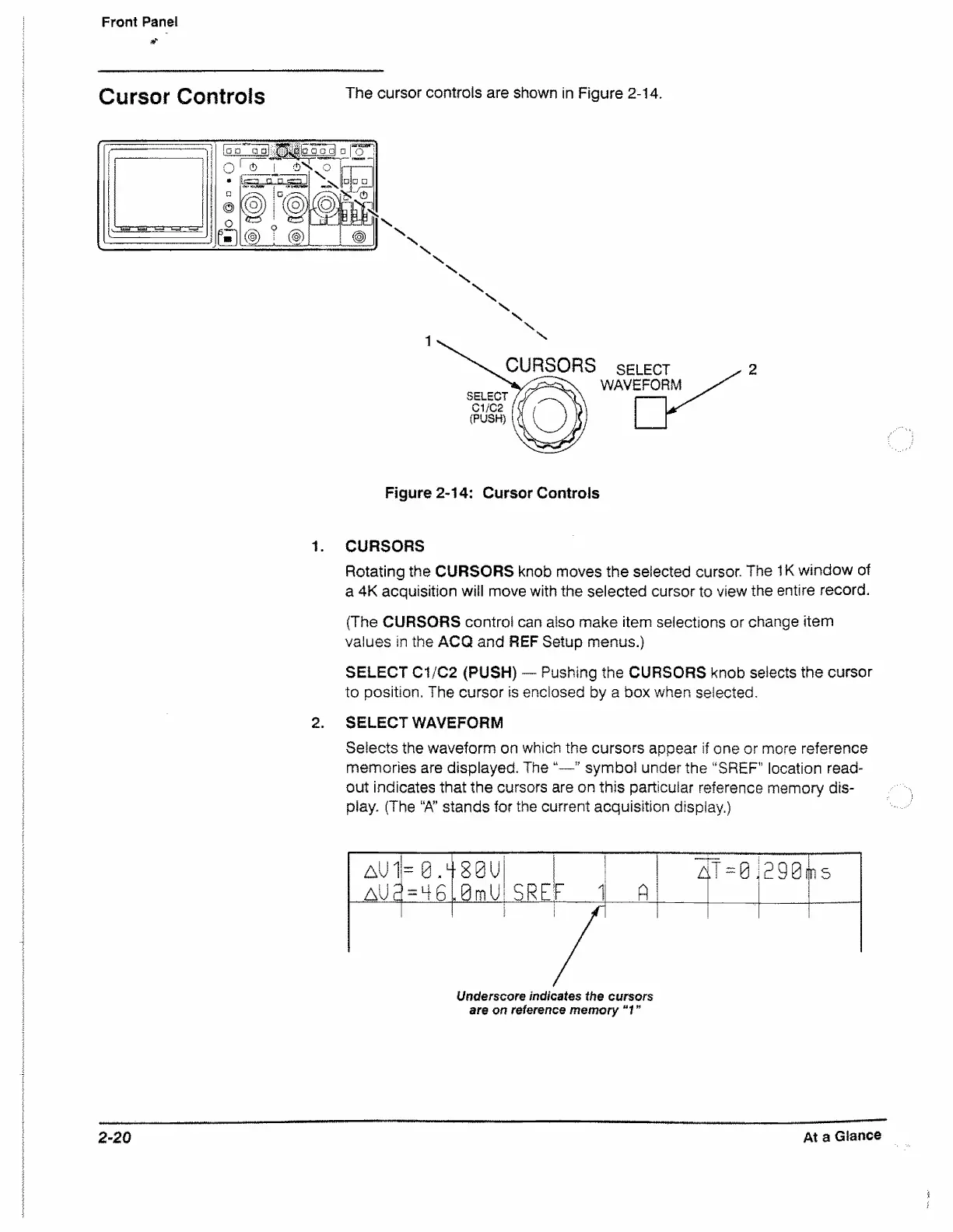

Cursor Controls The cursor controls are shown in Figure 2-14.
Figure 2-14: Cursor Controls
1. CURSORS
Rotating the CURSORS knob moves the selected cursor. The IK window of
a 4K acquisition will move with the selected cursor to view the entire record.
(The CURSORS control can also make item selections or change item
values in the ACQ and REF Setup menus.)
SELECT C1/C2 (PUSH) — Pushing the CURSORS knob selects the cursor
to position. The cursor is enclosed by a box when selected.
2. SELECT WAVEFORM
Selects the waveform on which the cursors appear if one or more reference
memories are displayed. The ” symbol under the “SREF" location read
out indicates that the cursors are on this particular reference memory dis
play. (The “A" stands for the current acquisition display.)
Underscore indicates the cursors
are on reference memory U1 ”
2-20
At a Glance
