XY Setup
Generates a pattern for calibrating analog X-Y plotter gain and offset.
Start
Initiates transmission of the waveform display over the X-Y plotter or commu
nications option.
Advanced Functions
Menu
The Advanced Functions menu (Figure 2-24) provides access to various
other diagnostics and setup functions.
---------------------------------------------------------- - ------ -
A
F
DVA
ush
NCE
SETI|
D Ft
LIRA]
NOTION
DV FUNG
S
ET 6*
jtton
to exit
I s *
ptupl
:Ful
Setup
&:Enr
pty
t
+
-
I
-
1 y 1
-
t
j i
| i
o%* • •
j
„ t
1 _ j
saye
| j J
f'Dfa
j Me
g ruqm m j setup | j ; Fact. \
nu | Menu ! Mesnu | ! j Reset !
1 T — f j— ---------- r ~ 1 ---------- j p
f SAVE REF Q v 'i ON/OfF ~ 3 ' ' / 1

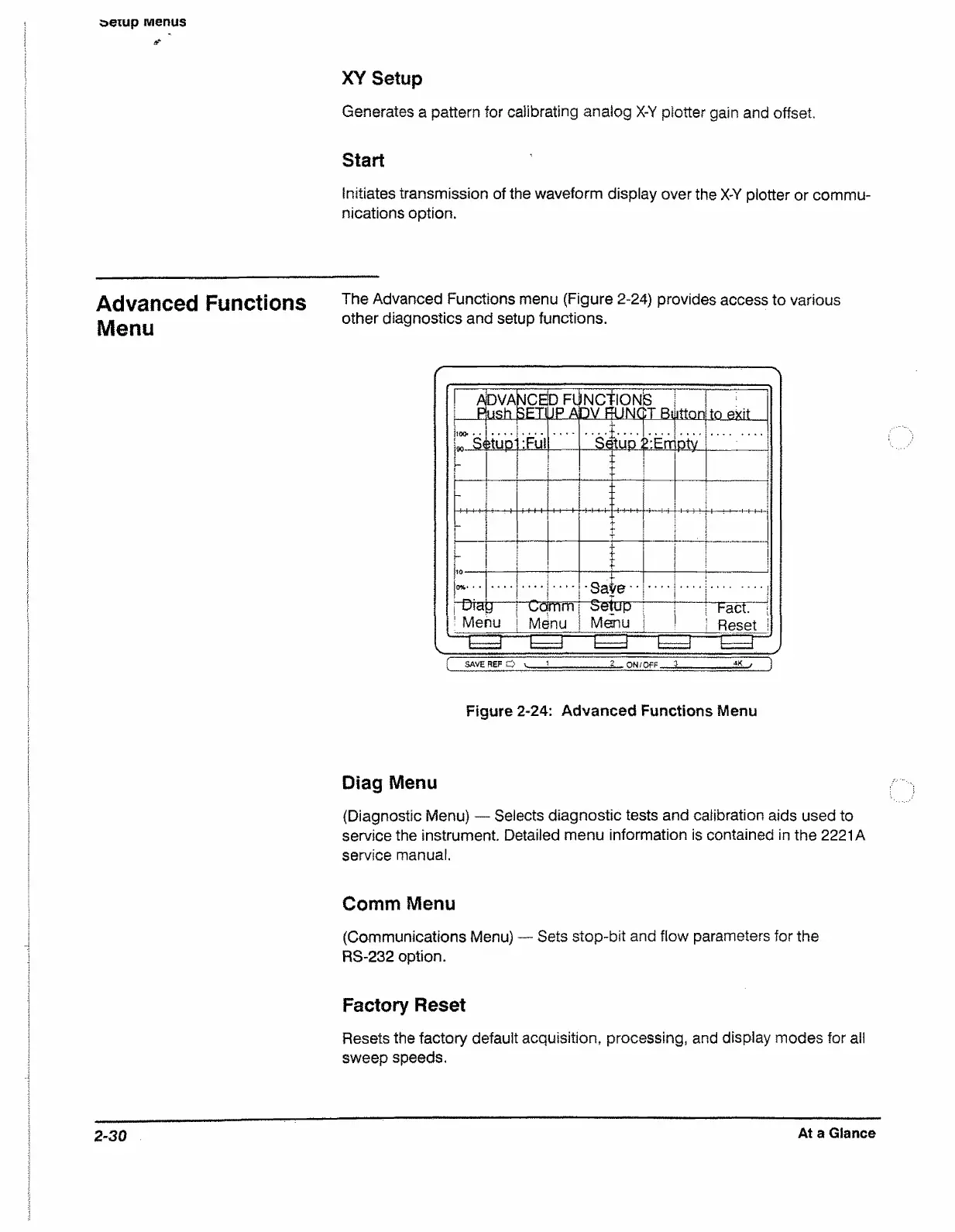

Figure 2-24: Advanced Functions Menu
Diag Menu
(Diagnostic Menu) — Selects diagnostic tests and calibration aids used to
service the instrument Detailed menu information is contained in the 2221A
service manual.
Comm Menu
(Communications Menu) —- Sets stop-bit and flow parameters for the
RS-232 option.
Factory Reset
Resets the factory default acquisition, processing, and display modes for all
sweep speeds.
