Tektronix 2221A User Manual

Appendix 8: Specification

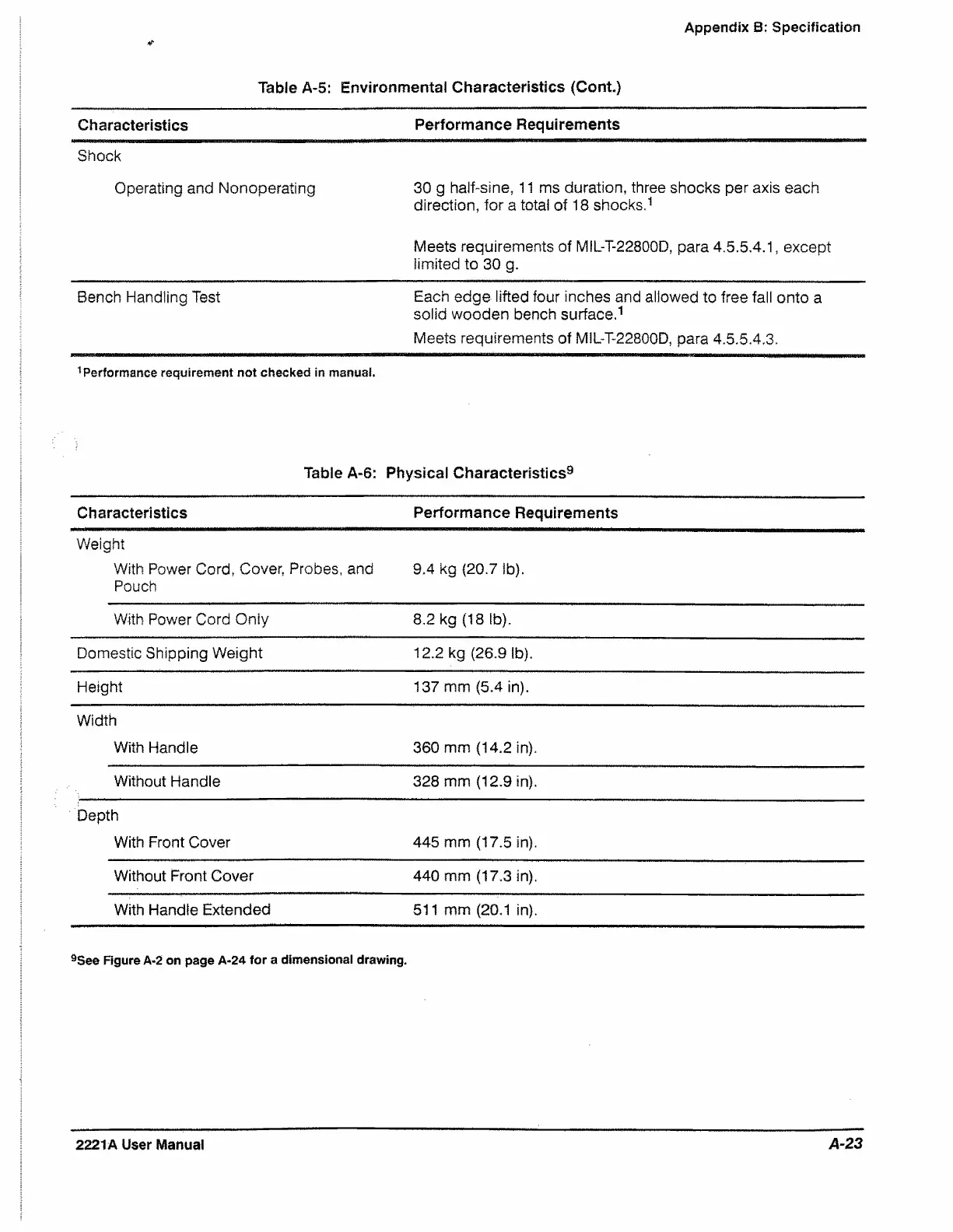

Table A-5: Environmental Characteristics (Cont.)
Characteristics
Performance Requirements
Shock
Operating and Nonoperating
30 g half-sine, 11 ms duration, three shocks per axis each
direction, for a total of 18 shocks.1
Meets requirements of MIL-T-22800D, para 4.5.5.4.1, except
limited to 30 g.
Bench Handling Test Each edge lifted four inches and allowed to free fall onto a
solid wooden bench surface.1
Meets requirements of MIL-T-22800D, para 4.5.S.4.3.
Performance requirement not checked in manual.
Table A-6^
Physical Characteristics9
Characteristics
Performance Requirements
Weight
With Power Cord, Cover, Probes, and
Pouch
9.4 kg {20.7 lb).
With Power Cord Only
8.2 kg (18 lb).
Domestic Shipping Weight 12.2 kg (26.9 lb).
Height 137 mm (5.4 in).
Width
With Handle
360 mm (14.2 in).
Without Handle 328 mm (12.9 in).
Depth
With Front Cover
445 mm (17.5 in).
Without Front Cover 440 mm (17.3 in).
With Handle Extended 511 mm (20.1 in).
9See Figure A-2 on page A-24 for a dimensional drawing.
2221A User Manual
A-23
