Save Reference
Memory Buttons

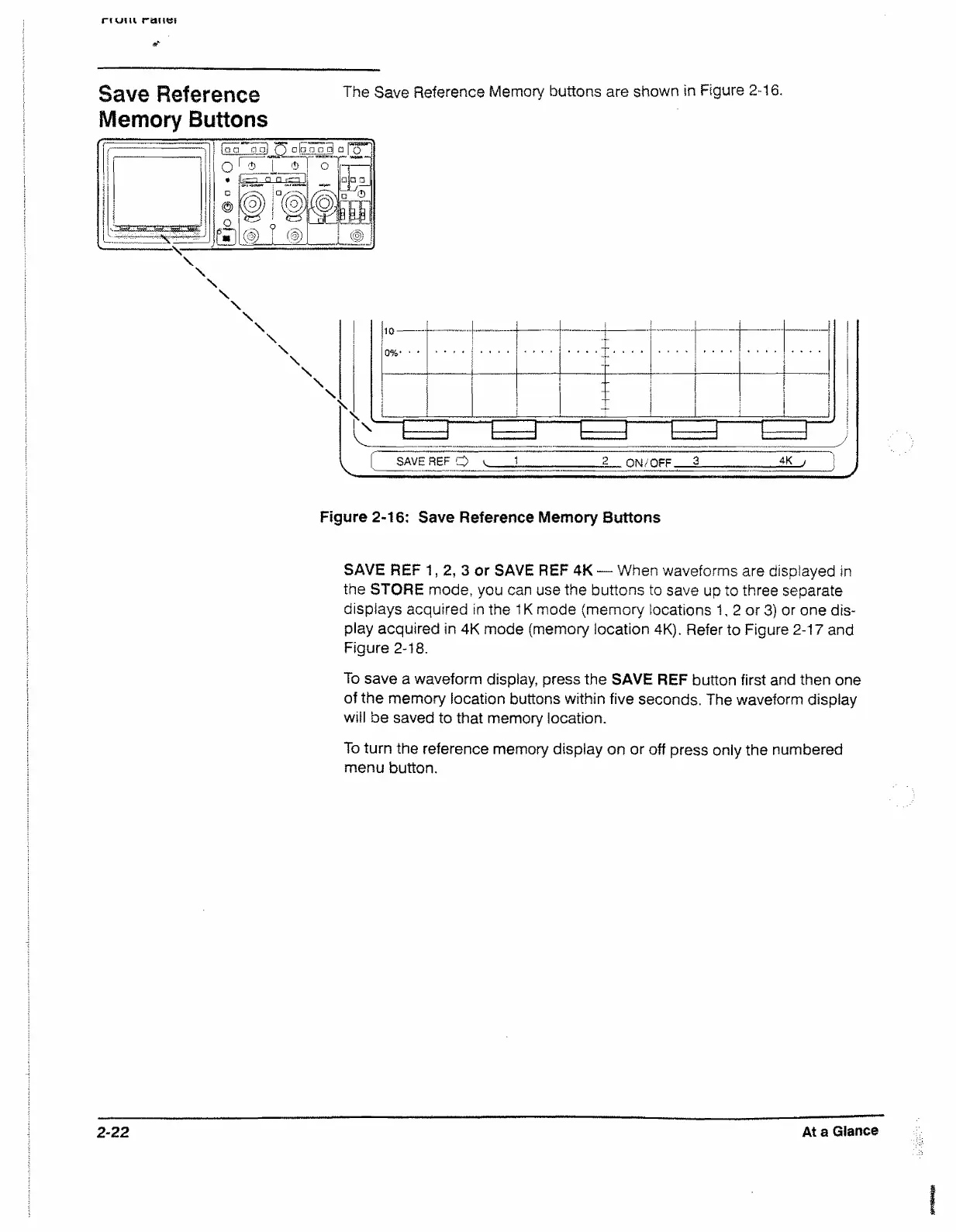

The Save Reference Memory buttons are shown in Figure 2-16.
\
\
\
\
\
\
\
\
\
\
\
\
f SAVE REF Q
2 ON/OFF ___ 1
1
Q%* ■ •
4K
Figure 2-16: Save Reference Memory Buttons
SAVE REF 1,2, 3 or SAVE REF 4K — When waveforms are displayed in
the STORE mode, you can use the buttons to save up to three separate
displays acquired in the 1K mode (memory locations 1, 2 or 3) or one dis
play acquired in 4K mode (memory location 4K). Refer to Figure 2-17 and
Figure 2-18.
To save a waveform display, press the SAVE REF button first and then one
of the memory location buttons within five seconds. The waveform display
will be saved to that memory location.
To turn the reference memory display on or off press only the numbered
menu button.
