Display Menu
The Display menu allows you to configure cursor time readout, smoothing
and vectors (Figure 2-22).
D
P
ISPL
ush
AY
RFTiJJELD
LSEL
AYE
LUffQJ
i to exit .
s
L
r
-
ON
AT
ON
OF]
i n 1
kT OF
F
Air
V
A _ T
I
■irr
Dis
play
Sm
oothj Vector
1
1
t
( SAVE REF Q
, ON/OFF.

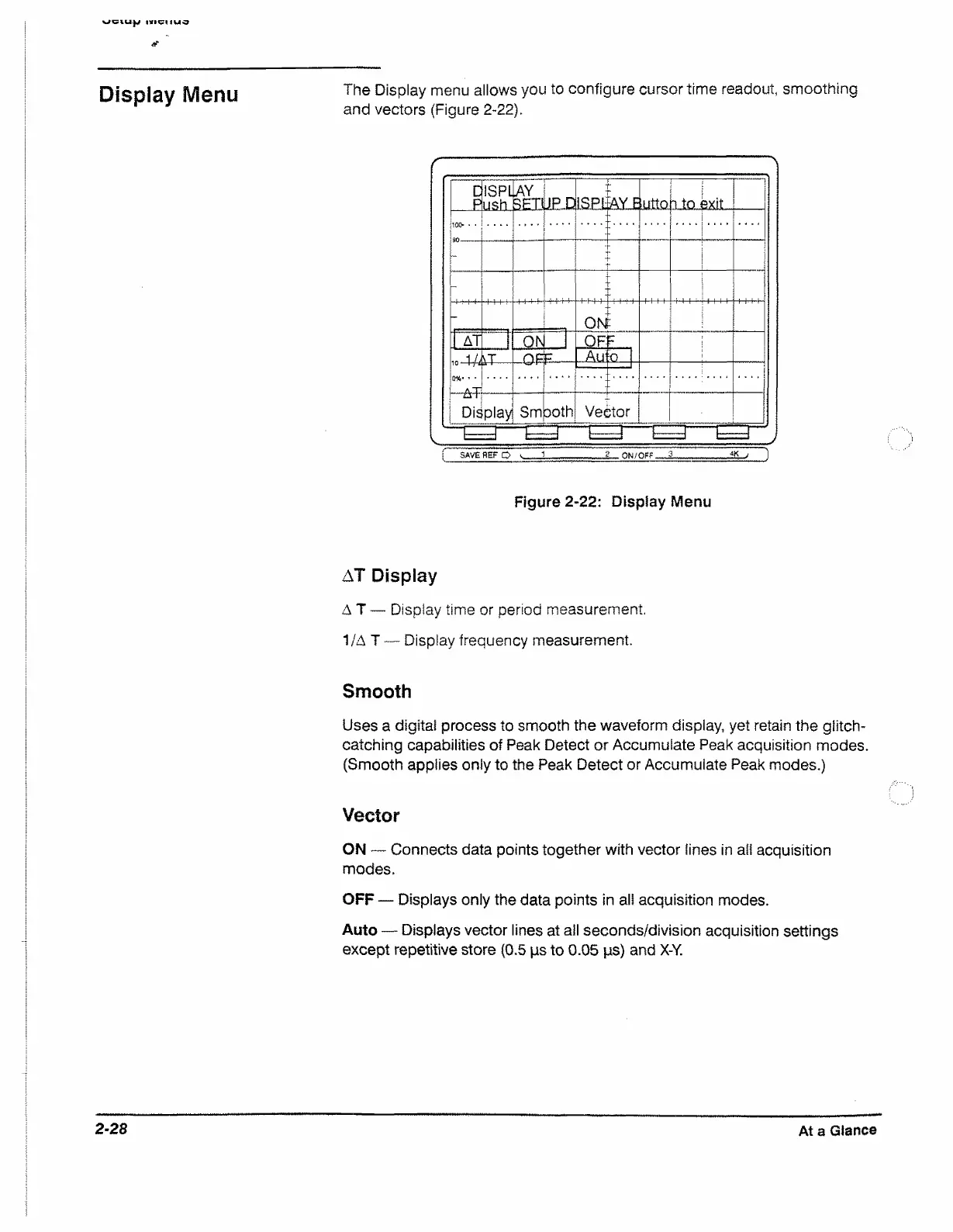

Figure 2-22: Display Menu
AT Display
AT — Display time or period measurement.
1 M T - Display frequency measurement.
Smooth
Uses a digital process to smooth the waveform display, yet retain the glitch-
catching capabilities of Peak Detect or Accumulate Peak acquisition modes.
(Smooth applies only to the Peak Detect or Accumulate Peak modes.)
Vector
ON — Connects data points together with vector lines in ad acquisition
modes.
OFF — Displays only the data points in all acquisition modes.
Auto — Displays vector lines at all seconds/division acquisition settings
except repetitive store (0.5 ps to 0.05 ps) and X-Y.
