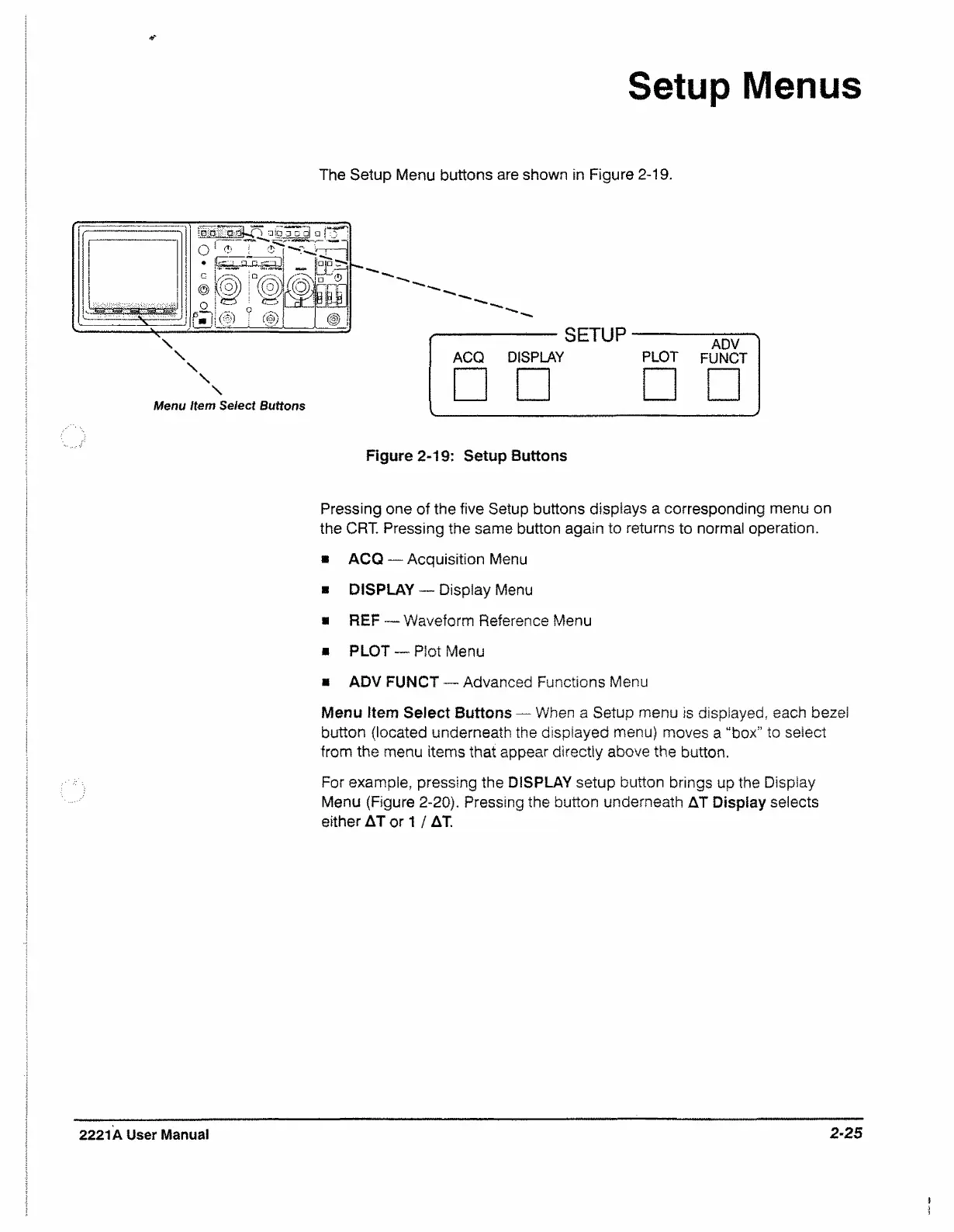

Setup Menus

The Setup Menu buttons are shown in Figure 2-19.

Menu Item Select Buttons

SETUP

ACQ DISPLAY

PLOT

ADV

FUNCT

Figure 2-19: Setup Buttons

Pressing one of the five Setup buttons displays a corresponding menu on

the CRT Pressing the same button again to returns to norma! operation.

■ ACQ — Acquisition Menu

* DISPLAY — Display Menu

* REF — Waveform Reference Menu

■ PLOT — Plot Menu

■ ADV FUNCT — Advanced Functions Menu

Menu Item Select Buttons — When a Setup menu is displayed, each bezel

button (located underneath the displayed menu) moves a “box” to select

from the menu items that appear directly above the button.

For example, pressing the DISPLAY setup button brings up the Display

Menu (Figure 2-20). Pressing the button underneath AT Display selects

either AT or 1 / AT.

2221A User Manual

2-25
