Displaying signals

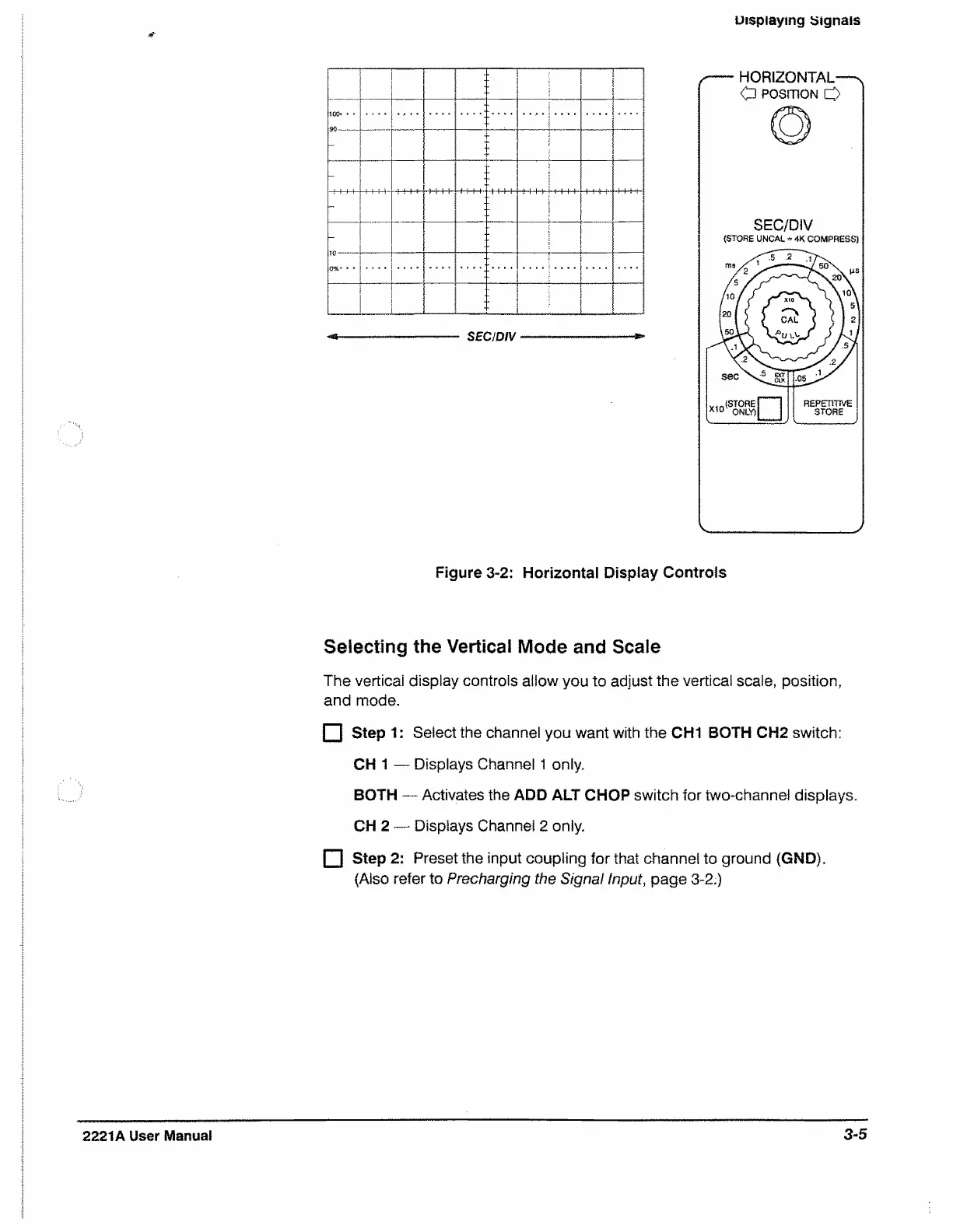

Figure 3-2: Horizontal Display Controls

Selecting the Vertical Mode and Scale

The vertical display controls allow you to adjust the vertical scale, position,

and mode.

I- ! Step 1: Select the channel you want with the CHI BOTH CH2 switch:

CH I — Displays Channel 1 only.

BOTH — Activates the ADD ALT CHOP switch for two-channel displays.

CH 2 — Displays Channel 2 only.

n Step 2: Preset the input coupling for that channel to ground (GND).

(Also refer to Precharging the Signal input, page 3-2.)

2221A User Manual

3-5
