Displaying Signals

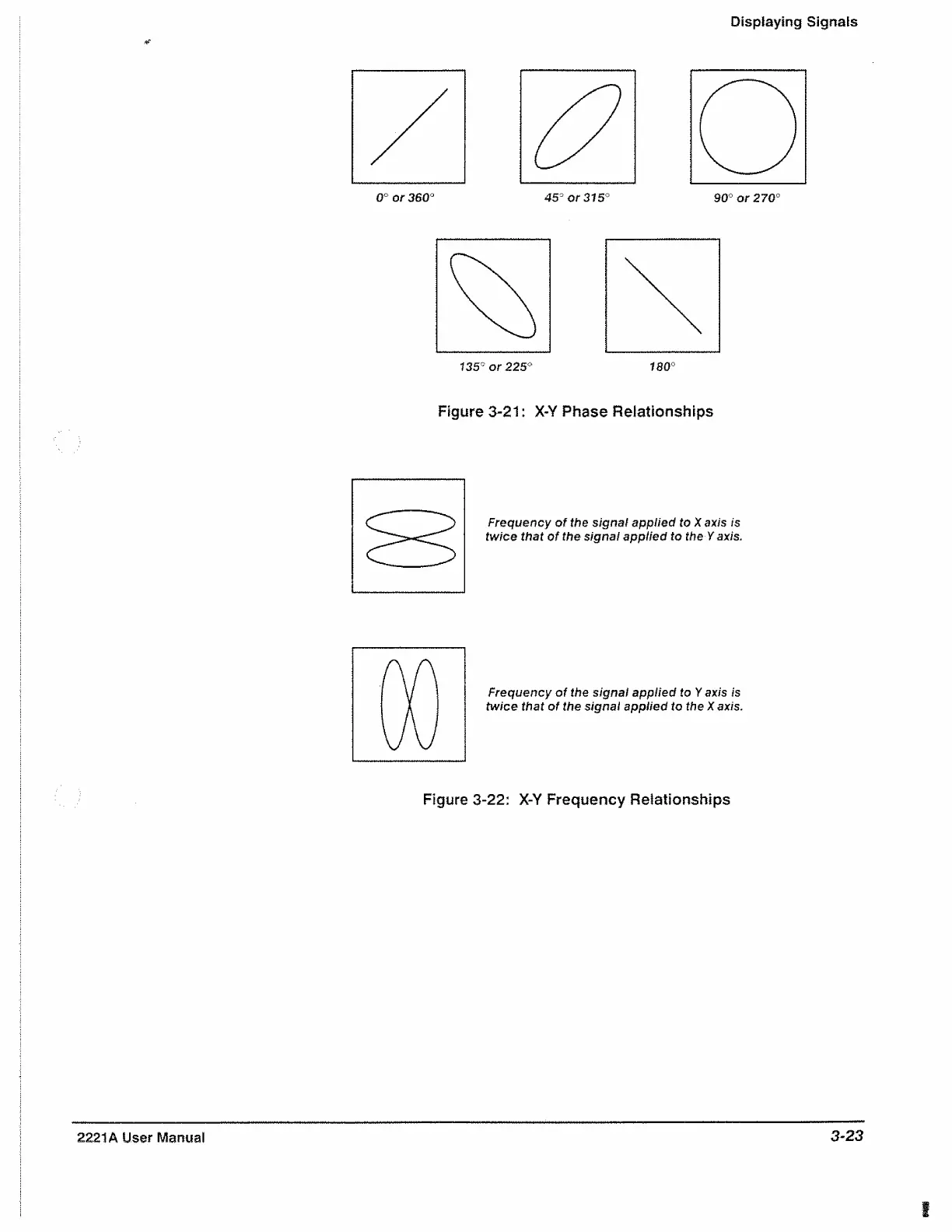

Figure 3-21: X-Y Phase Relationships

Frequency of the signal applied to X axis is

twice that of the signal applied to the Y axis.

Frequency of the signal applied to Y axis is

twice til at of the signal applied to the X axis.

Figure 3-22: X-Y Frequency Relationships

2221A User Manual

3-23
