Start Up

Installation &

Power On

Before you use the 2221A Digital Storage Oscilloscope, ensure that it is

properly installed and powered on.

To install and power on the 2221A Digital Storage Oscilloscope, perform the

following steps:

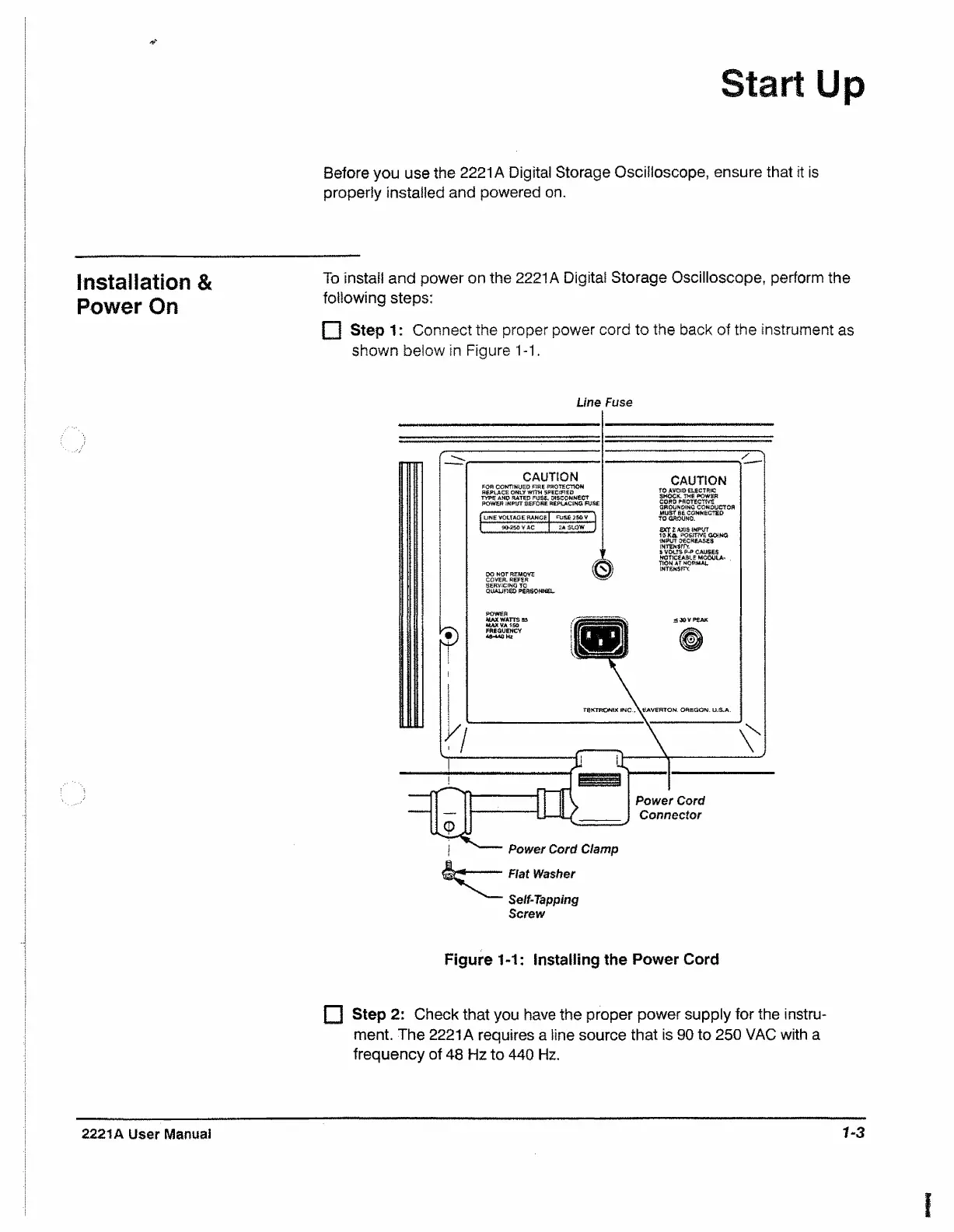

|~1 Step 1: Connect the proper power cord to the back of the instrument as

shown below in Figure 1 -1.

Line Fuse

Screw

Figure 1-1: Installing the Power Cord

|~| Step 2: Check that you have the proper power supply for the instru

ment. The 2221A requires a line source that is 90 to 250 VAC with a

frequency of 48 Hz to 440 Hz.
