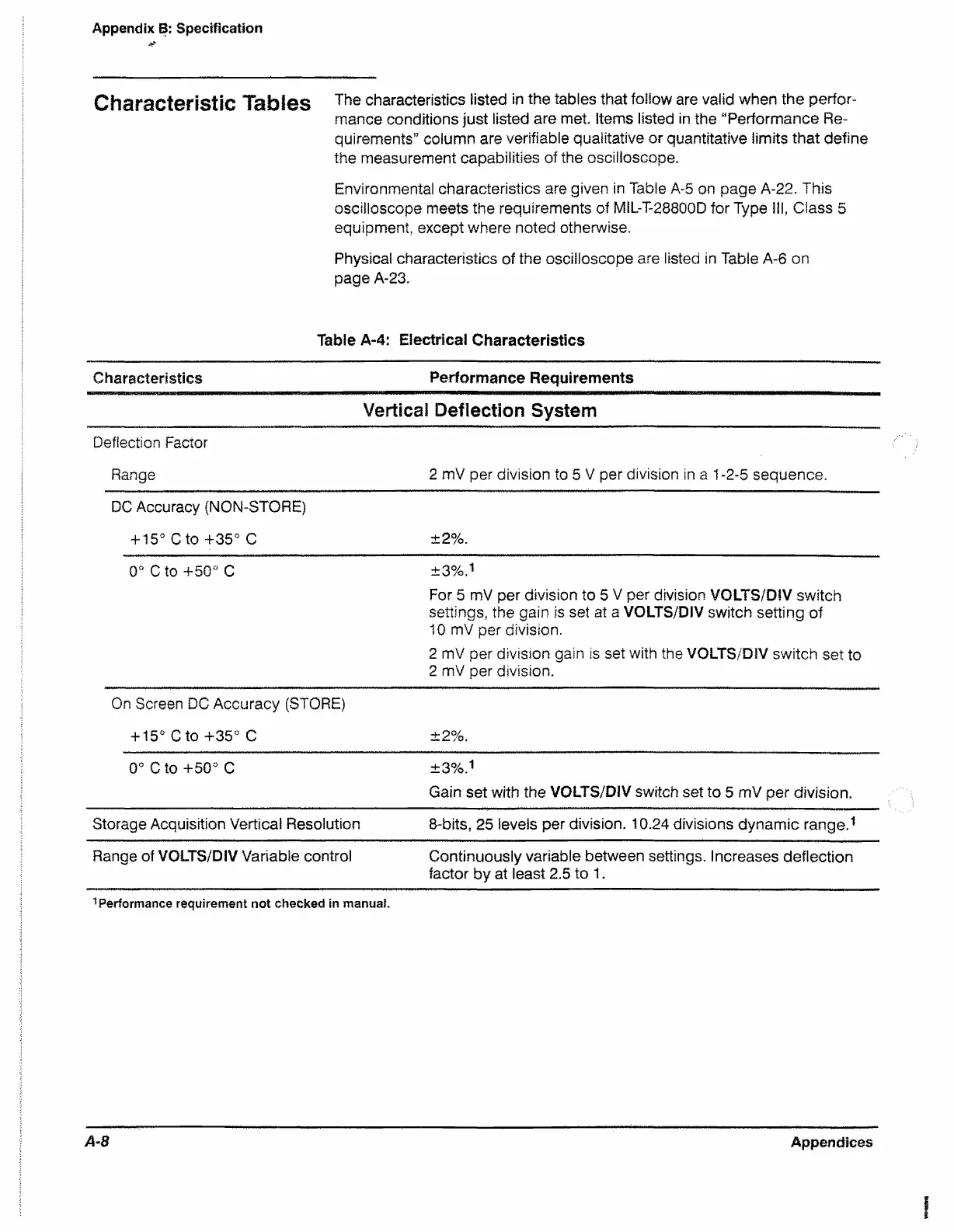

Appendix B: Specification
Characteristic Tables The characteristics listed in the tables that follow are valid when the perfor
mance conditions just listed are met. Items listed in the “Performance Re
quirements" column are verifiable qualitative or quantitative limits that define
the measurement capabilities of the oscilloscope.
Environmental characteristics are given in Table A-5 on page A-22. This
oscilloscope meets the requirements of MIL-T-28800D for Type Ml, Class 5
equipment, except where noted otherwise.
Physical characteristics of the oscilloscope are listed in Table A-6 on
page A-23.
Table A-4: Electrical Characteristics
Characteristics
Performance Requirements
Vertical Deflection System
Deflection Factor
Range
2 mV per division to 5 V per division in a 1-2-5 sequence.
DC Accuracy {NON-STORE)
+ 15° C to +35° C
±2%.
0° C to +50° C
±3%.1
For 5 mV per division to 5 V per division VOLTS/DIV switch
settings, the gain is set at a VOLTS/DIV switch setting of
10 mV per division.
2 mV per division gain is set with the VOLTS/DIV switch set to
2 mV per division.
On Screen DC Accuracy (STORE)
+ 15° C to +35° C
±2%.
0° Cto +50° C
±3%1
Gain set with the VOLTS/DIV switch set to 5 mV per division.
Storage Acquisition Vertical Resolution 8-bits, 25 levels per division. 10.24 divisions dynamic range.1
Range of VOLTS/DIV Variable control Continuously variable between settings. Increases deflection
factor by at least 2.5 to 1.
1 Performance requirement not checked in manual.
