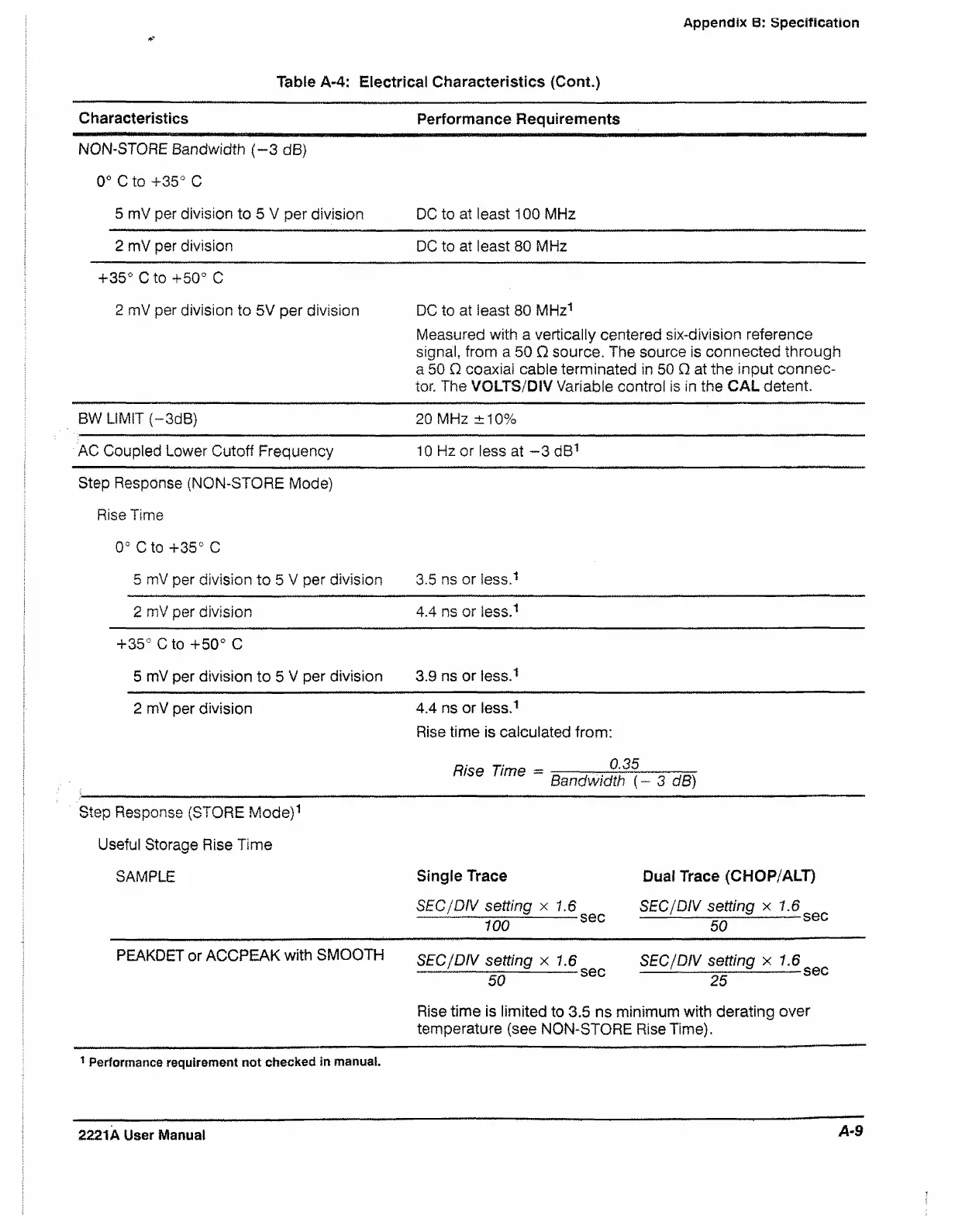

Table A-4: Electrical Characteristics (Com.)
Characteristics
Performance Requirements
NON-STORE Bandwidth (-3 dB)
0° C to +35° C
5 mV per division to 5 V per division
DC to at least 100 MHz
2 mV per division DC to at least 80 MHz
+35° C to +50° C
2 mV per division to 5V per division
DC to at least 80 MHz1
Measured with a vertically centered six-division reference
signal, from a 50 Q source. The source is connected through
a 50 O coaxial cable terminated in 50 Q at the input connec
tor. The VOLTS/DIV Variable control is in the CAL detent.
BW LIMIT (~3dB) 20 MHz ±10%
AC Coupled Lower Cutoff Frequency
10 Hz or less at -3 dB1
Step Response (NON-STORE Mode)
Rise Time
0° C to +35" C
5 mV per division to 5 V per division
3.5 ns or less.1
2 mV per division 4.4 ns or less.1
+35° Cto +50° C
5 mV per division to 5 V per division
3.9 ns or less.1
2 mV per division
4.4 ns or less.1
Rise time is calculated from:
RiSe Vme =
Step Response (STORE Mode)1
Useful Storage Rise Time
SAMPLE
Single Trace Dual Trace (CHOP/ALT)
SEC/DIV setting x 1,6 __ SEC/DIV setting x 1.6 ^
---------- —zrp,tx----------------------S 6C ----------------- ‘— FTv--------------------'"S 6
PEAKDET or ACCPEAK with SMOOTH SEC/DIV setting x 1.6 SEC/DIV setting x 1.6
50 25
Rise time is limited to 3.5 ns minimum with derating over
temperature (see NON-STORE Rise Time).
1 Performance requirement not checked in manual.
