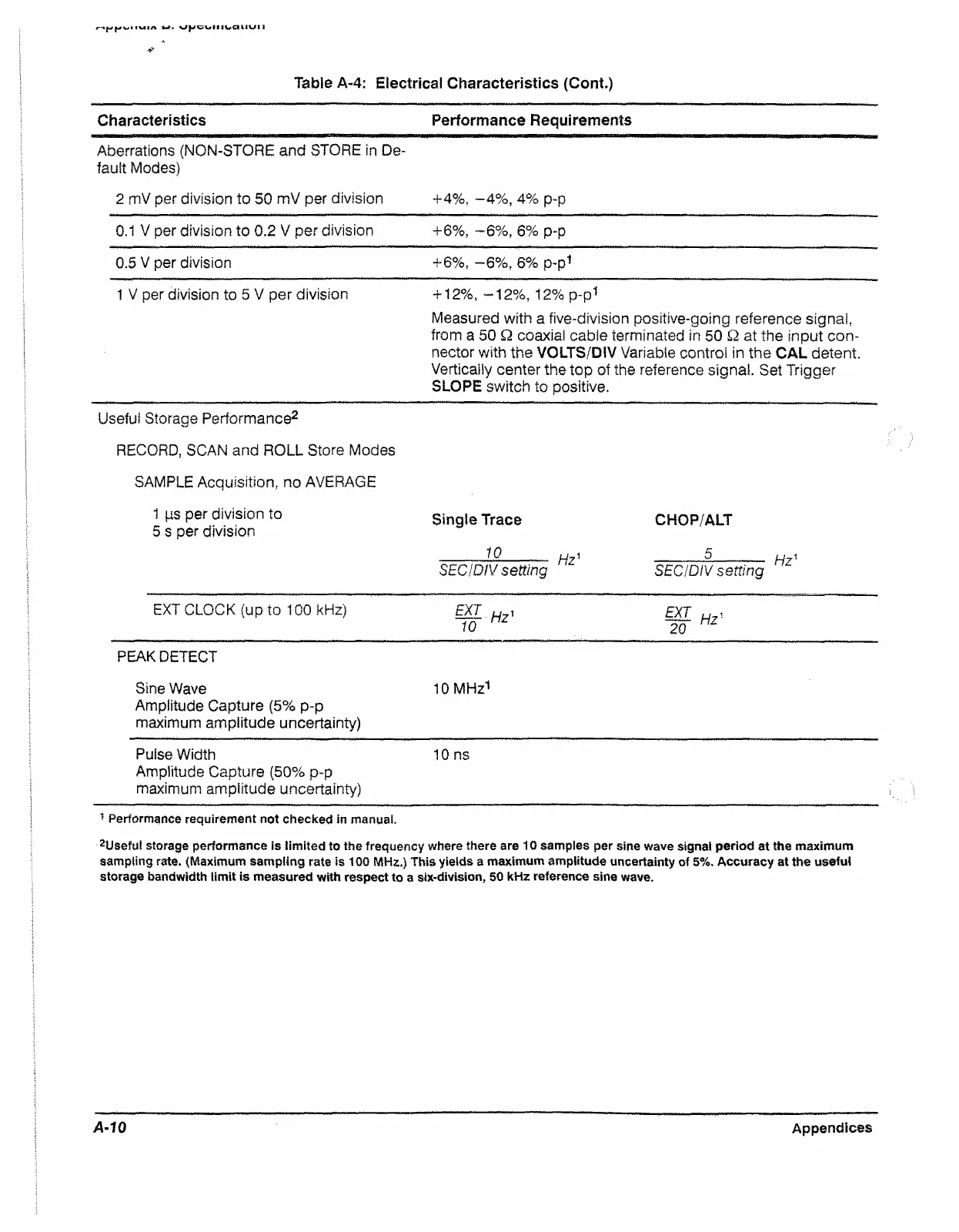

Table A-4: Electrical Characteristics (Cont.)
Characteristics Performance Requirements
Aberrations (NON-STORE and STORE in De
fault Modes)
2 mV per division to 50 mV per division 4*4%, —4%, 4% p-p
0,1 V per division to 0.2 V per division
+6%, -6%, 6% p-p
0.5 V per division 4*6%, -6%, 6% p-p1
1 V per division to 5 V per division
4-12%, -12%, 12% p-p1
Measured with a five-division positive-going reference signal,
from a 50 Q coaxial cable terminated in 50 Q at the input con
nector with the VOLTS/DIV Variable control in the CAL detent.
Vertically center the top of the reference signal. Set Trigger
SLOPE switch to positive.
Useful Storage Performance2
RECORD, SCAN and ROLL Store Modes
SAMPLE Acquisition, no AVERAGE
1 ps per division to Sing}e Trace
5 s per division
10
SECIDIV setting
CHOP/ALT
SECIDIV setting Hz'
EXT CLOCK {up to 100 kHz) EXT H ,
10
EXT /j,i
”20" H‘
PEAK DETECT
Sine Wave 10 MHz1
Amplitude Capture {5% p-p
maximum amplitude uncertainty)
Pulse Width 10 ns
Amplitude Capture (50% p-p
maximum amplitude uncertainty) 1 2
1 Performance requirement not checked in manual.
2Usefui storage performance is limited to the frequency where there are 10 samples per sine wave signal period at the maximum
sampling rate. (Maximum sampling rate is 100 MHz.) This yields a maximum amplitude uncertainty of 5%. Accuracy at the useful
storage bandwidth limit is measured with respect to a six-division, 50 kHz reference sine wave.
