Tektronix 2221A User Manual

Appendix C: Performance Verification

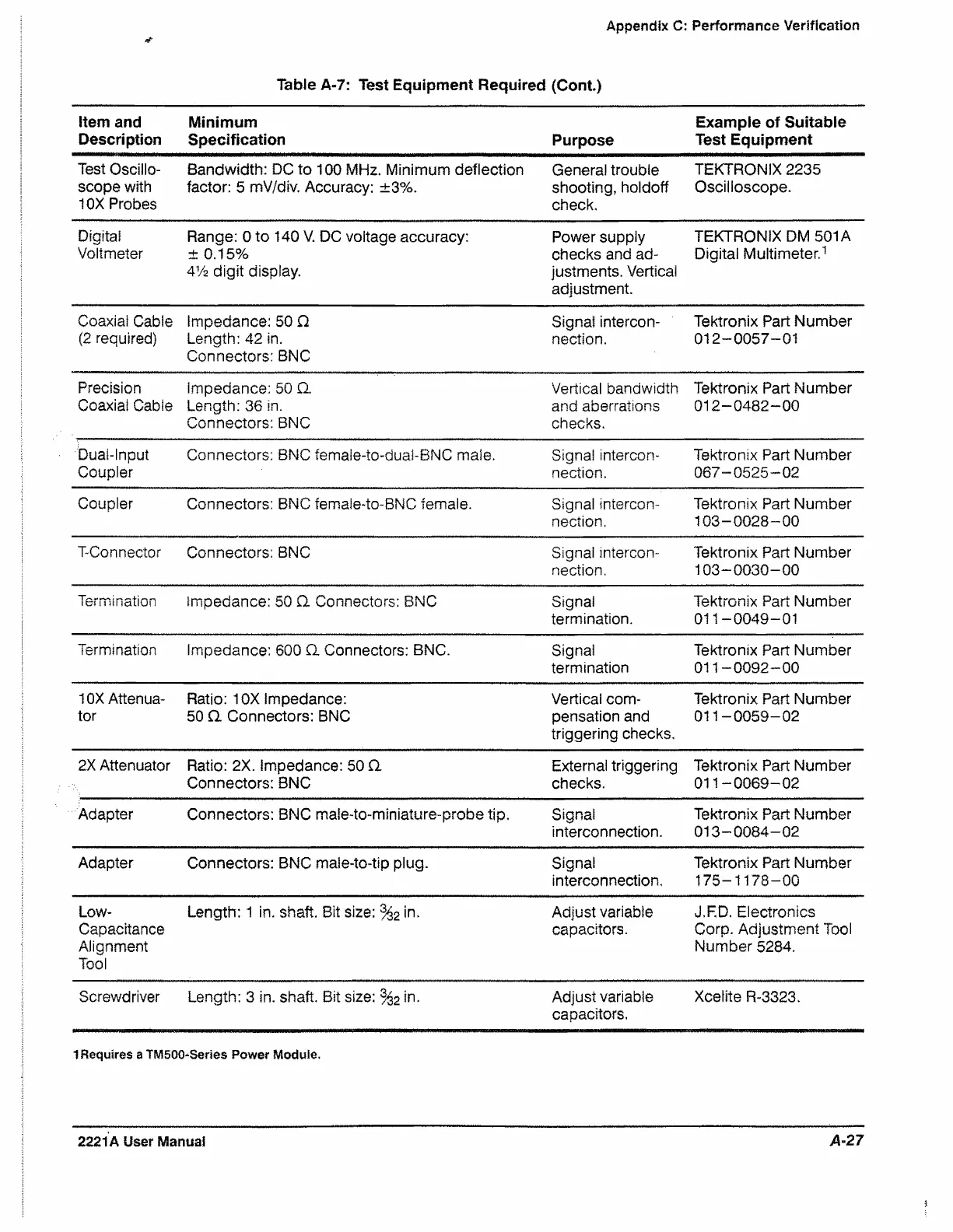

Table A-7: Test Equipment Required (Cont.)
Item and
Description
Minimum
Specification
Purpose
Example of Suitable
Test Equipment
Test Oscillo
scope with
10X Probes
Bandwidth: DC to 100 MHz. Minimum deflection
factor: 5 mV/div. Accuracy: ±3%.
General trouble
shooting, holdoff
check.
TEKTRONIX 2235
Oscilloscope.
Digital
Voltmeter
Range: 0 to 140 V. DC voltage accuracy:
± 0.15%
4Vs digit display.
Power supply
checks and ad
justments. Vertical
adjustment.
TEKTRONIX DM 501A
Digital Multimeter.1
Coaxial Cable
(2 required)
Impedance: 50 Q
Length: 42 in.
Connectors: BNC
Signal intercon
nection.
Tektronix Part Number
012-0057-01
Precision
Coaxial Cable
impedance: 50 Q.
Length: 36 in.
Connectors: BNC
Vertical bandwidth
and aberrations
checks.
Tektronix Part Number
012-0482-00
Dual-Input
Coupler
Connectors; BNC female-to-dual-BNC male.
Signal intercon
nection.
Tektronix Part Number
067-0525-02
Coupler
Connectors: BNC femaie-to-BNC female. Signal intercon
nection.
Tektronix Part Number
103-0028-00
T- Connector
Connectors: BNC
Signal intercon
nection.
Tektronix Part Number
103-0030-00
Termination
impedance: 50 Q. Connectors: BNC Signal
termination.
Tektronix Part Number
011-0049-01
Termination
Impedance: 600 Cl Connectors: BNC.
Signal
termination
Tektronix Part Number
011-0092-00
10X Attenua
tor
Ratio: 10X Impedance:
50 Q Connectors: BNC
Vertical com
pensation and
triggering checks.
Tektronix Part Number
011-0059-02
2X Attenuator
Ratio: 2X. Impedance: 50 Q.
Connectors: BNC
External triggering
checks.
Tektronix Part Number
011-0069-02
Adapter
Connectors: BNC maie-to-miniature-probe tip. Signal
interconnection.
Tektronix Part Number
013-0084-02
Adapter Connectors: BNC male-to-tip plug.
Signal
interconnection.
Tektronix Part Number
175-1178-00
Low-
Capacitance
Alignment
Tool
Length: 1 in. shaft. Bit size: in.
Adjust variable
capacitors.
J.F.D. Electronics
Corp. Adjustment Tool
Number 5284.
Screwdriver
Length: 3 in, shaft. Bit size: %2 in.
Adjust variable
capacitors.
Xcelite R-3323.
1 Requires a TM500-Series Power Module.
2221A User Manual
A-27
