Measuring Signals
Using the Oscilloscope as a Digital Voltmeter - With ground-refer-
enced cursors, you can also use the oscilloscope as a digital voltmeter for
measuring ordinary
DC voltages (Figure 3-34).

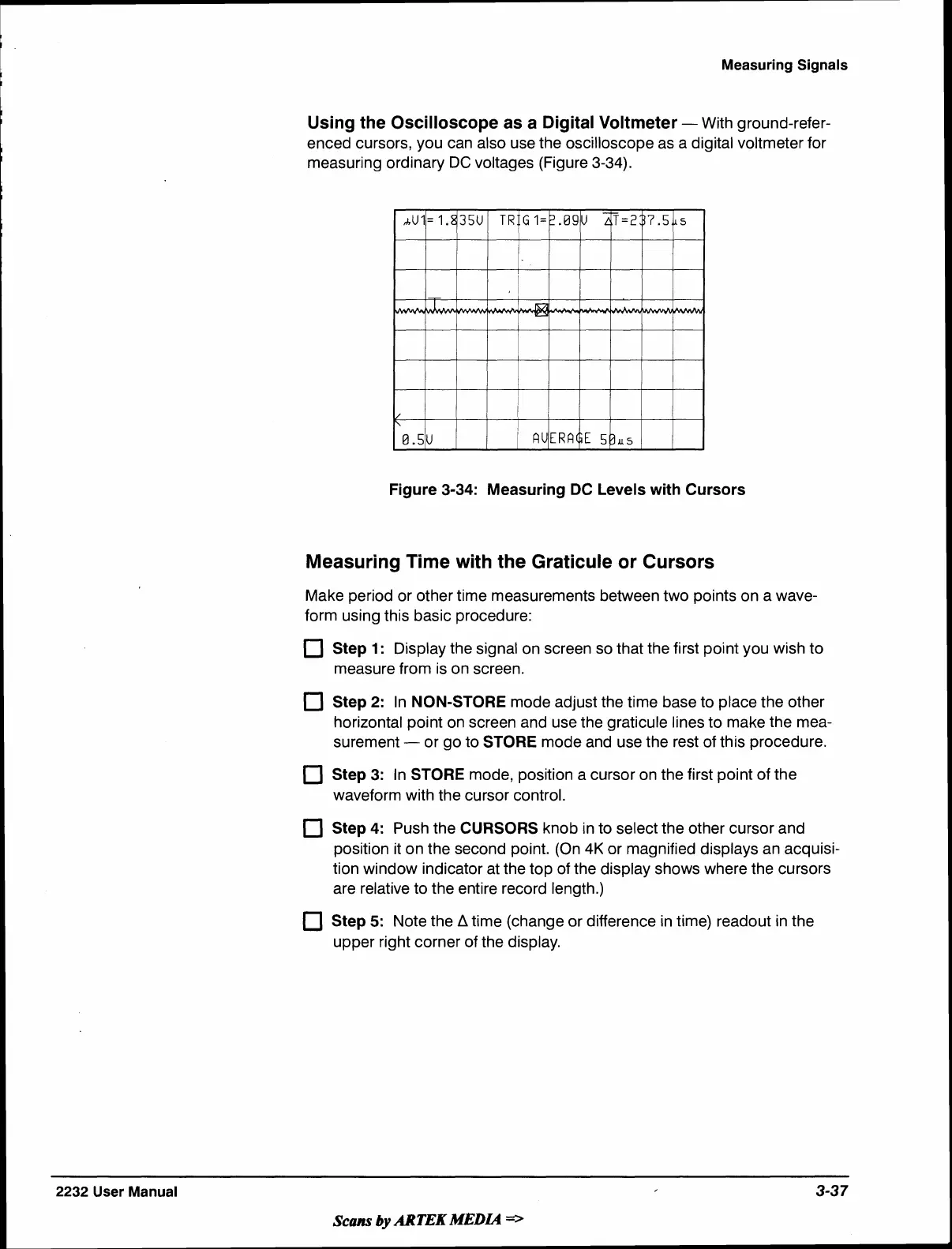

Figure 3-34: Measuring DC Levels with Cursors
Measuring Time with the Graticule or Cursors
Make period or other time measurements between two points on a wave-
form using this basic procedure:
Step 1: Display the signal on screen so that the first point you wish to
measure from is on screen.
Step 2: In NON-STORE mode adjust the time base to place the other
horizontal point on screen and use the graticule lines to make the mea-
surement
- or go to STORE mode and use the rest of this procedure.
Step 3: In STORE mode, position a cursor on the first point of the
waveform with the cursor control.
Step 4: Push the CURSORS knob in to select the other cursor and
position it on the second point. (On 4K or magnified displays an acquisi-
tion window indicator at the top of the display shows where the cursors
are relative to the entire record length.)
Step 5: Note the A time (change or difference in time) readout in the
upper right corner of the display.
2232 User Manual 3-37
