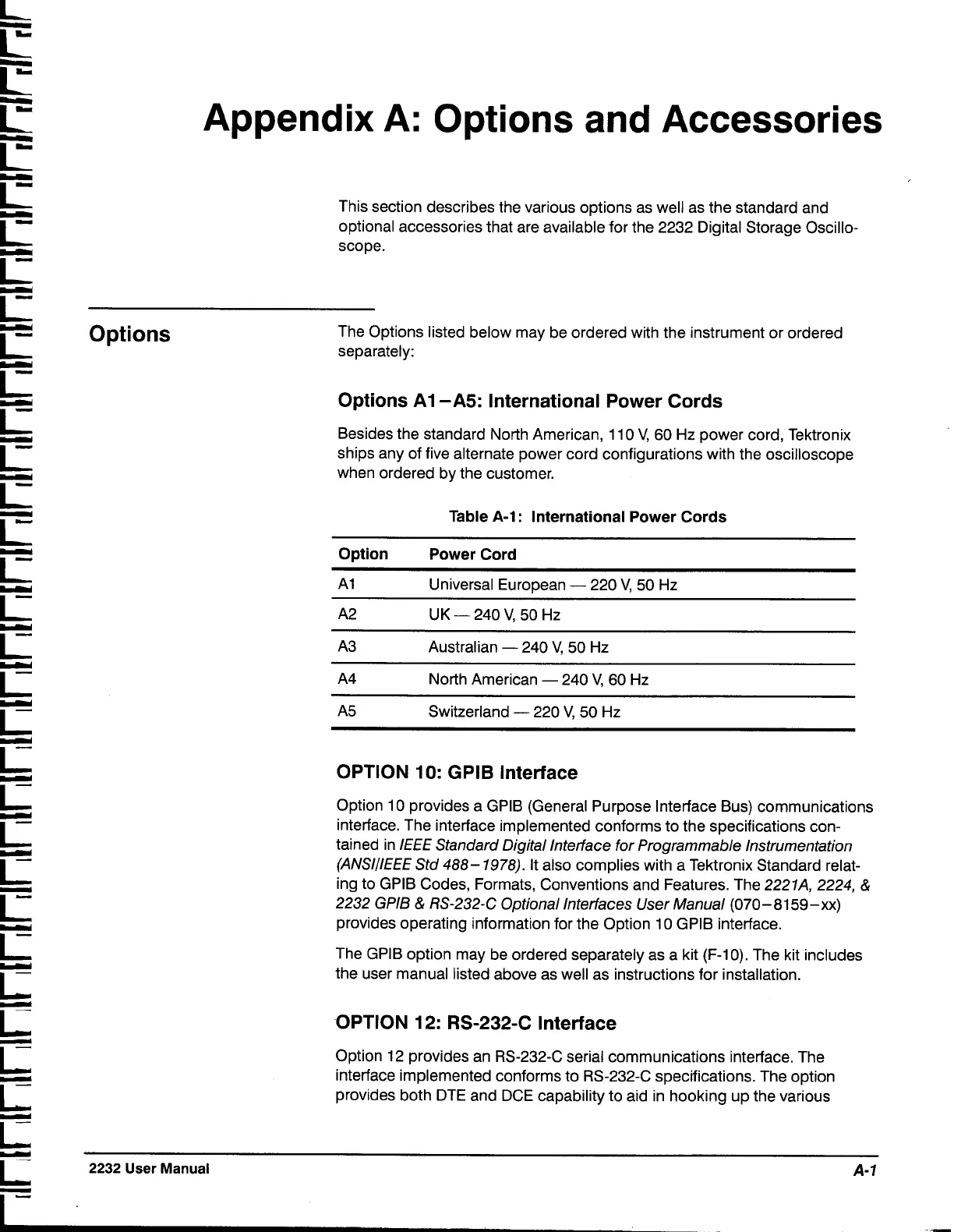

Appendix
A:
Options and Accessories
This section describes the various options as well as the standard and
optional accessories that are available for the 2232 Digital Storage Oscillo-
scope.
Options
The Options listed below may be ordered with the instrument or ordered
separately:
Options A1 -A5: International Power Cords
Besides the standard North American, 11 0
V,
60
Hz
power cord, Tektronix
ships any of five alternate power cord configurations with the oscilloscope
when ordered by the customer.
Table
A-1
:
International Power Cords
Option Power Cord
A1
Universal European
-
220
V,
50
Hz
A2
UK
-
240
V,
50
HZ
- -
A3 Australian
-
240
V,
50
Hz
A4
North American
-
240
V,
60
Hz
A5
Switzerland
-
220
V,
50
Hz
OPTION 10: GPlB lnterface
Option 10 provides a GPlB (General Purpose lnterface Bus) communications
interface. The interface implemented conforms to the specifications con-
tained in
IEEE Standard Digital lnterface for Programmable Instrumentation
(ANSIIIEEE Std 488- 1978). It also complies with a Tektronix Standard relat-
ing to GPlB Codes, Formats, Conventions and Features. The
2221A, 2224,
&
2232 GPlB
&
RS-232-C Optional Interfaces User Manual (070
-
81
59
-
xx)
provides operating information for the Option 10 GPlB interface.
The GPlB option may be ordered separately as a kit (F-10). The kit includes
the user manual listed above as well as instructions for installation.
OPTION 12: RS-232-C lnterface
Option 12 provides an RS-232-C serial communications interface. The
interface implemented conforms to RS-232-C specifications. The option
provides both DTE and DCE capability to aid in hooking up the various
c
2232
User
Manual
A-
1
-
